Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yinuo
-
Model Number:
-
T1220C
-
Product name:
-

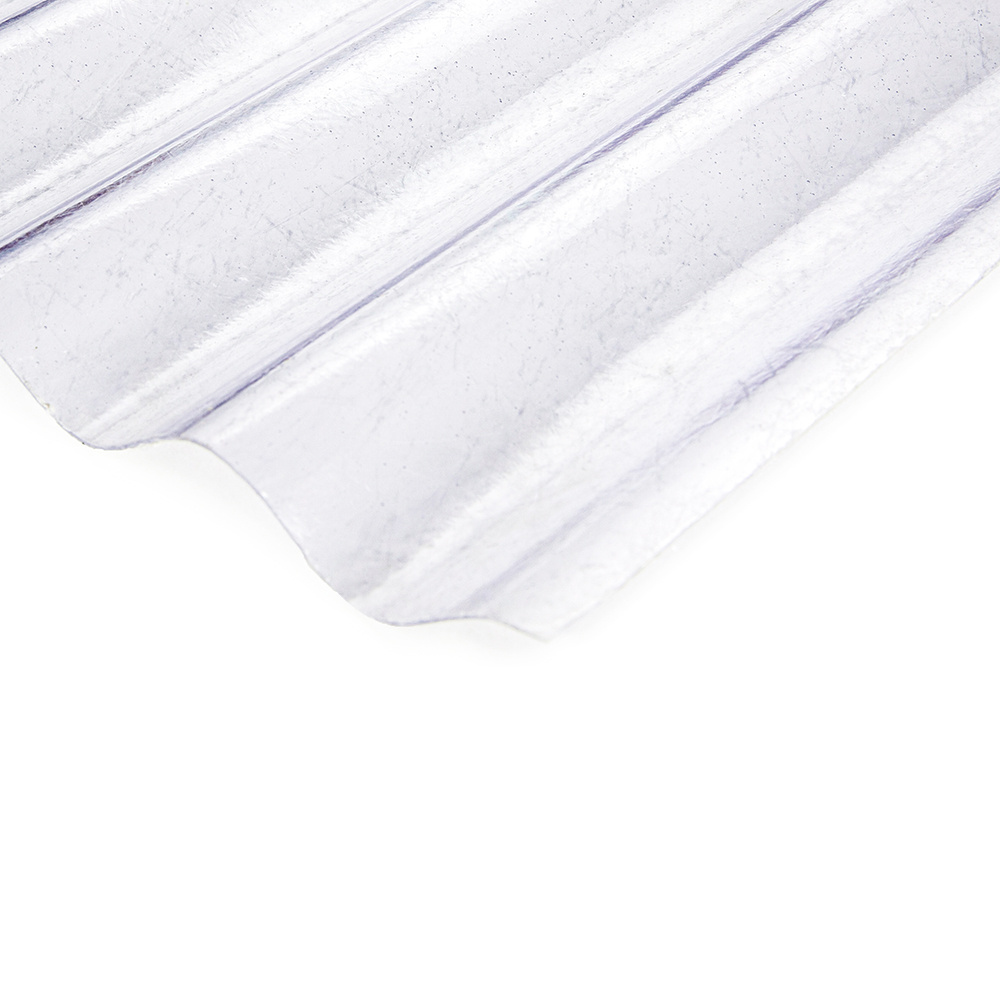

1.2 m Width Transparent FRP Roof Tiles
-
Feature:
-
Up to 85% light, UV Resistance
-
Material:
-
Unsaturated Polyester Resin + Fiberglass
-
Color:
-
Semi-transparent White/Blue/Green or Customized
-
Shape:
-
200 Profile Shapes and Customizable
-
Length:
-
Within 13 Meters Customized
-
Width:
-
1.2-1.4 Meter
-
Thickness:
-
1-4 mm or Customized
-
Relative Density:
-
1.45 g/cm³
-
Tolerance:
-
≤ ±0.2 mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yinuo
-
Model Number:
-
T1220C
-
Product name:
-
1.2 m Width Transparent FRP Roof Tiles
-
Feature:
-
Up to 85% light, UV Resistance
-
Material:
-
Unsaturated Polyester Resin + Fiberglass
-
Color:
-
Semi-transparent White/Blue/Green or Customized
-
Shape:
-
200 Profile Shapes and Customizable
-
Length:
-
Within 13 Meters Customized
-
Width:
-
1.2-1.4 Meter
-
Thickness:
-
1-4 mm or Customized
-
Relative Density:
-
1.45 g/cm³
-
Tolerance:
-
≤ ±0.2 mm
|
Over 14 Years of Experience in FRP Product Manufacturing |
|
Self-built factory, covering an area of 20,000 square meters |
|
ISO 9001 :2015, ISO 14001 :2015, ISO 45001 :2018 certificated |
|
Annual capacity of up to 7 million square meters, leading industry |
|
Strictly enforcing Chinese standards, CE , RoHS testing standards passed |
|
Max roof tiles width 1.7 meters , max panel sheet 3.1 meters |
|
In-house lab, continuously R&D patents formula and improving |
|
Parameter Name |
Value |
|
Surface Layer |
Covered by good quality anti-UV film |
|
Main Component |
70% unsaturated polyester resin |
|
Reinforced Material |
26% alkali-free glass |
|
Thermal penetration rate |
Max 75% (Related to color and thickness) |
|
Temperature Range |
-40 ℃-120℃ |
|
Heat Deflection Temperature |
>180 ℃ |
|
Linear Expansivity |
About 0.000029/ ℃ |
|
UV Radiation Rate |
95% |
|
Tensile Strength |
70 MPa |
|
Tensile Modulus |
8.1 GPa |
|
Bending Strength |
182 MPa |
|
Bending Elastic Modulus |
7.07 GPa |
|
Shear Strength |
84 MPa |
|
Barcol Hardness |
41 |
|
Density |
1.45 g/m ³ |
|
Oxygen Index |
20 |
|
Warranty |
About 10-15 years (Related to thickness) |
