Quick Details
-
Ejection Stroke(mm):
-
85 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HM
-
Voltage:
-
380
-
Dimension(L*W*H):
-
5220*1190*2350
-
Year:
-
2023
-
Weight (KG):
-
7000
-
Power (kW):
-
15
-
Clamping Force (kN):
-
1800kN
-
Open Stroke(mm):
-
350mm
-
Space between Tie Bars(mm):
-
480*450
-
Diameter of Bars(mm):
-
16mm
-
Casting Force(kN):
-
220kN
-
Casting Stroke(mm):
-
350mm
-
Casting Pressure(MPa):
-
180MPa
-
Name:
-
Aluminum Die Casting Machine
-
Application:
-
Metal Casting
-
Chamber:
-
Cold Chamber
-
Suitable metal:
-
Aluminum,Brass
-
Final products:
-
Hardware,Cookware,Electric Parts
-
Advantage:
-
Energy Saving
-
Automatic Grade:
-
Full-Auto
-
Machine color:
-
Custom
-
Injection Weight(AL):
-
2.5KG
-
Machine Weight:
-
7000KG
Quick Details
-
Max.Thickness of Die Block (mm):
-
550 mm
-
Min.Thickness of Die Block (mm):
-
220 mm
-
Ejection Force(kN):
-
100 kN
-
Ejection Stroke(mm):
-
85 mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HM
-
Voltage:
-
380
-
Dimension(L*W*H):
-
5220*1190*2350
-
Year:
-
2023
-
Weight (KG):
-
7000
-
Power (kW):
-
15
-
Clamping Force (kN):
-
1800kN
-
Open Stroke(mm):
-
350mm
-
Space between Tie Bars(mm):
-
480*450
-
Diameter of Bars(mm):
-
16mm
-
Casting Force(kN):
-
220kN
-
Casting Stroke(mm):
-
350mm
-
Casting Pressure(MPa):
-
180MPa
-
Name:
-
Aluminum Die Casting Machine
-
Application:
-
Metal Casting
-
Chamber:
-
Cold Chamber
-
Suitable metal:
-
Aluminum,Brass
-
Final products:
-
Hardware,Cookware,Electric Parts
-
Advantage:
-
Energy Saving
-
Automatic Grade:
-
Full-Auto
-
Machine color:
-
Custom
-
Injection Weight(AL):
-
2.5KG
-
Machine Weight:
-
7000KG

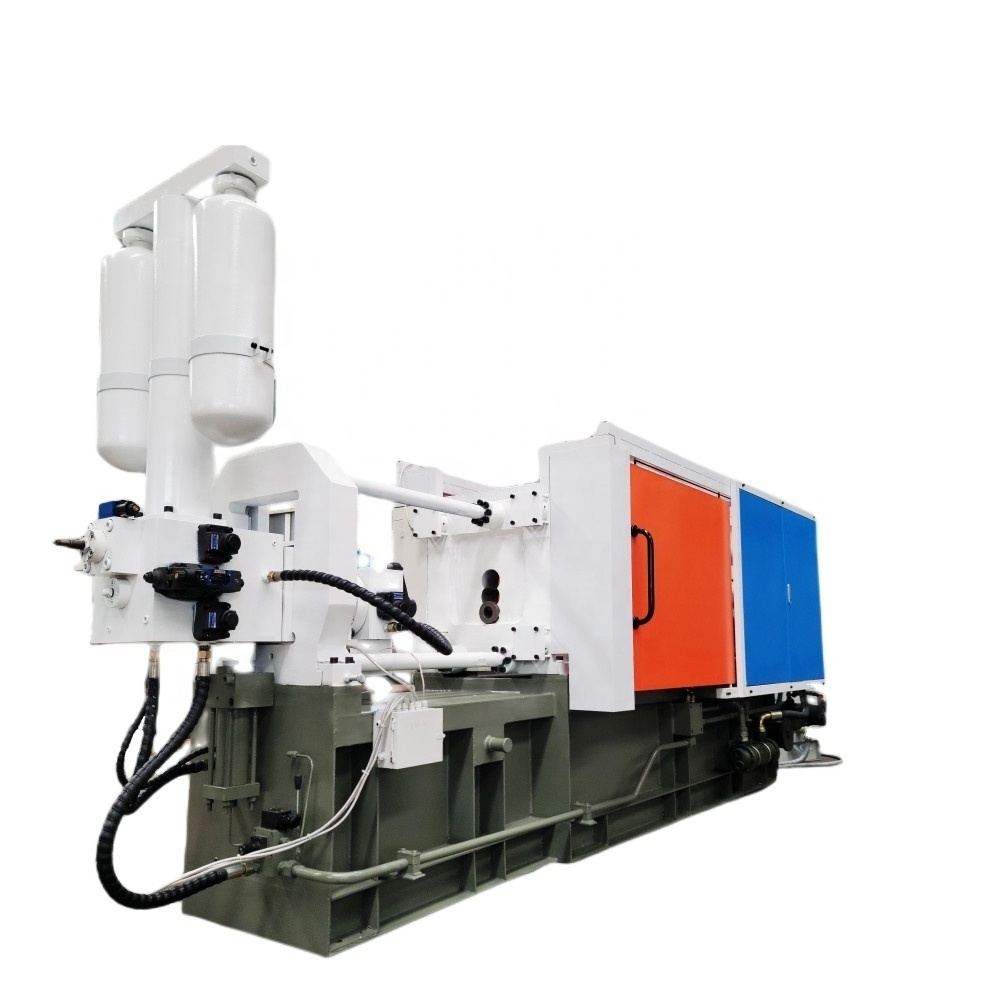

Automation cold Medal diecasting machine manufacturing small business for sale
Cold Medal Die Casting Machine is suitable for some industrial parts, such as aviations, cars, motorcycles, telecommunication meters and household electrical appliances. It is an ideal equipment to produce mass aluminum, magnesium, copper and other non-ferrous metals, but also suitable for producing cast parts which is difficult-casting, high-quality and complex structure.
The machine adopt PLC programmable controller to control transmission system of fluid drive and mould assembly uses expansion structures of two toggles so that to keep steady and reliable mould locking force. Besides, injection system adopts third classis injection speed and first classis pressurized structures.
To guarantee the machine's excellent performance, high accuracy, and high efficiency .Cold Medal Die Casting Machine adopt high quality components from world famous brands like Rexroth,Yuken,Siemens,Kamui etc .
|
Specification |
Unit |
HM-C180 |
|
Die locking force |
KN |
1800 |
|
Inner space between tie bars(H*V) |
mm |
480*450 |
|
Die thickness |
mm |
220-550 |
|
Die stroke |
mm |
350 |
|
Ejection stroke |
mm |
85 |
|
Ejection force |
KN |
100 |
|
Injection force |
KN |
100-220 |
|
Injection position |
mm |
0,-140 |
|
Injection stroke |
mm |
350 |
|
Diameter of pressure chamber |
mm |
50,60,70 |
|
Weight of feeding metal per time(AL) |
Kg |
2.5 |
|
Casting projected area |
Cm2 |
160-679 |
|
Circle period |
S |
7 |
|
Pipe line pressure |
Mpa |
13 |
|
Motor power |
KW |
15 |
|
Machine weight |
Kg |
7000 |
|
Overall dimension(L*W*H) |
m |
5.22*1.19*2.35 |
Q: Are you a factory?
A:
YES!
We are
manufacturer
of the Cold Medal Die Casting Machine.
Our company specialized in manufacturing and exporting die casting machine for
over 20 years
.
Q:What certificate you can provide?
A:We have
CE & SGS
cetificates.
Q:What is the delivery time for the pressure die casting machine?
A: 7 days if the machine in stock.If not,It will takes 20-30 work days according your quantity and required model.
Q:What service you can provide?
A:
We provide one-stop service of die casting project.
We provide machine, automatic robots,furnace,mold etc. What's more, we also help our customer in cost estimation,factory layout,manufacturing technological upgrading etc.
Q:What's the guarantee time for die casting machine?
A: We providing a 12 months' guarantee period for our machine
since the arrival of destination port.
Q:What's after-sale service you will provide?
A: We provide lifetime warranty service for machines. During the warranty period, we provide spare parts that are not artificially damaged free of charge, and after the warranty period expires, we provide damaged parts at the cost price.
Local install&training service are also provided if necessary.
