Quick Details
-
Dimension(L*W*H):
-
5300*2050*2700mm
-
Weight:
-
9000 KG
-
Mobility:
-
yes
-
Product name:
-
Water Well Drilling Rig Machine
-
Keyword:
-
Water Well Drilling Rig
-
Drill rod length:
-
3m/6m
-
Drill pipe diameter:
-
76/89mm
-
Engine:
-
can be choose
-
Walking speed:
-
2.5kw/h
-
Color:
-
Customer Required
-
Application:
-
water well drilling
-
Air consumption:
-
23m3/min
-
Working Pressure:
-
1.7-3.3Mpa
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
5300*2050*2700mm
-
Weight:
-
9000 KG
-
Mobility:
-
yes
-
Product name:
-
Water Well Drilling Rig Machine
-
Keyword:
-
Water Well Drilling Rig
-
Drill rod length:
-
3m/6m
-
Drill pipe diameter:
-
76/89mm
-
Engine:
-
can be choose
-
Walking speed:
-
2.5kw/h
-
Color:
-
Customer Required
-
Application:
-
water well drilling
-
Air consumption:
-
23m3/min
-
Working Pressure:
-
1.7-3.3Mpa
Note：
The listing price without freight fee and drill tool,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list
Product Description

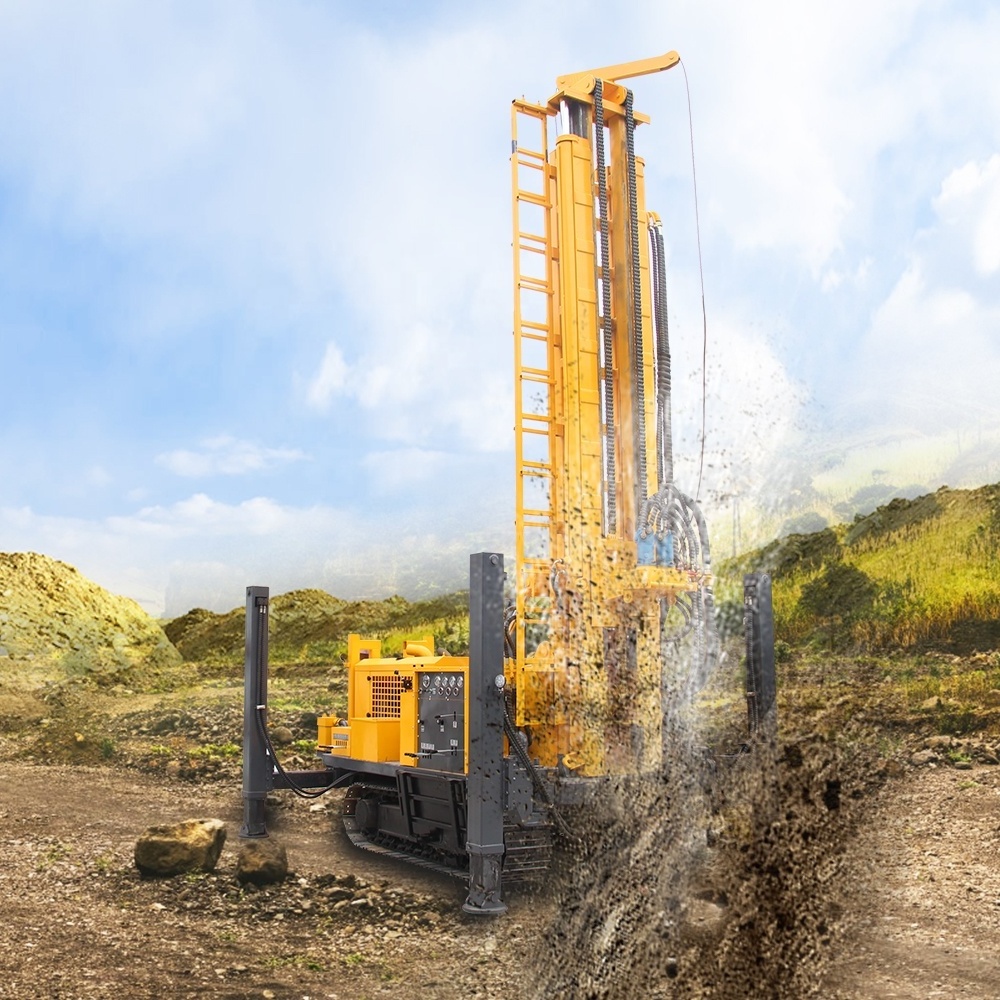

China hengwang factory directly sale top hammer rotary water drilling rig 400m model
Pneumatic Drilling Rig Hengwang pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata. Pneumatic water well drilling machine should be used together with air compressor, it can add mud pump and foam pump. Need to use different drilling tools such as: drill rod, hammer, rock drill bits, etc.
* Drilling rock: 20m ~ 40m / hour
* Drilling depth: 180 m
* Drilling diameter: 130-245 mm
* Motor power: 42Kw
* Competitive price
* Site instruction and installation
*Professional after-sales team
* CE, BV, TUV, ISO
China hengwang factory directly sale top hammer rotary water drilling rig 400m model
This drilling rig needs to be used
with an air compressor.
If you want to buy an air compressor at the same time, please tell us your drilling depth and diameter, and we will give the corresponding recommendation:
Our drilling rig is equipped with
high hydraulic outriggers
. If you need this function, we can provide you with this configuration extra, because it can be convenient for you to install the drilling rig on a truck for long-distance transportation.
China hengwang factory directly sale top hammer rotary water drilling rig 400m model
Product Details
|
Model
|
HQZ-450L
|
|
Total Weight（T )
|
8/10
|
|
Dimensions（mm )
|
5300*2050*2700
|
|
Drilling Diameter（mm)
|
130-400
|
|
Drilling Depth（m)
|
450
|
|
One-time Advance Length of the Drill（mm)
|
3000/6000
|
|
Walking Speed（km/h)
|
6
|
|
Climbing Ability（max )
|
25
|
|
Min.Ground Clearance（mm )
|
300
|
|
Working Air Pressure（Mpa )
|
1.7-3.5
|
|
Air Consumption（m3 /min )
|
17-35
|
|
Main Power（kw)
|
100/6 cylinder
|
|
Rotation（rpm)
|
45-75
|
|
Rotary Torque（N.m )
|
9000-10000
|
Customer feedback
The following images are from customer feedback (Vietnam, Thailand, Chile, Mexico, South Africa, Philippines, Malaysia, Colombia, etc.), We also have a lot of customer feedback videos, if you are interested, contact us
China hengwang factory directly sale top hammer rotary water drilling rig 400m model
Product Configuration
The drilling rig is multifunctional,
with different configurations
suitable for different geologies.Accept customization, any good ideas please contact us, our engineers will help you get what you want, we can also put the platform on a truck mounted chassis
China hengwang factory directly sale top hammer rotary water drilling rig 400m model
Packaging & Shipping
back hammer, impactors, bits and other accessories are packed in plywood cases.
1 set shipped with 20GP;
The complete set with air compressor needs a 40GP;
China hengwang factory directly sale top hammer rotary water drilling rig 400m model
