Quick Details
-
Application:
-
Warehouse/workshop, Warehouse/workshop
-
Rated Lifting Moment:
-
20~100KN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Weight (KG):
-
4000 kg
-
Product name:
-
Single Girder Semi Gantry Crane
-
Overload protetion:
-
Includes
-
Electrical parts:
-
Siemens brand electrical contactors
-
Lifting uint:
-
Wire rope electric hoist
-
Control model:
-
Pendant pushbutton control or Remote control
-
Color:
-
Red, Yellow or other colors
-
Power source:
-
380V, 50Hz, 3phase or other standards
-
Motors:
-
China good quality motors
-
After-sales Service Provided:
-
Online support
Quick Details
-
Rated Loading Capacity:
-
3 Ton, 8 Ton, 5 ton, 10 TON, 2 ton
-
Max. Lifting Height:
-
7.5m, 10M, 6m
-
Span:
-
7.5m~20m
-
Application:
-
Warehouse/workshop, Warehouse/workshop
-
Rated Lifting Moment:
-
20~100KN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Weight (KG):
-
4000 kg
-
Product name:
-
Single Girder Semi Gantry Crane
-
Overload protetion:
-
Includes
-
Electrical parts:
-
Siemens brand electrical contactors
-
Lifting uint:
-
Wire rope electric hoist
-
Control model:
-
Pendant pushbutton control or Remote control
-
Color:
-
Red, Yellow or other colors
-
Power source:
-
380V, 50Hz, 3phase or other standards
-
Motors:
-
China good quality motors
-
After-sales Service Provided:
-
Online support

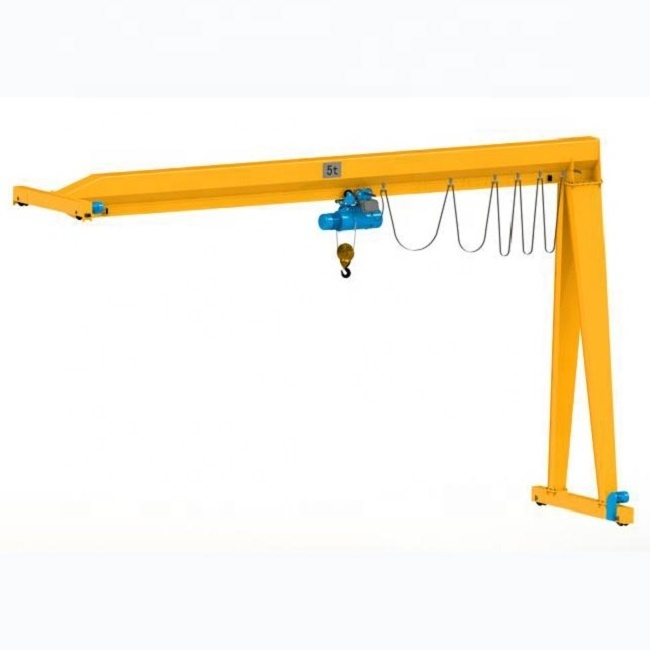

2 ton~10 ton single girder semi gantry Crane:
BMH model single girder
semi gantry crane(half gantry crane)
is developed from MH model gantry crane and LD model overhead crane, it is a kind of track travelling
medium-duty type gantry crane, the one side of beam is traveling on wall mounted track, another side of beam is traveling on ground track
, the capacity from
2t to 10t
, span from 7.5m to 20m, working temperature within -20--+40 centigrade.
This gantry crane is commonly used gantry crane, it be used in outside/inside warehouse for loading/unloading and lifting material.
The control models are pendant pushbutton control or wireless remote control..
If you want to order this gantry crane, Pls tell me the details as follows:
1. The Max. lifting capacity? (Ton)
2. The span of gantry crane?(the distance of rail to rail center)
3. Do you need cantilever at one beam end? if it is, Pls mention the length of it.
4.The Max. lifting height of hook? (or total height of crane)
5. What type meterial will you to lift?
6. The power source standard?(380V, 50Hz, 3phase or others)
|
The general details of single girder semi gantry crane |
|||||
|
Span(rail to rail center) |
10m~20m or others |
||||
|
Cantilevers |
None |
||||
|
Lifting height |
6m, 9m or other height |
||||
|
Capacity |
2t |
3t |
5t |
8t |
10t |
|
Lifting speed(m/min) |
8, 8/0.8 |
8, 8/0.8 |
8, 8/0.8 |
4, 4/0.4 |
7/0.7 |
|
Cross travelling speed(m/min) |
10 or 20 |
10 or 20 |
10 or 20 |
10 or 20 |
10 or 20 |
|
Long travelling speed(m/min) |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
|
Duty Class |
A3/A4 |
||||
|
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||
|
Working temperature |
-20~4 0 °C |
||||
|
Control model |
Pendant pushbutton control or wireless remote control |
||||
1. The crane beam is box frame, it is made by Q235 steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding :
2. The legs are box frame, it is made by Q235 steel, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding :
3. The lifting mechanism(electric hoist) of s ingle girder overhead crane, the gear boxe have hardened and ground helical gears for high efficiency, quite operation and high reliability :
4. The main upward/downward limit switch & second upward limit switch of hoist:
5. The electrical control box & control handle, the electrical contactors are Siemens brand, the control handle has on/off & emergency stop buttons:
6. The packing, transport and shipment of gantry crane:
