Quick Details
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Telhoo
-
Year:
-
2019
-
Power (kW):
-
4
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
PIPE
-
operation:
-
numerical control
-
Material:
-
steel pipe
-
power:
-
hydraulic
-
3 inch pipe bender:
-
3 inch pipe bender
-
Certification:
-
ISO 9001:2000
Quick Details
-
Machine Type:
-

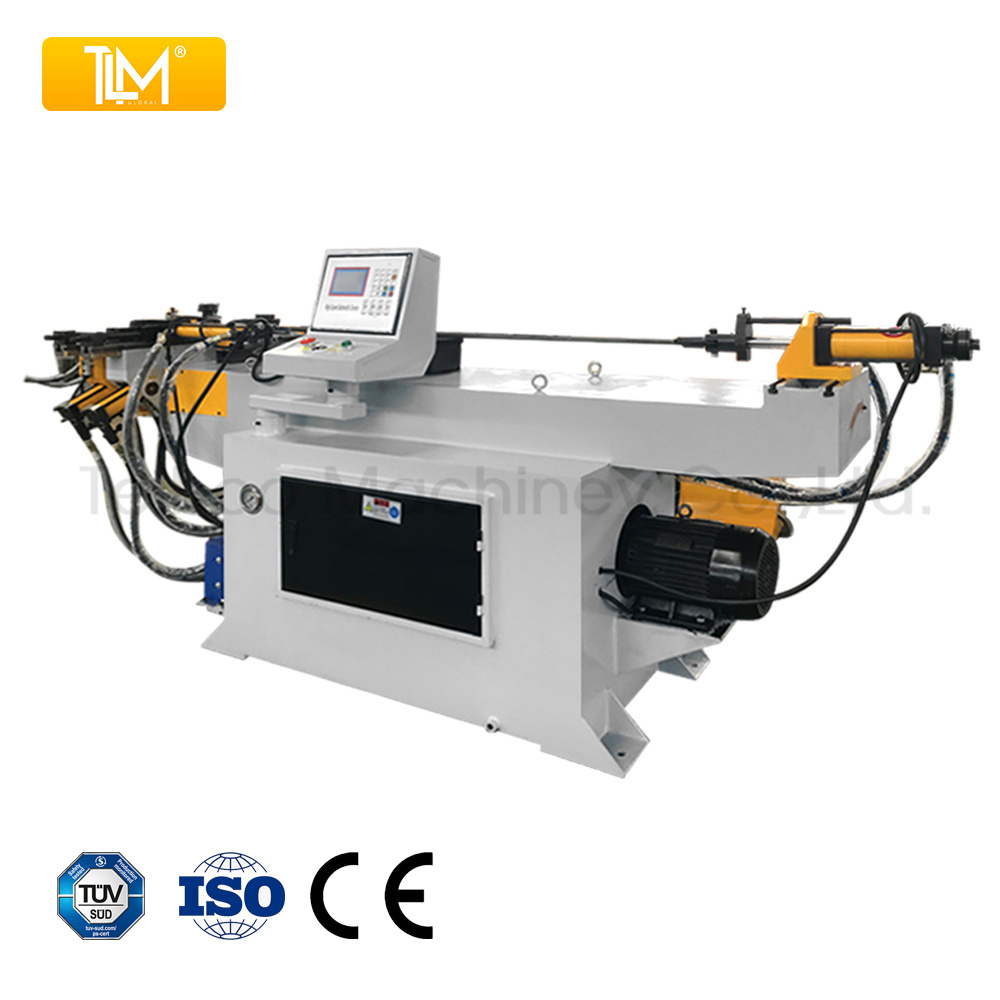

DW38NC, Pipe and Tube Bending Machine
-
Bending Radius (mm):
-
50 - 175
-
Max. Bending Angle (Deg):
-
185
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Telhoo
-
Year:
-
2019
-
Power (kW):
-
4
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Raw Material:
-
PIPE
-
operation:
-
numerical control
-
Material:
-
steel pipe
-
power:
-
hydraulic
-
3 inch pipe bender:
-
3 inch pipe bender
-
Certification:
-
ISO 9001:2000
Product Description
Specification
|
Specification/Model
|
Unit
|
DW38NC
|
Remark
|
|
Max bending capability
|
mm
|
Φ38×2t
|
1. The Minimum bending radius based on the pipe diameter 2.The Max bending radius can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement |
|
Max bending radius
|
mm
|
R175
|
|
|
Min bending radius
|
mm
|
R25
|
|
|
Max bending angle
|
Degree
|
185
|
|
|
Max effective distance of mandrel
|
mm
|
1800
|
|
|
Control System
|
|
NC Control
|
|
|
Max elbow bend pipe
|
Unit
|
16
|
|
|
Max storable sections
|
Unit
|
16×16
|
|
|
Motor power
|
KW
|
4
|
|
|
Max. Hydraulic Pressure
|
Mpa
|
14
|
|
|
Hydraulic System Control
|
|
Electromagnetic Valve
|
|
|
Oil Tank Capacity
|
L
|
150
|
|
|
Size
|
Cm
|
260×73×123
|
|
|
Weight of Machine
|
Kg
|
≈1200
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
