Quick Details
-
Voltage:
-
110v/240v/380v/420v 50/60hz, 220v 50hz/60hz
-
Dimension(L*W*H):
-
90-65-60cm
-
Weight:
-
125kg
-
Working Pressure:
-
200bar &250bar
-
Product name:
-
5m3/h Domestic CNG compressor for car
-
Application:
-
Filling Cylinder
-
Usage:
-
Compressed Gas
-
Capacity:
-
3.5m3/hour
-
Power:
-
2.2kw
-
Pressure:
-
200bar 250bar
-
Drive method:
-
Belt Driven
-
Cooling:
-
A-air Cooling
-
Noise:
-
65dB(A)
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DMC
-
Model Number:
-
DMC3 DMC5
-
Voltage:
-
110v/240v/380v/420v 50/60hz, 220v 50hz/60hz
-
Dimension(L*W*H):
-
90-65-60cm
-
Weight:
-
125kg
-
Working Pressure:
-
200bar &250bar
-
Product name:
-
5m3/h Domestic CNG compressor for car
-
Application:
-
Filling Cylinder
-
Usage:
-
Compressed Gas
-
Capacity:
-
3.5m3/hour
-
Power:
-
2.2kw
-
Pressure:
-
200bar 250bar
-
Drive method:
-
Belt Driven
-
Cooling:
-
A-air Cooling
-
Noise:
-
65dB(A)
Refuel your love NGV at home

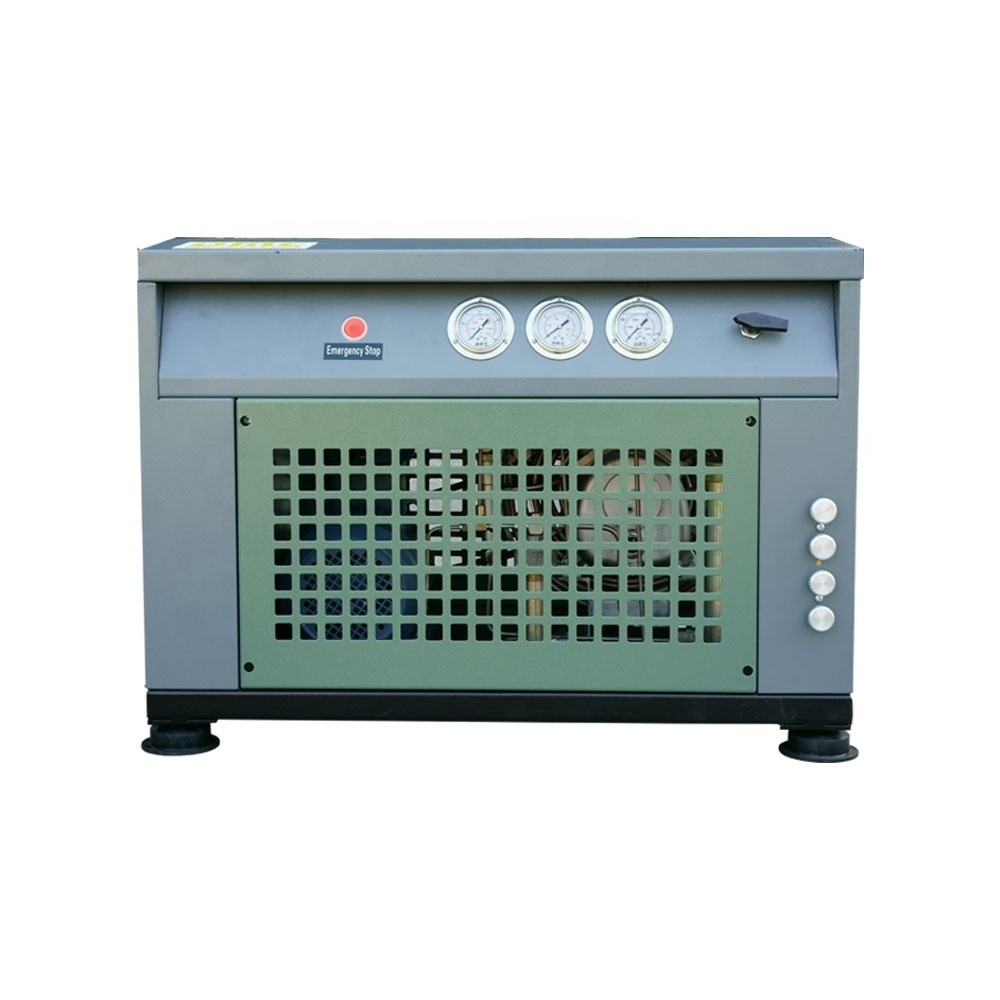

DMC 3 home CNG filling station is an ideal gas filling tools for your love cars , it can be so easy to use,just connect to your domestic gas pipeline and you can fill your love car at home.It is not only used indoors,but is outdoors.
Application to
-- Car,van,truck,Pickup,fork-lift , commercial vehicle , etc
-- Small fleets of taxi service , Garage,driving school etc
-- Small filling gas station
--Personal,Family,or Commercial
Technical parameters
|
|
CNG compressor for home | CNG compressor for home |
| model | DMC-3 | DMC-5 |
| capacity | 3.5 Nm3/h | 5Nm3/h |
| pressure | max 250bar 3600psi | max 250bar 3600psi |
| engine power | 2.2kw/3hp 220v/1/50-60hz | 3kw/4hp 380v/3/50-60hz |
| tank | to fill 50-150L CNG tank, auto stop | to fill 50-150L CNG tank, auto stop |
Main feature
1.3-stage,air-cooled,reciprocating piston CNG compression.
2.Specially treated alloy cylinder and piston.
3.Flame-proof electric motor and single-phase motor.
4.2-stage filter.
5.Anti-shock pressure gauge.
6.Filter is made by seamless aluminum alloy, outer can endure 550bar pressure.
7.Oil splash lubrication.
8.High-strenght nylon cooling fan assembly.
9.Terminal safety valve pressure stepless adjustment.
10.High temperation resistance plastic blowing steel frame.
11.Stainless inter-cooler and after cooler.
12.Manual condensate drain system.
13.Precision air-intake filter and oil, water separator.
14.High pressure safety valve for over load protection.
15.5M charging hose with quick filling nozzle.
16.Electric control box is 5Meter away from the compressor.
17.one or two outlet for options.
More choices
packaging
Totally enclosed wooden package
make no damage for compressor during transportation
shipping
you can choose by sea or by air according your requirement
we can supply FOB,CIF.CNF price.
