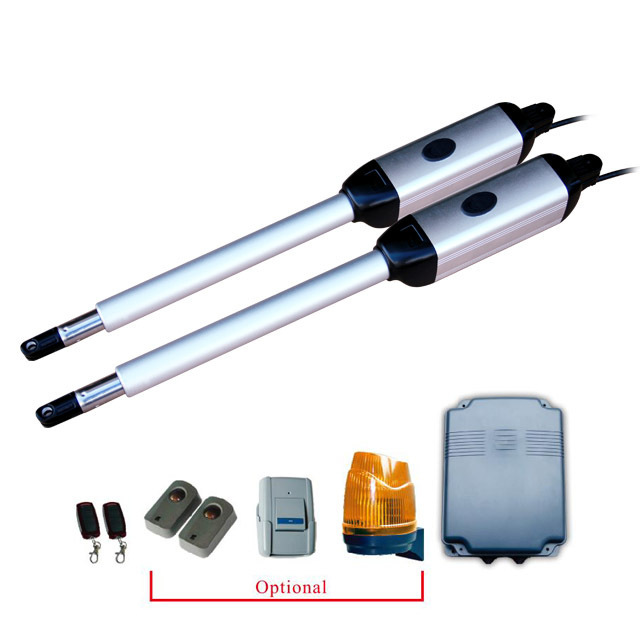

Safe: BS-PK Swing Gate opener meets the highest standard in safety.
Reliable:Electro-mechanical automated gate opener is time-tested design.
Convenient: Quick, Safe and Secure Manual Releas-A release key that can be used should the power fail or the backup battery is not charged.
|
Model:
|
BS-PK03
|
|
Supply voltage:
|
24VDC
|
|
Power of motor:
|
40W
|
|
Rotational speed:
|
3200RPM
|
|
Rod's running speed:
|
1.6cm/s
|
|
Rod's max travel:
|
300mm
|
|
Max leaf length:
|
3m x 2
|
|
Max single-leaf weight:
|
300KG
|
|
Environment temperature:
|
-20℃~+50℃
|
|
Protection class:
|
IP55
|
|
Functions:
1.Open and Close the gate by remote control;
2.Auto closing when the gate is open, Time duration can be programmed from 0 to 99s;
3.Auto stop when the running gate meets with resistance;
4.The force of motor can be programmed;
5.It is selectable to control 1 leaf or 2 leaves;
6. It can be connected with 24V storage barrery.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power supply:
|
220VAC 50Hz
|
|
|
Transformer:
|
24V 150W
|
|
|
Accessories max loaded:
|
24VDC 500mA
|
|
|
Max load:
|
2×80W/24VDC
|
|
|
Environment temperature:
|
-20℃~+55℃
|
|
|
Protection fuse:
|
10A
|
|
|
Running time protection:
|
Adjustable
|
|
|
Auto closing delay time:
|
Adjustable
|
|
|
Force:
|
Adjustable
|
|
|
Protection class:
|
IP55
|
|
|
Trouble |
Cause |
Shooting |
|
M otor can not work |
1,No power supply 2,Break fuse 3,Surpass load |
1,Check power supply 2,Change fuse 3,Check if any barrier on the track |
|
Can open but can not close |
1,Photocell is not connected properly 2,Photocell beam is block off 3,Photocell is broken |
1,Connect the photocell 2,Clear out obstacle 3,Change a new device |
|
Can open (close) but can not close (open) |
1,Position of limit switch is not correct 2,Limit switch is damaged |
1,Adjust position 2,Change limit switch |
|
Can not locate accurately |
1,Distance of limit switch is too large 2,Limit switch is wrong 3,Magnetic-stell ’ s position is wrong |
1,Adjust position of limit switch 2,Change limit switch 3,Re-adjust the position |
|
Release device is doesn ’ t work |
1,Operating handle is broken 2,Worm gears are jammed |
1,Change the handle 2,Rotate the pinion |
|
Push the “ OPEN ” button but the gate close |
Whether “ +MOTOR- ” wires are connected wrong |
Connect correctly according to wiring diagram |
|
Motor can turn but can not work |
1, Compression spring of clutch is dead 2, Gear box is released |
1, Change the spring 2, Couple the worm gear |
