Quick Details
-
Brand Name:
-
DAYTAI
-
Use:
-
FTTH CATV and Telecommunication networks
-
Warranty Time:
-
2 years
-
Product Name:
-
Passive FTTH WDM (CATV+PON) Optical Receiver
-
Model:
-
DT-PORW-ST
-
Input Optical Power:
-
-10 ~ +2dBm
-
Optical Return Loss:
-
>45db
-
Optical Receiver Wavelength:
-
1550±10nm
-
Optical Fiber Type:
-
Single Mode
-
Frequency Range:
-
40-1000MHZ
-
Dimensions:
-
110*63*23mm
-
N.W:
-
0.129KG
-
MOQ:
-
5 pcs
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
Optical Receiver
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Use:
-
FTTH CATV and Telecommunication networks
-
Warranty Time:
-
2 years
-
Product Name:
-
Passive FTTH WDM (CATV+PON) Optical Receiver
-
Model:
-
DT-PORW-ST
-
Input Optical Power:
-
-10 ~ +2dBm
-
Optical Return Loss:
-
>45db
-
Optical Receiver Wavelength:
-
1550±10nm
-
Optical Fiber Type:
-
Single Mode
-
Frequency Range:
-
40-1000MHZ
-
Dimensions:
-
110*63*23mm
-
N.W:
-
0.129KG
-
MOQ:
-
5 pcs

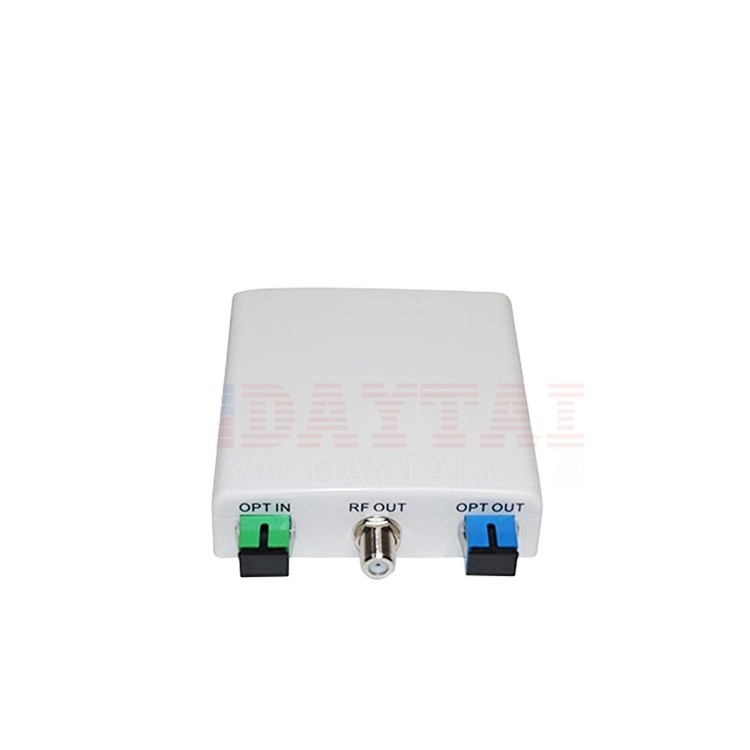

Detailed Images
Product Description
AGC CATV Fiber Node Receiver Passive Mini Optical Node Optical Receiver FTTH Node
Passive FTTH WDM (CATV+PON) Optical Receiver for Digital TV,ilnput Optical Power:-10 ~ +2dBm,Passive FTTH WDM (CATV+PON) Optical Receiver for Digital TV,input Optical Power:-10 ~ +2dBm,Optical Return Loss:>45db,Optical Receiver Wavelength:1550±10nm,Optical Fiber Type:Single Mode,Frequency
Range:40-1000MHZ,Optical in and Optical out is SC/APC
Connector.
★Features
⊙No Power Required
⊙Optical Interface for data
⊙Designed for triple play FTTH
⊙Much smaller size and very easy install
⊙Frequency range 40-1000MHz For CATV Network
⊙ RF Interface for CATV End-Users (M-Male or F-Female )
⊙Built-in WDM, suitable for single-fiber triple wavelength system,
⊙RFTV operating wavelength 1550nm, pass wavelength 1310/1490nm,
can conveniently connect the ONU of GEPON
Specifications
|
Item
|
Unit
|
Description
|
|
|
Remark
|
|||||
|
Customer Interface
|
|
|
|
|
|
|||||
|
RF Connector
75Ω "F-Female" connector |
|
75Ω "F-Female" connector
|
|
|
|
|||||
|
Optical Connector
|
|
|
SC/APC
|
Can be Customized
|
|
|||||
|
Input Optical Power
Optical Return Loss |
|
dBm
|
-10 ~ +2
|
Digital TV
|
|
|||||
|
Optical Return Loss
|
|
dB
|
>45
|
|
|
|||||
|
Operating Wavelength
|
|
nm
|
1550±10
|
|
|
|||||
|
Responsivity
|
|
A/W
|
≥0.9
|
1310~1490nm
|
|
|||||
|
Optical Fiber Type
|
|
|
Single Mode
|
|
|
|||||
|
Frequency Range
|
|
MHz
|
40-1000
|
|
|
|||||
|
Flatness
|
|
dB
|
±1dB
|
|
|
|||||
|
RF Output Level
|
|
dBuV
|
≤62
|
-1dBm input power
|
|
|||||
|
Output Return Loss
|
|
dB
|
≥15
|
|
|
|||||
|
Output Impedance
|
|
Ω
|
75
|
|
|
|||||
|
C/N
|
|
dBc
|
＞50
|
-1dBm input power
|
|
|||||
|
Power Input Voltage
|
|
VDC
|
0
|
|
|
|||||
|
Power Consumption
|
|
W
|
N/A
|
|
|
|||||
|
Dimensions
|
|
mm
|
110*63*23mm
|
|
|
|||||
|
Net weight
|
|
KG
|
0.129
|
|
|
|||||
