Quick Details
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hualian
-
Dimension(L*W*H):
-
1540*650*1030mm
-
Weight:
-
171kgs
-
Print Type:
-
Solid-ink
-
Sealing Power(W):
-
300*2
-
Printing Heating Power(W):
-
40*2
-
Speed(m/min):
-
0-12
-
Sealing Width(mm):
-
10
Quick Details
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hualian
-
Dimension(L*W*H):
-
1540*650*1030mm
-
Weight:
-
171kgs
-
Print Type:
-
Solid-ink
-
Sealing Power(W):
-
300*2
-
Printing Heating Power(W):
-
40*2
-
Speed(m/min):
-
0-12
-
Sealing Width(mm):
-
10

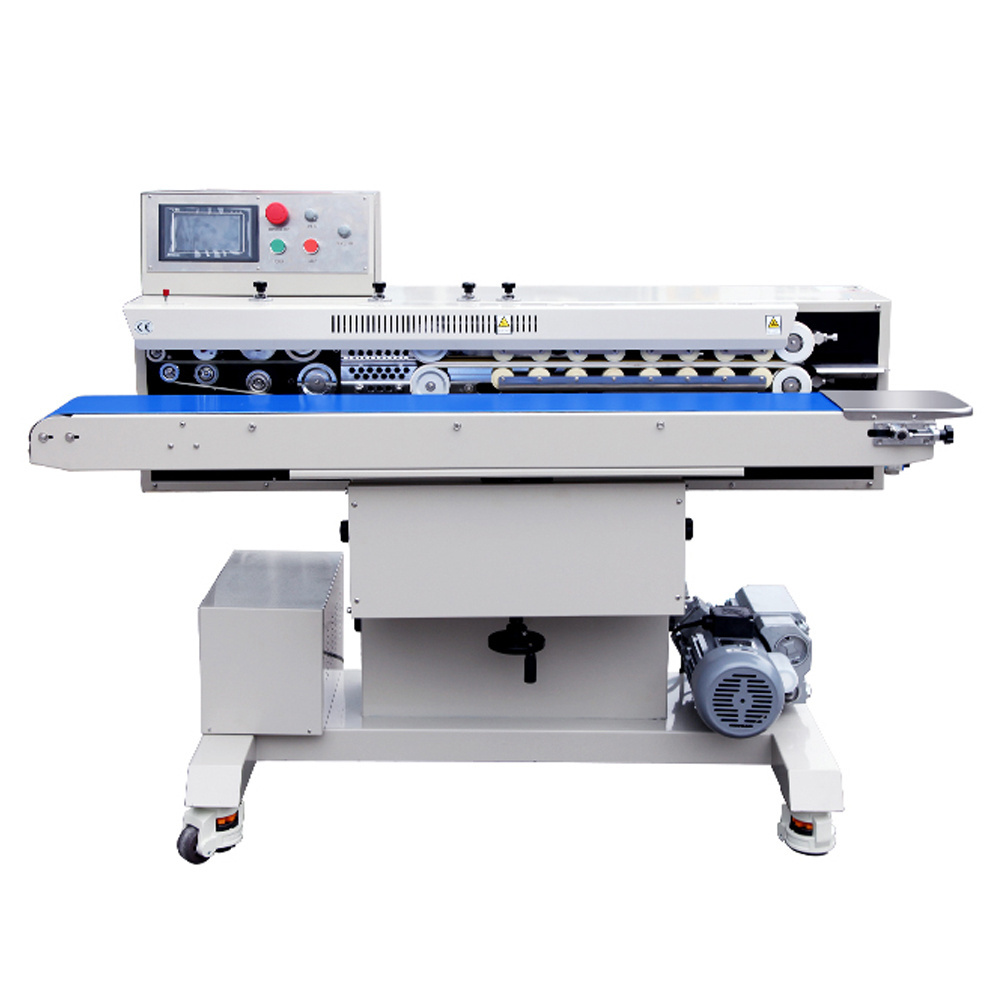

HU ALIAN Packaging Machine Seal(FRM-1120WH)
Description:
1.FRM-1120WH can seal all kinds of heat sealable materials, which adopts constant temperature control system and stepless speed adjusting transmission mechanism.
2.Both temperature and height of conveyor table are adjustable.
3.The machine works with solid-ink coder to print the colored labels while sealing.
4.They are able to print at high speed with instant dry and highly legible letters that have a good adhesion property.
5.Various colors are selectable.
6.Counting device is optional.
7.The height of both seal head and conveyor table are adjustable to accommodate a wide range of applications.
8.It can also be integrated into the production line.
9.It is equipped with four kinds of air conditioning modes, i.e. inflation, air extraction, nitrogen filling and inflation after air extraction, with powerful functions.
Parameters:
| FRM-1120WH | |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Motor Power (W) | 100 |
| Sealing Power (W) | 300×2 |
| Printing Heating Power(W) | 40×2 |
| Speed(m/min) | 0-12 |
| Seal Width(mm) | 10 |
| Temperature Range(℃) | 0-300 |
| Printing Type | Solid-Ink Roller |
| Distance from Sealing Center to Conveyor (mm) | 20-28 |
| Conveyor Size(L×W )(mm) | 1540*205 |
| Max. Conveyor Load for Single Bag(kg) | 2.5 |
| Overall Conveyor Load(kg) | 7.5 |
| External Dimensions(L×W×H) (mm) | 1540*650*1030 |
| Net Weight (kg) | 171 |
