Quick Details
-
style:
-
1CH Passive Power Video PVD Video balun for CCTV Camera
-
material:
-
ABS+Copper
-
certificate:
-
CE ROHS FCC
-
transmission distance:
-
600m-900m
-
Using UTP cable:
-
CAT 5/RJ45
-
Balun Type:
-
passive
-
Protection:
-
Lightning Protection
-
UTP Port:
-
Terminal Block
-
Power:
-
not required
-
Conector:
-
BNC balun
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JINDA
-
Model Number:
-
JD79783
-
style:
-
1CH Passive Power Video PVD Video balun for CCTV Camera
-
material:
-
ABS+Copper
-
certificate:
-
CE ROHS FCC
-
transmission distance:
-
600m-900m
-
Using UTP cable:
-
CAT 5/RJ45
-
Balun Type:
-
passive
-
Protection:
-
Lightning Protection
-
UTP Port:
-
Terminal Block
-
Power:
-
not required
-
Conector:
-
BNC balun

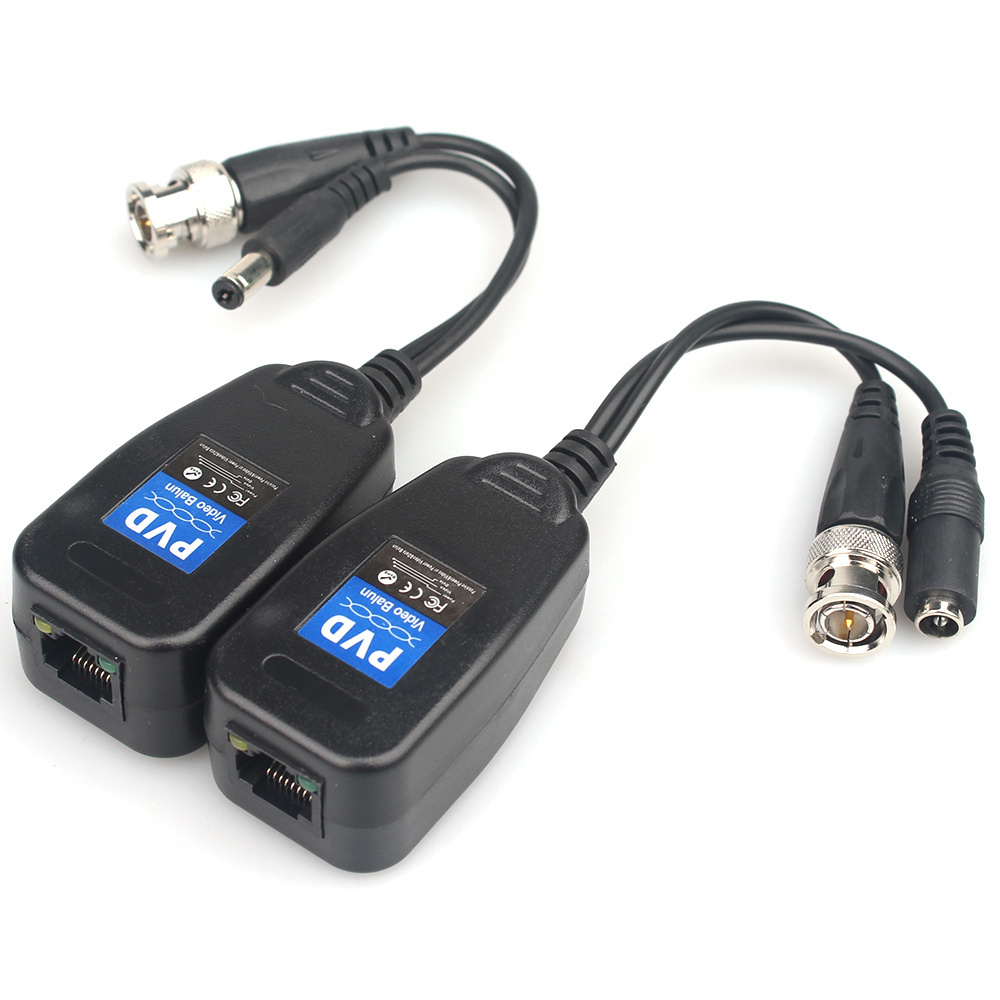

1CH Passive Power Video PVD Video balun for CCTV Camera
Feature:
Features:
Compatible with all HD-CVI, HD-TVI, HD-AHD
Up to 430m for 720P CVI Cameras
Up to 250m for 1080P CVI Cameras
Up to 250m for 720P/1080p TVI Cameras
Up to 330m for 720P AHD camera
NTSC, PAL, and SECAM video formats
No power required
60dB cross talk and noise immunity.
Compact size and easy installation
Built-in transient suppression protection
Technical Specifications
Frequency response: DC to 60Mhz
Attenuation: 0.5dB type
CMRR: 60dB
Surge protection:4KV
ESD:8KV
Connectors: Male BNC and ¡°Press-Fit¡±terminal blocks
Impedance: BNC: 75ohms
Terminal: 100ohms
Working Temperature: -10°C to +70°C
Storage Temperature: -30°C to + 70°C
Humidity : 0 to 95%
Dimension: 39mm * 16mm * 19mm (excluding connectors)
Material: ABS Plastic
Packing example
|
OEM/ODM |
welcomed |
|
MOQ |
The MOQ is flexible and we accept small order in the first time as trial order. |
|
Shipping |
by sea,by air,Fedex,UPS,UHL,TNT |
|
packing |
polybag,PP bag,PE bag,PVC bag with card,blister ,parper box |
|
Trade term |
EXW factory,FOBshanghai,Ningbo,shenzhen, CIF your harbour |
|
Samples |
available |
|
Delivery Time |
10-15days, 20'container 20days,40'container-30days |
|
Payment |
30% deposit; and 70% paid by BL coppy |
|
Payment Method |
L/C, T/T, WESTERN UNION, MONEYGRAM,PAYBal |
|
Certificate |
CE/ISO9001/ROHS REACH/CE |
| Warranty | 3-5years |
| Quality control | 100% quality 36hours lasting lightup test. High Voltage test. |
| Advantage |
