Quick Details
-
Dimension(L*W*H):
-
3300*1880*2100 mm
-
Weight:
-
2400 KG, 2400kg
-
Air capacity:
-
16-15 m³/min
-
Marketing Type:
-
New Product 2022
-
Name:
-
diesel screw air compressor
-
Color:
-
Orange
-
Air Consumption:
-
16-15 m³/min
-
Diesel Power:
-
Yuchai 180HP
-
Exhaust Interface:
-
G1 1/2*1, G3/4*1
-
Dimension:
-
3300*1880*2100 mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Model Number:
-
KSCY-570/12-550/15
-
Dimension(L*W*H):
-
3300*1880*2100 mm
-
Weight:
-
2400 KG, 2400kg
-
Air capacity:
-
16-15 m³/min
-
Marketing Type:
-
New Product 2022
-
Name:
-
diesel screw air compressor
-
Color:
-
Orange
-
Air Consumption:
-
16-15 m³/min
-
Diesel Power:
-
Yuchai 180HP
-
Exhaust Interface:
-
G1 1/2*1, G3/4*1
-
Dimension:
-
3300*1880*2100 mm
Product Description
Design Characteristics of Screw Rotor Profile:
▶ It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.
▶ It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.
▶ It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.
▶ It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.
▶
Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.
▶ It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.
▶ It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.
Specification
|
Product Name
|

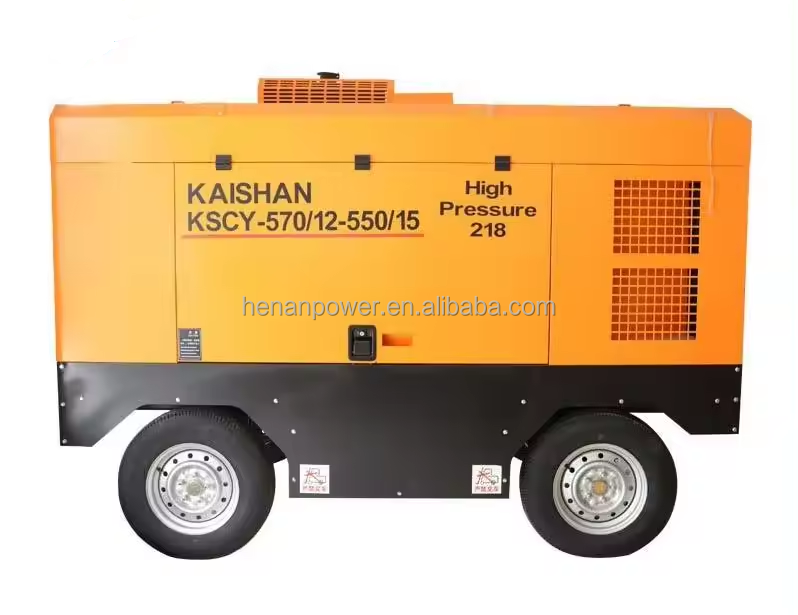

Diesel screw air compressor KSCY-570/12-550/15
|
|
|
Air Capacity (m³/min)
|
16-15
|
|
|
Working pressure (MPa)
|
1.2-1.5
|
|
|
Weight (KG)
|
2400
|
|
|
Dimensions (mm)
|
3300×1880×2100
|
|
|
Diesel Engines
|
|
|
|
Manufacturer
|
YuChai 180HP
|
|
|
Engines Type
|
Vertical,In-line,Water cooling
|
|
|
Inhalation method
|
Turbo charger inter cooler,Common rail
|
|
|
Air Compressor
|
|
|
|
Working pressure
|
1.2-1.5 Mpa
|
|
|
Supply valve Specification × quantity
|
G1 1/2×1,G3/4×1
|
|
Product advantages
Main Features:
Automatic gas volume control system
According to the usage pressure, the air volume adjustment device automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine. Ensure a perfect match between gas supply and consumption, in order to achieve optimal results with the lowest fuel consumption.
Low noise operation
Silent outer cover design, low operating noise, and more environmentally friendly machine design
S
pecial engine with strong power
Equipped with heavy-duty specialized diesel engines such as Yuchai and Cummins, achieving the best combustion state throughout the entire range of engine operation, the product has higher reliability, stronger power, and better fuel economy.
