Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinda Machinery
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
3*1*1.5m
-
Weight:
-
4000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine name:
-
Full automatic band saw cutter toilet paper cutting equipment
-
Working Speed:
-
80~100cuts/min
-
Output paper:
-
Toilet Paper
-
Function:
-
Cutting
-
cutting blade size:
-
3850*40*0.6
-
Application:
-
Tolite Paper Roll Cutting Machine
-
Usage:
-
Paper Making Mill
-
Automatic Grade:
-
Full-Automatic
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
80~100cuts/min
-
Max. workable width:
-
3000mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Xinda Machinery
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
3*1*1.5m
-
Weight:
-
4000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine name:
-
Full automatic band saw cutter toilet paper cutting equipment
-
Working Speed:
-
80~100cuts/min
-
Output paper:
-
Toilet Paper
-
Function:
-
Cutting
-
cutting blade size:
-
3850*40*0.6
-
Application:
-
Tolite Paper Roll Cutting Machine
-
Usage:
-
Paper Making Mill
-
Automatic Grade:
-
Full-Automatic
Product Application

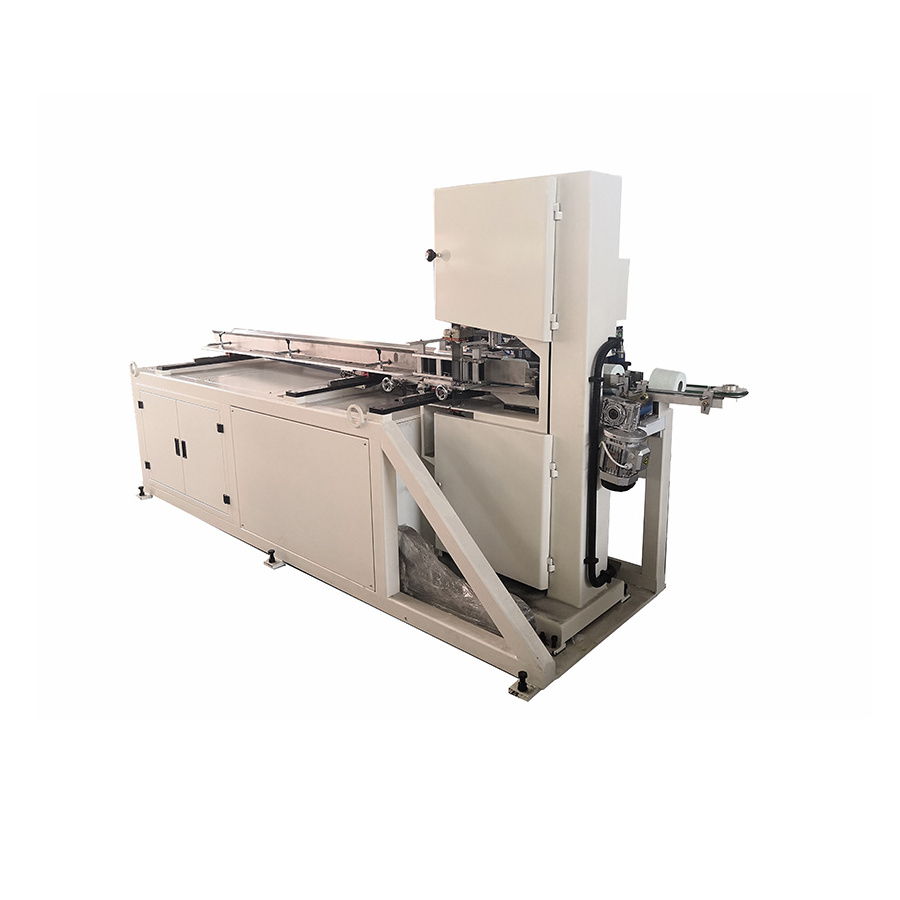

Full automatic band saw cutter toilet paper cutting equipment
The transducer independent driver is used in the main motor;
1、When the paper can not be cut down,the equipment will automatically stops and gives an alarm;
2、The high precision servo system is used in the feed motor servo system,to ensure the quality of the finished product;
3、The equipment automatically calculate the quantity of the finished product being cut;according to the raw material and the
length of the finished product;
4、When data input is incorrect,the equipment breaks off and prompts to adjust on the interface;
5、The cut paper head and paper end can be automatically sorted;
6、Cut with knife is used in the equipment,which reduce the use cost of the user;
7、The automatic sharpening knife system is used in the equipment,can adjust the sharpening knife system according the requirement
of paper being cut,which increase the cutting life;
8、The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
Technical data:
2. utting speed 80～100cuts/min
3. cutting log channel single channel
4. cutting blade band saw blade
5. cutting blade size 3850*40*0.6
6. log length ≦2850mm(it can be made according to customer request)
7. tolerance ±1.5mm
8. cutting length ≦300mm
9. cutting diameter 70-130mm
10. power supply 5kw 3 phase 4line 380V 50HZ
|
Packaging
|
|
|
|
Size
|
0.8 (L) * 1.5 (W) * 2.3(H)
|
|
|
Weight
|
4.0T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
A: ① Good quality of machine with reasonable price.
② Good service: Any question from customer will be reply within 24 hours. For all the machines we sell, we will offer one-five
years guarantee for free and all life maintenance.
③ We will also send you a DVD for free. It will contribute a lots to the operation of the machine
④ After the machines arrive, the sellers shall send technician to install the production line(depends on you request)
Q: How long is your delivery time?
A: Generally it is 5-60 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
