Quick Details
-
Size:
-
12.38x2.48x1.55m
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customized Color
-
Tare Weight:
-
6.5 tons
-
Usage:
-
Container transport
-
King pin:
-
2.00 or 3.5 inch bolt in king pin
-
Landing Gear:
-
28ton/pc
-
Main beam:
-
Q345B
-
Rim:
-
9.0-20*12pcs 90#
-
Tire:
-
12R22.5*12pcs
-
Lead Time:
-
7 days
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
Yun Cheng
-
Size:
-
12.38x2.48x1.55m
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customized Color
-
Tare Weight:
-
6.5 tons
-
Usage:
-
Container transport
-
King pin:
-
2.00 or 3.5 inch bolt in king pin
-
Landing Gear:
-
28ton/pc
-
Main beam:
-
Q345B
-
Rim:
-
9.0-20*12pcs 90#
-
Tire:
-
12R22.5*12pcs
-
Lead Time:
-
7 days
Products Description

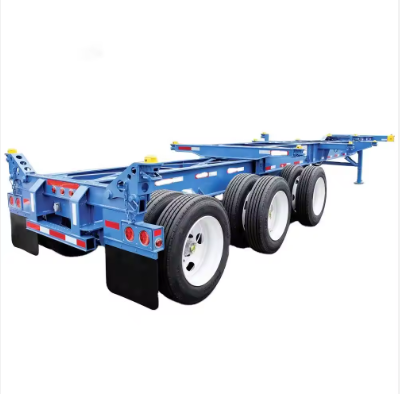

3 Axle 40FT Container Skeleton Semi Trailer details
Skeleton semi-trailers are usually used to transport container. it can be directly loaded in the consignor's warehouse and transported to the consignee's warehouse for unloading. When changing vehicles and ships midway, there is no need to remove the cargo from the container and reloadIt can be quickly loaded and unloaded, and can be directly and conveniently converted from one mode of transportation to another.
Specification
|
Product Name
|
Skeleton Semi Trailer
|
|
|
Dimension(Lx W x H)（mm）
|
Outside 12380×2480×1550mm (customizable)
|
|
|
Tare weight (kg)
|
6500 (depends on final configuration)
|
|
|
Max Loading Capacity (kg)
|
50000 （customizable)
|
|
|
Main Beam
|
Q345B / T700 Steel Height 500mm
upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
|
|
Axles
|
13/16/20 Ton. Axle amount optional like 2/3/4/6axles ..., Axle brand optional like SAF /FUWA/BPW etc
|
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional)
|
|
|
Rim
|
9.00-22.5/8.00-20/8.50-20
|
|
|
King Pin
|
2"(50mm)or3.5"(90mm) JOST or other brand optional
|
|
|
Suspension
|
Mechanical Suspension Air Suspension(American or Geman)
|
|
|
Leaf Spring
|
90(w)mm*13/16(thickness)mm*10(layer)
|
|
|
Landing Gear
|
28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc.
|
|
|
Twist-lock
|
4/8/12 units (customizable)
|
|
|
Brake System
|
Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums |
|
|
ABS System
|
None or installed as your requirement.
|
|
|
Electrical system
|
1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector etc.) |
|
|
Color
|
As per customer requirement
|
|
|
Spare Wheel Bracket
|
1 piece of Spare Wheel Bracket
|
|
|
Tool box
|
1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar
|
|
|
Painting
|
Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting;
|
|
|
Packing
|
Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping.
|
|
|
Delivery
|
From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
|
|
|
Remarks
|
Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects.
|
|
|
Pls kindly noted that pictures and configuration information are only for your reference.The final product can be made according
to specific requirements. |
|
|
Details Images
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Suspension and break system
Suspension:
Germany Type or American Type Mechanical and Air bag suspension can be choose.
Brake System:
T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Anti-Tire abrasion Suspension
Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
abrasion.Meanwhile,Easy to disassemble and maintain.
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle
Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
TWIST LOCK
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Landing Gear
The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
