Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Greensun Solar
-
Model Number:
-

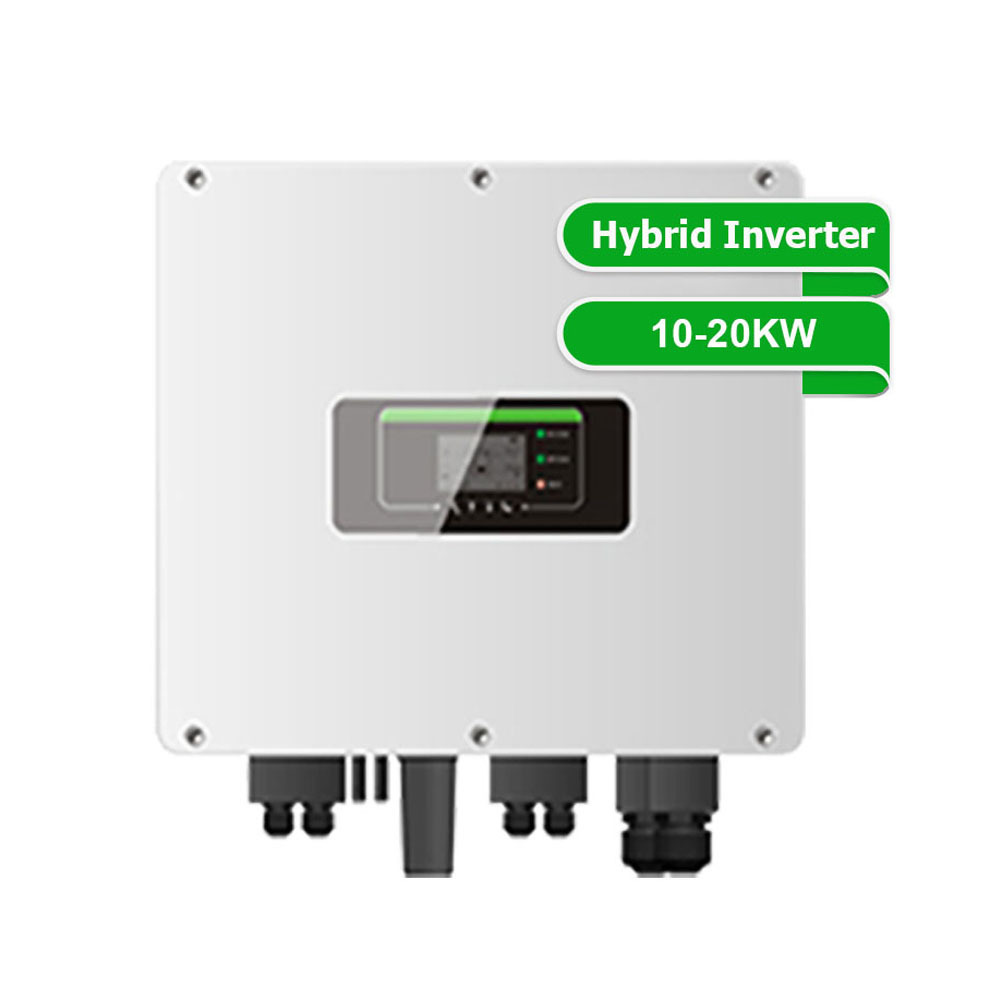

HYD 20000TL-3PH
-
Input Voltage:
-
160-960VDC
-
Output Voltage:
-
360-440VAC
-
Output Current:
-
3*33A
-
Output Frequency:
-
50/60HZ
-
Size:
-
560*570*260MM
-
Certificate:
-
CE ISO TUV IEC SAA VDE, ISO 9001/CE/IEC/VDE/G83/G59/AS4777/EN50438
-
Warranty:
-
10Years, 5/10Years
-
Weight:
-
35kg
-
Product name:
-
solar inverter
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Hybrid Solar Power Inverter
-
Protection:
-
IP65
-
MPPT Input Voltage Range:
-
160-960VDC
-
Max PV Input Power:
-
26600W
-
Communication:
-
WIFI/RS485
-
MPPT Efficiency:
-
99.9%
Quick Details
-
Output Type:
-
Triple
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.9%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Greensun Solar
-
Model Number:
-
HYD 20000TL-3PH
-
Input Voltage:
-
160-960VDC
-
Output Voltage:
-
360-440VAC
-
Output Current:
-
3*33A
-
Output Frequency:
-
50/60HZ
-
Size:
-
560*570*260MM
-
Certificate:
-
CE ISO TUV IEC SAA VDE, ISO 9001/CE/IEC/VDE/G83/G59/AS4777/EN50438
-
Warranty:
-
10Years, 5/10Years
-
Weight:
-
35kg
-
Product name:
-
solar inverter
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Hybrid Solar Power Inverter
-
Protection:
-
IP65
-
MPPT Input Voltage Range:
-
160-960VDC
-
Max PV Input Power:
-
26600W
-
Communication:
-
WIFI/RS485
-
MPPT Efficiency:
-
99.9%
Heigh-yield
*Real Time precise MPPT algorithm for max power generation
*Wide input voltage operateion range
*Independent dual MPPT tracking, flexible solar roof system design
I ntelligent grid management
*Reactive power capbility
*Limits AC output when grid grequency is too high or to low
*Limits AC outpout when grid voltage is too high
*Built in zero expoert function (optional)
Multiple working modes
*PV & stroage all in one, increases self consumption to 80%+,decreases reliance on the electrical grid, decreases the electricity bill.
*Stand alone mode (like UPS) avaliable, ensures safe operation of critical loads
*Multiple operation modes selection: auto mode, time-of-use mode,timing mode, passive mode etc.
Reliable and Safe
*High efficiency low energy loss, Low maintenance
*High frequency isolation between battery & PV/grid
*Advanced battery management technology to protect the battery life
Easier Operation
*Free site selection due to IP65
*4'LCD clear,easy-to-read display
*Real Time Monitorin
|
Model
|
10000TL-3PH
|
15000TL-3PH
|
20000TL-3PH
|
HYD 5000-ES
|
HYD 6000-ES
|
|||||
|
DC Input(PV Side)
|
|
|
|
|
|
|||||
|
Recommended Max DC input Power
|
13300W
|
19950W
|
26600W
|
5500W
|
6600W
|
|||||
|
Max DC input Voltage
|
1000V
|
|
|
600V
|
|
|||||
|
Start-up Input Voltage
|
180VDC
|
|
|
|
|
|||||
|
Rated Input Voltage
|
600VDC
|
|
|
|
|
|||||
|
MPPT Voltage Range
|
160-960V
|
|
|
|
|
|||||
|
Full Power MPPT Voltage Range
|
500V-850V
|
|
|
|
|
|||||
|
Number of MPPT
|
4
|
|
|
|
|
|||||
|
Max Input Current
|
12.5A/12.5A
|
25A/25A
|
25A/25A
|
|
|
|||||
|
Max Short Circuit Current
|
16.5A/16.5A
|
32.5A/32.5A
|
32.5A/32.5A
|
|
|
|||||
|
MPPT Number/String Numer of Each MPPT
|
2/1
|
2/2+2
|
2/2+2
|
|
|
|||||
|
Battery Parameters
|
|
|
|
|
|
|||||
|
Battery Type
|
Lithium-ion,Lead-acid
|
|
|
|
|
|||||
|
Battery voltage range
|
200-750VDC
|
|
|
|
|
|||||
|
Rated Charge/Discharge Current
|
25A
|
25A
|
2*25A
|
|
|
|||||
|
Charging Strategy
|
Follow BMS
|
|
|
|
|
|||||
|
Rated Charge/Discharge Power
|
10000W
|
15000W
|
20000W
|
|
|
|||||
|
Maximum Charging / Power Discharging
|
12500W<10MIN 15000W<1MIN
|
18750W<10MIN 22500W<1MIN
|
25000W<10MIN 30000W<1MIN
|
|
|
|||||
|
ON GRID Output(Grid Side)
|
|
|
|
|
|
|||||
|
Rated Output Power
|
10000W
|
15000W
|
20000W
|
5000W
|
6000W
|
|||||
|
Max Output Current
|
3*16.5A
|
3*25A
|
3*33A
|
|
|
|||||
|
Norminal Grid Voltage
|
Single phase L/N/PE, 220-240VAC
|
|
|
|
|
|||||
|
Grid Voltage Range
|
230/400VAC; (184-275V, According to local standard)
|
|
|
|
|
|||||
|
Norminal Frequency
|
50/60HZ
|
|
|
|
|
|||||
|
Grid Frequency Range
|
47-55/54-66HZ (According to local standard)
|
|
|
|
|
|||||
|
THDI/Full Load
|
<3%
|
|
|
|
|
|||||
|
Power Factor
|
0.8Leading-0.8Laging
|
|
|
|
|
|||||
|
OFF GRID Output
|
|
|
|
|
|
|||||
|
Rated Output Voltage
|
230/400V(+-10%)
|
|
|
|
|
|||||
|
THDv@full load
|
3%
|
|
|
|
|
|||||
|
Rated Output Current
|
3*14.5A
|
3*21.8A
|
3*29A
|
|
|
|||||
|
Max Output Current
|
3*22A<1MIN
|
3*33A<1MIN
|
3*43.5A<1MIN
|
|
|
|||||
|
Output Frequency
|
50/60HZ
|
|
|
|
|
|||||
|
Rated Output Power
|
10000W
|
15000W
|
20000W
|
|
|
|||||
|
Parallel Connection
|
YES
|
|
|
|
|
|||||
|
Single Phase Output
|
YES
|
|
|
|
|
|||||
|
AC Terminal
|
5P Terminal Block
|
|
|
|
|
|||||
|
Others
|
|
|
|
|
|
|||||
|
MAX Efficiency
|
98.0%
|
98.1%
|
98.1%
|
|
|
|||||
|
MPPT Efficiency
|
99.9%
|
|
|
|
|
|||||
|
Input Anti-Reverse
|
YES
|
|
|
|
|
|||||
|
Anti-Islanding
|
YES
|
|
|
|
|
|||||
|
RCMU
|
YES
|
|
|
|
|
|||||
|
Over current protection
|
YES
|
|
|
|
|
|||||
|
Over voltage protection
|
YES
|
|
|
|
|
|||||
|
Insulation Resistance Monitoring
|
YES
|
|
|
|
|
|||||
|
SPD
|
III
|
|
|
|
|
|||||
|
Weight
|
25KGS
|
30KGS
|
35KGS
|
|
|
|||||
|
|
20.5KG
|
|
|
|
|
|||||
|
Dimension
|
560*570*230mm
|
|
|
|
|
|||||
|
Features
|
|
|
|
|
|
|||||
|
DC Terminal
|
MC4
|
|
|
|
|
|||||
|
Display
|
LCD
|
|
|
|
|
|||||
|
Monitoring
|
RS485/WIFI/GPRS/ETHERNET
|
|
|
|
|
|||||
|
Battery Communicaton Port
|
CAN
|
|
|
|
|
|||||
|
Parallel Connection Communication
|
CAN+Sync+Error Diagnosis
|
|
|
|
|
|||||
|
Professional Packing:
Carton, Wooden Pallet and Wooden Box.
|
|
|
|
|||
|
By Express
|
TNT, DHL, FedDex, UPS available
|
|
|
|||
|
By Air
|
Shenzhen/Shanghai or other Designated Airport
|
|
|
|||
|
By Sea
|
Shenzhen, Shanghai, Ningbo or other Designated Port in China
|
|
|
|||
