Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ECOICE
-
Liquid Flow Rate:
-
25L/MIN
-
Maximum Working Pressure:
-
4.5MPA
-
Weight:
-
30 KG
-
Dimension(L*W*H):
-
455x86x86
-
Working Temperature Range:
-
-8℃~+208℃
-
Product Name:
-
Shell Tube Heat Exchanger
-
Material:
-
SS304/SS316
-
Application:
-
Heat Transfer Cooling
-
Heat exchanger type:
-
water to air
-
Feature:
-
Corrosion Resistant
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Voltage:
-
220V/380V
-
Core Components:
-
stainless steel
-
Place of Origin:
-
China
-
Brand Name:
-
ECOICE
-
Liquid Flow Rate:
-
25L/MIN
-
Maximum Working Pressure:
-
4.5MPA
-
Weight:
-
30 KG
-
Dimension(L*W*H):
-
455x86x86
-
Working Temperature Range:
-
-8℃~+208℃
-
Product Name:
-
Shell Tube Heat Exchanger
-
Material:
-
SS304/SS316
-
Application:
-
Heat Transfer Cooling
-
Heat exchanger type:
-
water to air
-
Feature:
-
Corrosion Resistant

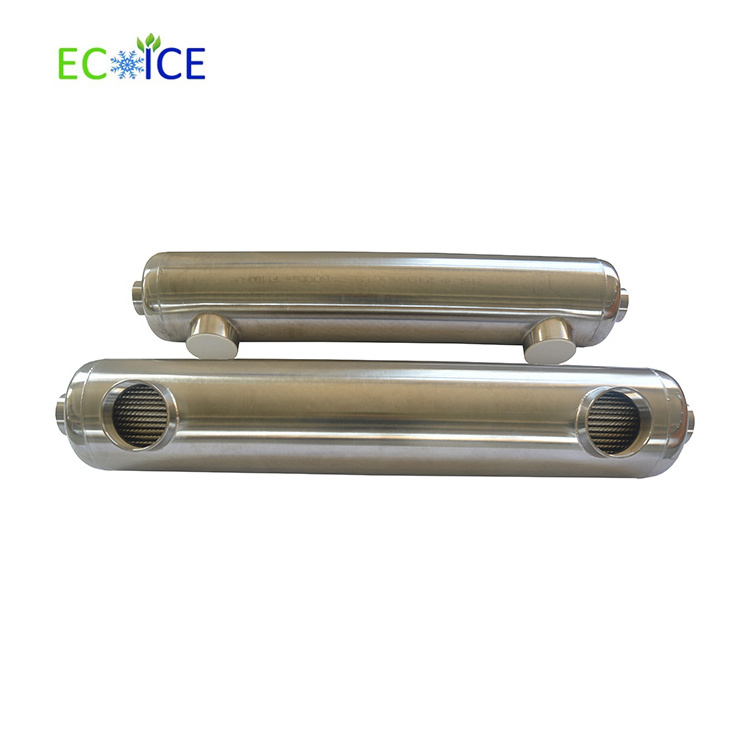

SS316L SS316 304 Shell & Tube Heat Exchanger for Swimming Pool , Spa Pool
Product Description
Specification
Swimming Pool Solar Overseas Service Available Stainless Steel 304 Tube Heat Exchanger
|
Model
|
A(mm)
|
B(mm)
|
C(mm)
|
E(mm)
|
|
ECO-55K
|
60
|
360
|
3/4"
|
1"
|
|
ECO-85K
|
60
|
520
|
3/4"
|
1"
|
|
ECO-155K
|
76
|
450
|
1"
|
1-1/2"
|
|
ECO-210K
|
76
|
570
|
1-1/2"
|
1-1/2"
|
|
ECO-300K
|
76
|
780
|
1-1/2"
|
2"
|
|
ECO-360K
|
89
|
830
|
1-1/2"
|
2"
|
|
ECO-600K
|
114
|
900
|
2"
|
2-1/2"
|
|
ECO-1200K
|
133
|
900
|
2"
|
2-1/2"
|
|
ECO-2400K
|
168
|
950
|
2"
|
4"
|
|
ECO-3000K
|
168
|
1100
|
2-1/2"
|
4"
|
|
ECO-3600K
|
168
|
1300
|
2-1/2"
|
4"
|
|
ECO-4500K
|
219
|
1070
|
2-1/2"
|
4"
|
|
ECO-5000K
|
219
|
1120
|
2-1/2"
|
4"
|
|
ECO-6000K
|
219
|
1220
|
2-1/2"
|
4"
|
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.
Features:
1. High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
2. Max design temperature:208°C
3. Max. working pressure:1.3Mpa
4. Material: All stainless steel 316L,Titanium or according of customer's requirement
5. Warranty period:5 years
Advantages:
1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
2. Compact configure, occupy small area,one tenth as the traditional equipments
3. Titanium material, endure high temperature, pressure and corruption.
4. Helix screw thread elasticity heat exchange bundle, eliminate the stress
5. Design flux speed is 5.5m/s, less dirt.
6. ASME standard VIII-1
7. Easy clean and maintain
8. Big flow volume
9. Compactable
10. Easy installation and durable
Features:
1. High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
2. Max design temperature:208°C
3. Max. working pressure:1.3Mpa
4. Material: All stainless steel 316L,Titanium or according of customer's requirement
5. Warranty period:5 years
Advantages:
1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
2. Compact configure, occupy small area,one tenth as the traditional equipments
3. Titanium material, endure high temperature, pressure and corruption.
4. Helix screw thread elasticity heat exchange bundle, eliminate the stress
5. Design flux speed is 5.5m/s, less dirt.
6. ASME standard VIII-1
7. Easy clean and maintain
8. Big flow volume
9. Compactable
10. Easy installation and durable
Application
1.Typical:
residential apply to In-floor heating, Swimming pools, spas heating, Domestic hot water heating, outdoor wood furnances , hot tube heatin, Driveway snowmelts
2.Typical industrial apply to:
Oil cooler or heating, Steam condenser, District/central heating, Transmission and engine cooler, Boiler sample cooler, Waste water heat recovery, Industry process
2.Typical industrial apply to:
Oil cooler or heating, Steam condenser, District/central heating, Transmission and engine cooler, Boiler sample cooler, Waste water heat recovery, Industry process
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
