To satisfy users' requirements for high profits, low costs, and energy saving, and to overcome the shortcomings of conventional
crushing equipment such as complex operation procedures and low crushing efficiency, SBM has developed the new generation of

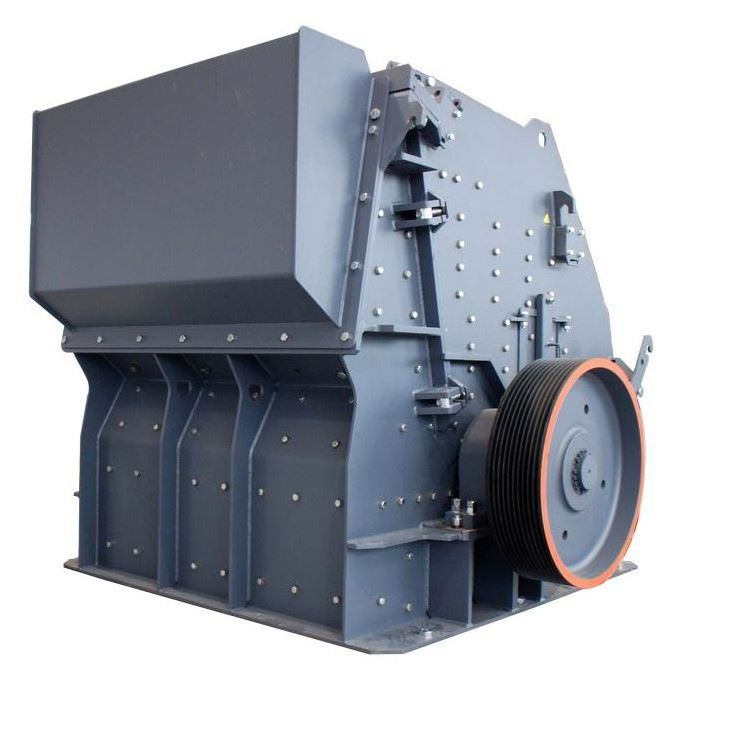

high-efficiency coarse and medium-fine crushing machine – CI5X Impact Crusher. This impact crusher is the ideal upgrading product
of conventional crushing machines.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2550*2310*2100
-
Weight:
-
10000 KG
-
Marketing Type:
-
hot sale 2024
-
Name:
-
primary impact crusher
-
Color:
-
Iron Grey
-
Installation:
-
Under Technical Guidance
-
Spare parts supply:
-
Lifelong Provide
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
After-sale service:
-
Problems Within 48 Hours
-
Quality:
-
Advanced Technology
Quick Details
-
Application:
-
Quarry, stone, ore, quarry
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SBM
-
Dimension(L*W*H):
-
2550*2310*2100
-
Weight:
-
10000 KG
-
Marketing Type:
-
hot sale 2024
-
Name:
-
primary impact crusher
-
Color:
-
Iron Grey
-
Installation:
-
Under Technical Guidance
-
Spare parts supply:
-
Lifelong Provide
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
After-sale service:
-
Problems Within 48 Hours
-
Quality:
-
Advanced Technology
Product Description
Specification
|
item
|
value
|
|
Input Size
|
0-1300mm
|
|
Product Features
|
Integration of latest scientific achievements, heavy-duty rotor with big rotary inertia and high precision, higher crushing
efficiency
|
|
Application
|
Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.
|
|
Capacity(t/h)
|
250-2000TPH
|
Technical Parameters
|
Model
|
Specifications (mm)
|
Feed opening (mm)
|
Max. feed size (mm)
|
Capacity (t/h)
|
Power (kW)
|
Weight (t)
|
Dimensions (mm)
|
|
CI5X1315
|
Φ1300×1500
|
1540×930
|
600
|
250-350
|
250
|
20
|
2880×2755×2560
|
|
CI5X1520
|
Φ1500×2000
|
2040×520 (2040×995)
|
350(700)
|
400-600
|
2×250 (2×200)
|
30
|
3390×3520×2790
|
|
CI5X1415
|
Φ1400×1500
|
1540×1320
|
900
|
350-550
|
250
|
24
|
2995×2790×3090
|
|
CI5X1620
|
Φ1600×2000
|
2040×1630
|
1100
|
500-900
|
2×200
|
42
|
3485×3605×3720
|
|
CI5X2023
|
Φ2000×2300
|
2400×1920
|
1300
|
1200-2000
|
2×500
|
76
|
4890×4380×4765
|
