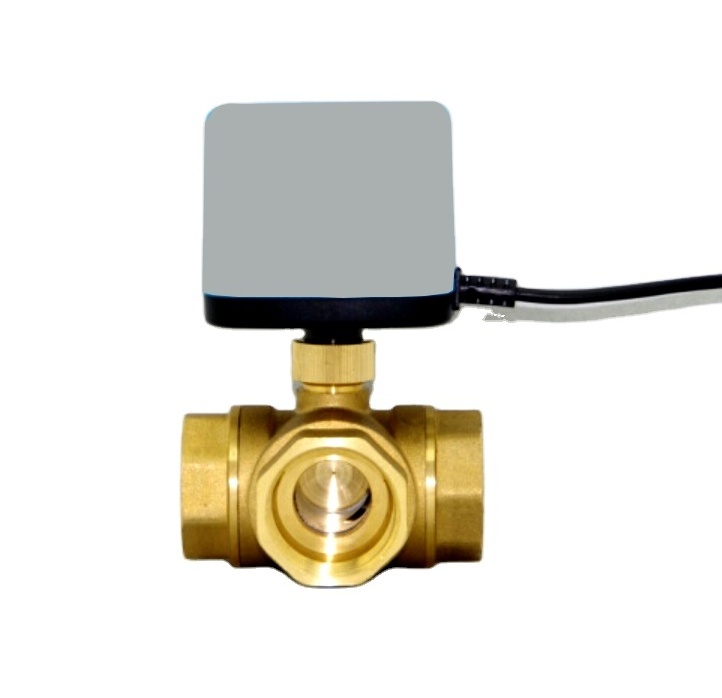

Normal close 3 way electric motorized T shape DN25 BSP thread 220VAC brass ball valve

Normal close 3 way electric motorized T shape DN25 BSP thread 220VAC brass ball valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $14

Free Inquiry

Customized Request

Explore More Products

Wholesale 90 Degree Brass Gas Ball Valve

Brass Butterfly Gas Pipe Switch Valve Inner Thread Outer Thread Ball Valve Y Three Way Ball Valve

$ 0.7 - $ 1.38

Switch Brass Outer Wire Y Type Three Way Double Fork 3 Way Gas Ball Valve

$ 0.7 - $ 1.38

Custom Thread Rockees Brass Gas Ball Valve 8mm Hose Connector Gas Valve Pex To Gas

$ 0.7 - $ 1.38

Double Handle Brass Bathroom Kitchen 3 Way Toilet Concealed Shower Angle Valve

$ 0.7 - $ 1.38

Y Sharp Wing Butterfly Handle Male Threads 3 Way Gas Manifold Double Fork Gas Line Ball Valve

$ 0.7 - $ 1.38

Inner Thread Outer Gas Pipe Switch Butterfly Rockees Brass Gas Y Ball Valve 8mm Hose Connector

$ 0.7 - $ 1.38

Product Details

{{item.text}}

Quick Details

Brand Name:: Taike

Thread:: NPT BSPT PT BSPP

Type:: Normal Closed Solenoid Valve

Certificate:: CE Approved

Working pressure:: PN20 PN16

Voltage:: AC24, AC110, AC220V ± 10%, 50 / 60HZ

Size:: 1/2" or 3/4" or 1''

Material:: Brass

cable length:: 900 mm

protection grade:: IP44

consumable power:: <6.5W

Quick Details

Port Size:: 1/2" or 3/4" or 1''

Place of Origin:: Liaoning, China

Model Number:: SR5121

Brand Name:: Taike

Thread:: NPT BSPT PT BSPP

Type:: Normal Closed Solenoid Valve

Certificate:: CE Approved

Working pressure:: PN20 PN16

Voltage:: AC24, AC110, AC220V ± 10%, 50 / 60HZ

Size:: 1/2" or 3/4" or 1''

Material:: Brass

cable length:: 900 mm

protection grade:: IP44

consumable power:: <6.5W

Product Description

Mini float npt electric ball valve/ air conditioner electric three-way valve

Brand: Taike

Model: XQ2014

Material: Brass

Origin: Shanghai,China

Color Classification: Grey or others
Accessory structure: floating ball valve Connection method: BSP Thread
Control way: Three-lines two control; Three-Lines one control

Motor type: synchronous motor	Valve body pressure: PN16
Lead wire length: 300MM	Temperature: -5-+100 ℃
Action time: 8 /15 seconds	Drive torque: 6N.M
Connection: Female thread	Power consumption: 6 watts (only when operating)
Closing pressure difference: ≤0.4Mpa	Applicable medium: cold and hot water or 50% ethanol solution
Electrical specifications: (50/60HZ) AC220V AC 24V DV12V DC24V

Installation Instructions

Three-lines two control：

One common wire is opened, and the other is closed;
The power cord is a live wire (positive) and a neutral wire (negative)
The two-color line common line is connected to the neutral line (negative)
The live wire (positive) is connected to the blue valve opening wire to open the valve,
The live wire (positive) is connected to the brown valve-off wire to close the valve.
The switching time is 15 seconds for alternating current and 8 seconds for direct current.
It adopts synchronous motor, built-in current position contact switch, and automatically power off after fully open or fully
closed.

Three-Lines one control:(normally closed type)

Three-Lines one control:(normally closed type)
A live wire, a neutral wire, and an open valve wire!
When the valve opening line is connected to the live line, it will open, and if it is not connected, it will be closed.
Switch action time: AC power is 15 seconds (three wires and one control without DC power)
It adopts synchronous motor, built-in current position contact switch, and automatically power off after fully open or fully
closed.
