Quick Details
-
Production Capacity:
-
High Speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GANGER
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
5500x3000x2850mm
-
Weight:
-
4500 kg
-
Model:
-
GQ-3220D
-
Function:
-
Stone Marble Tile quartz Cutting
-
Certification:
-
ce
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Control system:
-
CNC Control
-
Description:
-
Automatic Table Stone Cutting Saw
-
Blade Motor:
-
15KW
-
Usage:
-
Granite Marble Stone Processing
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
29kw
-
Cutting thickness (max):
-
80MM
-
Production Capacity:
-
High Speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GANGER
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
5500x3000x2850mm
-
Weight:
-
4500 kg
-
Model:
-
GQ-3220D
-
Function:
-
Stone Marble Tile quartz Cutting
-
Certification:
-
ce
-
Application:
-
Stone Marble Granite Quartz Sandstone
-
Control system:
-
CNC Control
-
Description:
-
Automatic Table Stone Cutting Saw
-
Blade Motor:
-
15KW
-
Usage:
-
Granite Marble Stone Processing
GANGER 5-Axis CNC Bridge Saw GQ-3220D/Stone Slab Cutting, Mitering, Routing, Faucet Holes
Usage/Stone cutting:
Cut marble, granite, porcelain, ultra-compact materials, Quartz, caeser stone, caesarstone, Dekton(sintered stone), Silestone ... slab cutting machine for kitchen countertops manufacturing
Stone Processing Type with GQ-3220D
Features:
1. XYZAC five axis.
2. Cutting straight line, circular, arc, grid point.

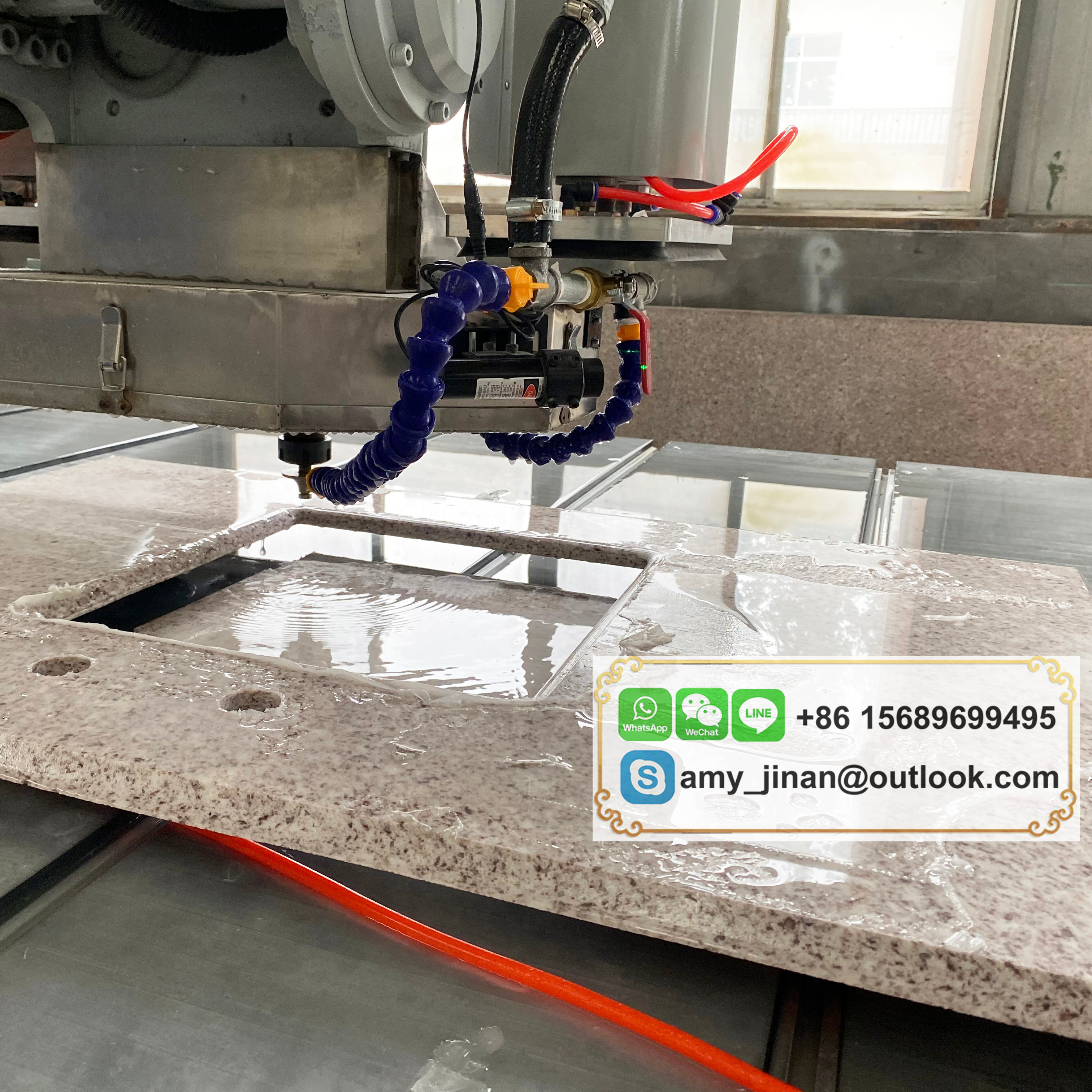

3. slotting, edging, beveling, chamfering and drilling faucet holes.
4. Curved surface, writing, routing and contouring are all available.
5. Intelligent Taiwan DELTA control system: Touch screen color display for quick cut programming, and input .NC and .DXF file by flash memory.
6. With automatic vacuum suction pad for stone slabs.
7. With Taiwan Delta servo motor, high speed and high precision.
8. By infrared ray to confirm the position of the workpiece.
9. C axis automatic rotation 0-360 degree, by servo motor and matched servo driver.
10. A axis automatic tilting 0-90 degree, by servo motor and matched servo driver.
11. Table tilting 0-85 degree, convenient to load the slabs.
12. Working table with upgrade PVC (thickness 30mm), high hardness, corrosion resistance, long service life.
|
Technical Parameters |
|
|
Model |
GQ-3220D |
|
X/Y/Z Axis working size |
3200*2000*500mm |
|
Diameter of blade |
350mm (max. 400mm) |
|
Working table size |
3200x2000mm |
|
Blade Motor power |
15KW |
|
Total power |
29KW |
|
Rotation speed of blade |
3000/6000rpm (variable) |
|
A axis rotation angle |
0°-90° |
|
C axis rotation angle |
0°-360° |
|
Table tilting angle |
0°-85° |
|
Control system |
Taiwan DELTA |
Applicable industry & material
Applicable industry: home decoration materials industry, sintered stone application industry, fabricated building materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, granite, caeser stone, Silestone, etc.
#marble decoration, #bathroom, #walls, #floor, #stair steps, #kitchen countertops, #bartops, etc.
Machine Details
Packing and Delivery
Sample Show
Application
Factory
CNC Bridge Saw Cutting Machine manufacturing workshop
Certificate
Export countries
