Quick Details
-
Dimension(L*W*H):
-
3100*1900*1600mm
-
Weight (KG):
-
850 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Power(W):
-
25.2kw
-
Weight:
-
4600kg
-
Dimension(L*W*H)::
-
3100*1900*1600mm
-
Color::
-
White
-
Power(W)::
-
25.2KW
-
Certification::
-
ISO CE
-
Type::
-
Woodworking Planer
-
Voltage::
-
380V
-
NAME:
-
JIAYANG
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
jiayang
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3100*1900*1600mm
-
Weight (KG):
-
850 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Power(W):
-
25.2kw
-
Weight:
-
4600kg
-
Dimension(L*W*H)::
-
3100*1900*1600mm
-
Color::
-
White
-
Power(W)::
-
25.2KW
-
Certification::
-
ISO CE
-
Type::
-
Woodworking Planer
-
Voltage::
-
380V
-
NAME:
-
JIAYANG
-
Certification:
-
CE

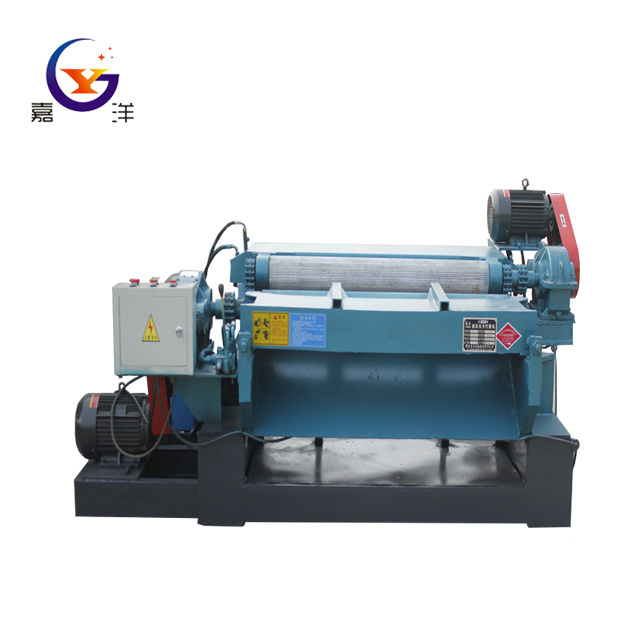

veneer peeling machine with single chuck/plywood peeling machine High quality plywood production line
Feature and advantage:
- 1. the modle for my company recently launched a servo motor control peeling cutting board machine. CNC rotation set cutting machines. Panel saws in one.
- 2. the product of the other models on the basis of comprehensive. Using servo control system and precition screw feed. So that production product more stable performance.
- 3. the modle is an important equipment of plywood or veneer production line . especially for peeling eucalyptus. Brich wood and other hard wood.
- 4. energy-saving simple operation.easy maintenance.
Main specification :
|
Type |
JY1400SF-2 |
|
Processing diameter |
280mm |
|
Processing len g th |
1300mm |
|
Remaining dia |
28nn |
|
Speed |
45m/min |
|
Peeling thickness |
0.8-3.6mm |
|
Roller diameter |
99mm |
|
Equiped power |
25.2kw |
|
Overall dimension |
3100*1900*1600mm |
|
Total weigh |
4600kg |
|
Knife installation |
obverse |
|
Materia |
Poplar, maple, pine, straight log or log core form spindle lathe |
picture display:
