Manufacturers supply CK770 wheel hub wire drawing machine refurbished wheel hub repair wheel hub repair lathe

Manufacturers supply CK770 wheel hub wire drawing machine refurbished wheel hub repair wheel hub repair lathe

FOB Reference Price: Get Latest Price

≥1 Sets

US $18300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Spindle Speed (r.p.m):: 1500 r.p.m

Width of bed (mm):: 400 mm

Spindle Motor Power(kW):: 5.5

Travel (X Axis)(mm):: 390 mm

Travel (Z Axis)(mm):: 750 mm

Positioning Accuracy (mm):: 0.01

Repeatability (X/Y/Z) (mm):: 0.005

Place of Origin:: China

Dimension(L*W*H):: 2100x1500x1800

Brand Name:: HTMC

Model Number:: CK770

Voltage:: 380V/220V

Weight (KG):: 1900

Marketing Type:: Hot Product 2024

Quick Details

Type:: Horizontal

Max. Length of Workpiece (mm):: 390

Year:: 2024

Max. Spindle Speed (r.p.m):: 1500 r.p.m

Width of bed (mm):: 400 mm

Spindle Motor Power(kW):: 5.5

Travel (X Axis)(mm):: 390 mm

Travel (Z Axis)(mm):: 750 mm

Positioning Accuracy (mm):: 0.01

Repeatability (X/Y/Z) (mm):: 0.005

Place of Origin:: China

Dimension(L*W*H):: 2100x1500x1800

Brand Name:: HTMC

Model Number:: CK770

Voltage:: 380V/220V

Weight (KG):: 1900

Marketing Type:: Hot Product 2024

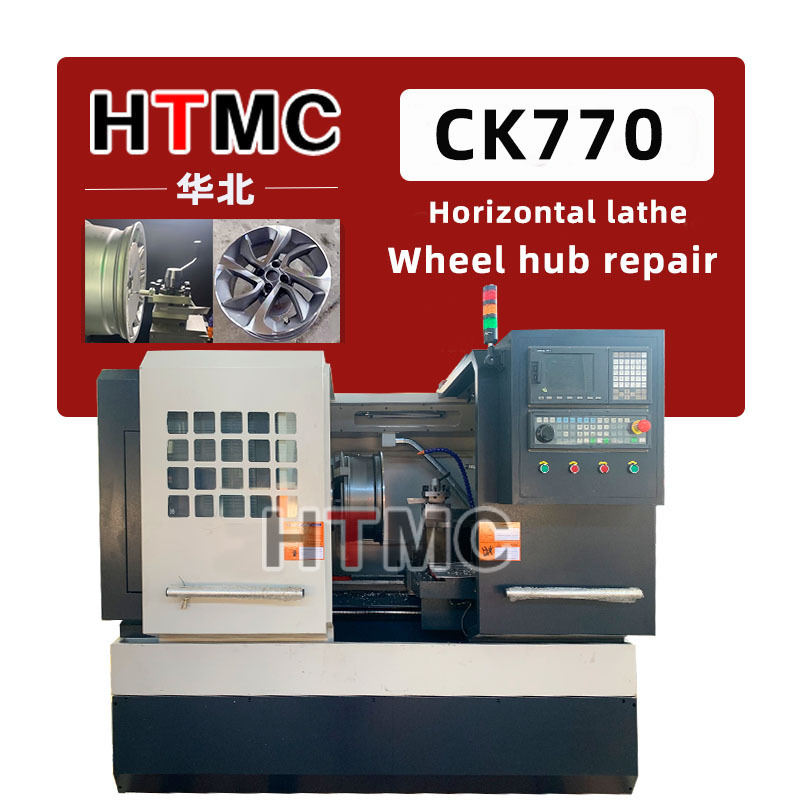

Main image

Technical parameter

Programming-free wheel repair lathe

ITM			UNIT	Ck770Syntec

Machine processing capacity	Max. swing over bed	Mm	770
	X/Z axis Travel	mm	390/750
	X/Z axis feed	Mm/min	4000/8000
Wheel work range	Wheel holding diameter	inch	28

	Wheel height range	mm	80-500
Chuck	Chuck size	mm	320

	Number of chuck jaws		3
Spindle speed	Lathe speed	Rpm/min	100-1500
	Cut Wheel Work Speed		300-800
Detection tools				TP300 Probe
Guide rail form				Hard rail
Lathe structure				Horizontal
system				Syntec6Ta-E
tool carrier	Number		4
accuracy	Positioning accuracy	Mm	0.01
	Repeatability Positioning accuracy	mm	0.005
	Tool carrier Repeatability Positioning accuracy	mm	±0.07
Motor power	Main motor	kw	5.5

	X Z X Z Feed Torgue	N/M	6--10
Cooling				Air cooling
Voltage				3 phase 220v 3 phase 380V
Machine size			mm	2100/1500/1800

Product Description

Full Cover (Security Guard Door);

Work Lighting System;
Automatic Lubrication System;

3-Jaws Manual Chuck

（With Special Soft Jaws)

Wheel Curve Optimize Software

Cooling System

Max. Diameter of alloy wheel 28inh

Cut Wheel Work Speed30-800rpm/min

Taiwan SYNTEC Controller；

Programming-free wheel repair lathe

Packing & Delivery

PACKAGING	Plywood
Size	2100x1500x1800 mm
Weight	1900kg
Packaging details	1. normal package is wooden box 2. European countries : the wooden box will be fumigated
