Jinsdon complete solar set 25kw off grid solar kit 220v 25000w solar energy storage system for home use industrial commercial

Jinsdon complete solar set 25kw off grid solar kit 220v 25000w solar energy storage system for home use industrial commercial

FOB Reference Price: Get Latest Price

≥1 Sets

US $8200

Free Inquiry

Customized Request

Explore More Products

Off Grid 2KW-5KW Solar Power System Kit For Home

$ 2.48 - $ 63.72

Home Solar Panel Kit System 10kw-30kw Off Grid Solar Power System For Home

$ 2.48 - $ 63.72

Home Use Commercial Balcony Energy Saving System Buy Flexible Solar Panels Kit For Sale

$ 18.13 - $ 25.99

Wholesaler Solar Energy System Home Use Outdoor Commercial Solar Panels For Sale

$ 18.13 - $ 25.99

Home Energy Storage Flexible 180w 195w 200w 250w Solar Panels System Kit For Sale

$ 18.13 - $ 25.99

Good Quality Multifunctional Outdoor Energy Storage System 200w 220w Flexible Solar Panel For Home Use

$ 18.13 - $ 25.99

Balcony Power Kit 400w 410w Solar Panels With 600w Inverter Waterproof Solar System For Home Complete Kit

$ 2.48 - $ 63.72

Solar Power Generator 600w Micro System Solar Panels Kit For Home Balcony

$ 2.48 - $ 63.72

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: CE/TUV/ISO9001/RoHs etc

Place of Origin:: Guangdong, China

Brand Name:: JSDSOLAR

Model Number:: Plus- 25kw solar system

Load Power (W):: 25kw

Output Voltage (V):: 220v or 230v

Output Frequency:: 50/60hz

Work Time (h):: 20 Hours

Product name:: 25kw photovoltaic system

Inverter type:: mppt controller inverter

Serve life:: 25 years

Safety Class:: Class A

Keywords:: hybrid solar energy system

Usage:: home, companies,farm etc.

Specification:: Normal

System Type:: 25kw hybrid solar system

Quick Details

Application:: Home, Commercial, Industrial

Solar Panel Type:: Monocrystalline Silicon

Battery Type:: Lithium Ion

Controller Type:: MPPT

Mounting Type:: Ground Mounting

Certificate:: CE/TUV/ISO9001/RoHs etc

Place of Origin:: Guangdong, China

Brand Name:: JSDSOLAR

Model Number:: Plus- 25kw solar system

Load Power (W):: 25kw

Output Voltage (V):: 220v or 230v

Output Frequency:: 50/60hz

Work Time (h):: 20 Hours

Product name:: 25kw photovoltaic system

Inverter type:: mppt controller inverter

Serve life:: 25 years

Safety Class:: Class A

Keywords:: hybrid solar energy system

Usage:: home, companies,farm etc.

Specification:: Normal

System Type:: 25kw hybrid solar system

Product Description

5KW/10KW/15 KW /20KW/25KW/30KW

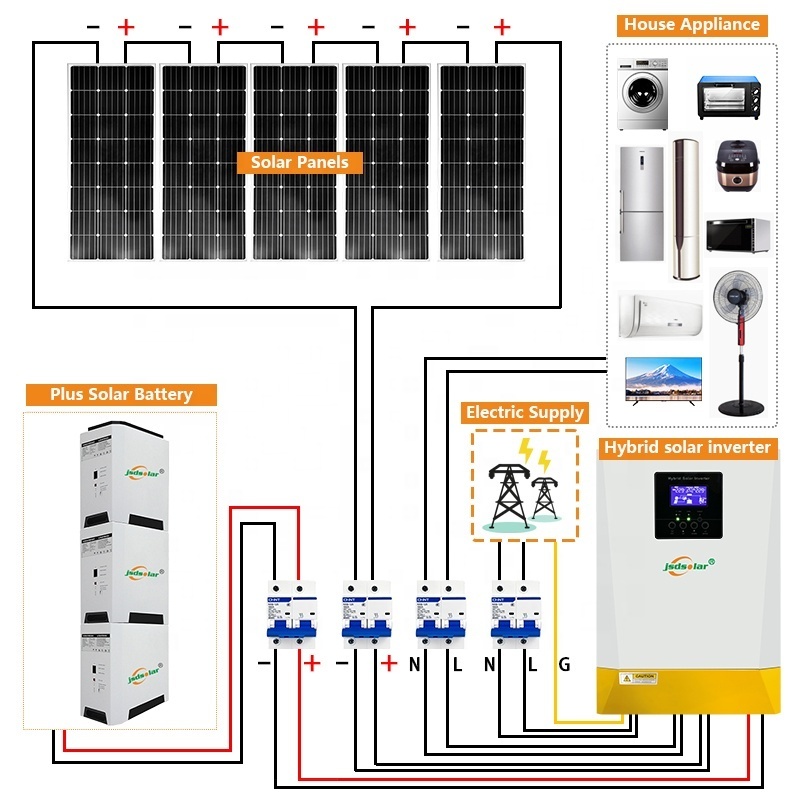

Off Grid Hybrid Solar Power System Components List

Parts

Description

Quantity

5kw

10kw

15kw

20kw

25kw

30kw

mppt Controller Inverter

Model:48V/5000W
Input：48VDC
AC Output：220V/50Hz, 5000W
Max Charge Current：80A

1PC

2 PCS

3PCS

4PCS

5PCS

6PCS

Lifepo4 battery pack

Model:48V 80AH
Rated Voltage：51.2V
Rated Capacity：80AH
Net Weight：45kg
DOD depth：100%

1PC

2PCS

3PCS

4PCS

5PCS

6PCS

PV Panel

Model:PV380P
Mono Type Vmp:38V ;
Imp:9.19A; Voc：46V；
Isc：9.64A；
Rate Power：380W；
Size：1979*992*40mm
Weight：24.0 kg

8PCS

16PCS

24PCS

32PCS

40PCS

48PCS

PV Panel Mounting

Bracket

Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting

1 Set

Power Distribution Box

Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc

1 Set

Cable

Model:PV-1*6mm2
Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：

-40℃-90℃

40 M

80 M

120 M

160 M

200 M

240 M

PV Waterproof Connector

Model:MC4
Rated Voltage: 1000V DC
Rated Current: 30A
IP Rate: IP67

10 Pairs

20 Pairs

30 Pairs

40 Pairs

50 Pairs

60 Pairs

MPPT Controller Inverter

1. Pure sine wave inverter;
2. Inverter running without battery ;

3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting;
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.

Lithium Ion Battery

1. Safety;

2. Fast charging;

3. Long span life;

4. Support customization;
5. Large capacity & small volume;
6. Environmental materials adoption;
7. Good high-temperature performance;
8. Advanced BMS protection function.

Solar Panels

1. 25 years Warranty;
2. Highest conversion efficiency of 17%;
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.

PV Panel Mounting Bracket

1. Residential Roof(Pitched Roof);
2. Commercial Roof(Flat roof&workshop roof);
3. Ground Solar Mounting system;
4. Vertical wall solar mounting system;
5. All aluminum structure solar mounting system;
6. Car parking solar mounting system.
