Quick Details
-
Model Number:
-
LW6 LW7 LW8 LW9 LW10 LW12
-
Dimension(L*W*H):
-
4500x1600x2300mm
-
Weight:
-
700KG -1200kg
-
Features:
-
Tractor Towable Backhoe
-
Warranty:
-
12 Months
-
Certification:
-
CE Certificate
-
Name:
-
backhoe
-
Color:
-
Customized
-
Bucket Width:
-
200/300/400/500mm
-
Digging depth:
-
1850mm-2640mm
Quick Details
-
Application:
-
Digging
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AFM
-
Model Number:
-
LW6 LW7 LW8 LW9 LW10 LW12
-
Dimension(L*W*H):
-
4500x1600x2300mm
-
Weight:
-
700KG -1200kg
-
Features:
-
Tractor Towable Backhoe
-
Warranty:
-
12 Months
-
Certification:
-
CE Certificate
-
Name:
-
backhoe
-
Color:
-
Customized
-
Bucket Width:
-
200/300/400/500mm
-
Digging depth:
-
1850mm-2640mm
Features of towable mini backhoe
1 . M atched any tractor .
2 . P owered by PTO drive n with hydraulic pump.
3 . 3-point hitched backhoe , steady structure
4. O il tank ,oil show, gas-permeable cap
5. claw on boom, handed control valve
6. luxury spring seat and safety belt.
7. Optional buckets
8. Work independently, only need vehicle to tow to the working destination
9. Can be used for garden digging and construction digging
Specification of towable mini backhoe
|
Model |
LW—6 |
LW—7 |
LW—8 |
LW—9 |
LW—10 |
LW—12 |
|
Fitting power |
16-35 hp |
25-75 hp |
45-85hp |
50-100hp |
70 - 125hp |
80-150hp |
|
Max. digging depth |
1850 mm |
2150 mm |
2640 mm |
2900 mm |
3000 mm |
3500 mm |
|
Digging depth Flat bottom |
1600 mm |
2000 mm |
2500 mm |
2760 mm |
2800 mm |
3350 mm |
|
Max. digging height |
2500 mm |
3400 mm |
3510 mm |
3900 mm |
4000 mm |
4300 |
|
Loading heigh |
1400 mm |
1760 mm |
2000 mm |
2362 mm |
2337 mm |
2700 |
|
Unloading heigh |
1733 mm |
1878 mm |
1952 mm |
2413 mm |
2540 mm |
2770 |
|
Max. digging radius |
2800 mm |
3360 mm |
3930 mm |
3977 mm |
3886 mm |
4300 |
|
Max. digging load |
1300 kg |
1200 kg |
1600 kg |
1900 kg |
2600 kg |
2700 kg |
|
Bucket rofation (°) |
160° |
160° |
160° |
150° |
150° |
172° |
|
Swing angle (°) |
140° |
140° |
140° |
160° |
160° |
180° |
|
Valve standard press |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
|
Bucket width |
300 mm |
400 mm |
450 mm |
480 mm |
500 mm |
550 mm |
|
Bucket volume |
0.03 m3 |
0.036 m3 |
0.048 m3 |
0.054 m3 |
0.06 m3 |
0.07 m3 |
|
Weight |
580 kg |
670 kg |
760 kg |
820 kg |
870 kg |
960 kg |

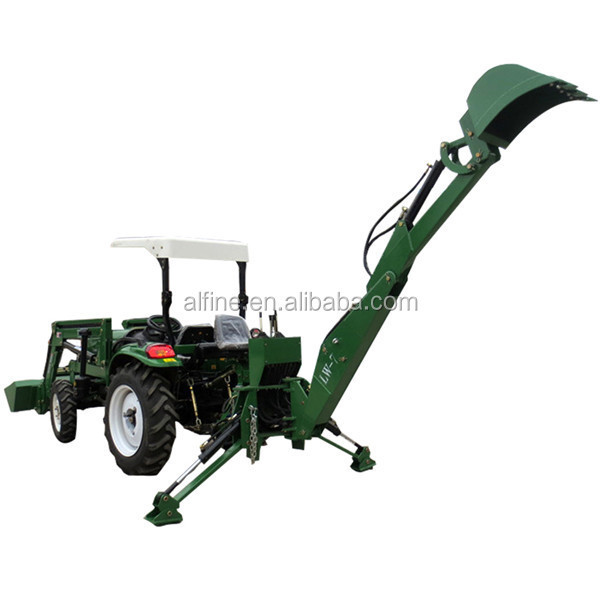

Details images of towable mini backhoe
