TUV ISO Certification PV Cable 4mm Solar Panel DC Solar Cable 1500V DC Single Core 1x1.5mm2 Electric Wire 6mm System PV Cable

TUV ISO Certification PV Cable 4mm Solar Panel DC Solar Cable 1500V DC Single Core 1x1.5mm2 Electric Wire 6mm System PV Cable

FOB Reference Price: Get Latest Price

≥100 Meters

US $0.15

≥1000 Meters

US $0.1

≥10000 Meters

US $0.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Jacket:: PVC

Place of Origin:: Anhui, China

Brand Name:: Hochey

Model Number:: Single Core 2.5/4/6/10mm

Size:: 2.5/4/6/10mm

Product name:: Copper Core PVC Insulated Electrical Power Cable

Color:: Red Black

Conductor:: Tinned Copper

Certificate:: ISO9001/ISO14001 /OHSAS18001/CCC

Core:: Single

Rated voltage:: AC 1000V DC 1500V

Conductor type:: Tin Plated Copper

Keywords:: PV Solar Power Cable Wire

Cable type:: Photovoltaics Solar Cable

Hot Sale Size:: 1.5mm 2.5mm 4mm 6mm 10mm

Quick Details

Insulation Material:: XLPO

Application:: Construction

Conductor Material:: Copper

Jacket:: PVC

Place of Origin:: Anhui, China

Brand Name:: Hochey

Model Number:: Single Core 2.5/4/6/10mm

Size:: 2.5/4/6/10mm

Product name:: Copper Core PVC Insulated Electrical Power Cable

Color:: Red Black

Conductor:: Tinned Copper

Certificate:: ISO9001/ISO14001 /OHSAS18001/CCC

Core:: Single

Rated voltage:: AC 1000V DC 1500V

Conductor type:: Tin Plated Copper

Keywords:: PV Solar Power Cable Wire

Cable type:: Photovoltaics Solar Cable

Hot Sale Size:: 1.5mm 2.5mm 4mm 6mm 10mm

You May Like

Products Description

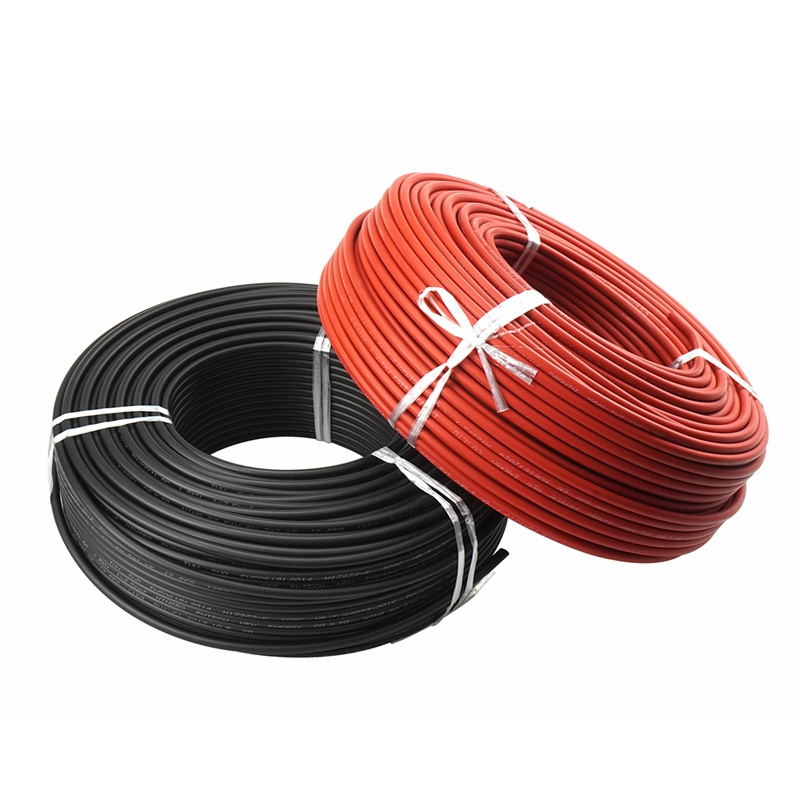

Hochey DC PV Cable

Oxygen-free Copper with Safety Certification and CE, CQC, TUV obtained solar DC PV cable.

It is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Cross Section is 2.5mm/4mm/6mm/10mm, selectable. Max rated voltage is AC 0.6/1.0KV DC 1.5KV.

With strengths of Environmental Protection, Flame Retardant, T ensile Resistance. Its service life is more than 30 years.

Detailed Picture

Quick Parameter

Product Name	DC Solar PV Cable
Key Words	DC Solar PV Cables For Solar Mounting System
Cross Section	2.5mm/4mm/6mm/10mm
Conductor Material	Tin Plated Copper
Color	Black Red
Material Of Sheath Layer	XLPE
Insulating Material	XLPE
Rated Voltage	AC 0.6/1.0KV DC 1.5KV
Rated Temperature	-40°C~+90°C

Key Features

Application Areas

Details

Model	2.5mm2	4mm2	6mm2	10mm2
Diameter	2.4mm	2.4mm	3.0mm	4.1mm
Min Average Thickness	0.7mm	0.7mm	0.7mm	0.7mm
Outer Diameter	5±0.15mm	6.1±0.15mm	6.1±0.15mm	7.4±0.15mm
Insulation Resistance At 20℃	≥ 640 MΩ.km	≥ 580 MΩ.km	≥ 500 MΩ.km	≥ 420 MΩ.km
Current carrying capacity AT 60℃	41A	55A	70A	98A
Spark Test	10000VAC
Voltage Withstand	6500 VAC
Conductor Resistance AT 20℃	≤ 8.21 Ω/km	≤ 5.09 Ω/km	≤ 3.39 Ω/km	≤ 1.95 Ω/km
Bending Radius Dynamic	≥ 5 X O.D.
Bending Radius Static	≥ 4 X O.D.
Ozone Resistant	EN60811-403 Method A;EN 50396 8.1.3 Method B
Low Smoke Emission	EN61034-2,light transmittance ≥ 60%
Weathering/UL Resistance	EN50289-4-17
Halogen Free	IEC 60754-1
Flame Retardant	IEC 60332-1-2
Package type	300m/roll	200m/roll	200m/roll	100m/roll
Weight	13KG	16KG	16KG	13KG

If you want to know more information including detailed electrical data, warranty, after-sale service, payment terms, discount, shipping cost, etc. Please feel free to send us an inquiry！
