Quick Details
-
Model Number:
-
SG302
-
Place of Origin:
-
Yunnan, China
-
Certification:
-
FCC,ce,RoHS
-
Product Name:
-
2 port gigabit poe switch board
-
Input voltage:
-
DC 9-62V
-
Output voltage:
-
DC 9-62V(2pin header)
-
Power port::
-
2pin header 2.54mm/dc jack/green terminal
-
Rate:
-
10/100/1000mbps
-
Switch Capacity:
-
10Gbps
-
Interface:
-
3 rj45(90degree)
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
guangtian
-
Model Number:
-
SG302
-
Place of Origin:
-
Yunnan, China
-
Certification:
-
FCC,ce,RoHS
-
Product Name:
-
2 port gigabit poe switch board
-
Input voltage:
-
DC 9-62V
-
Output voltage:
-
DC 9-62V(2pin header)
-
Power port::
-
2pin header 2.54mm/dc jack/green terminal
-
Rate:
-
10/100/1000mbps
-
Switch Capacity:
-
10Gbps
-
Interface:
-
3 rj45(90degree)
Features

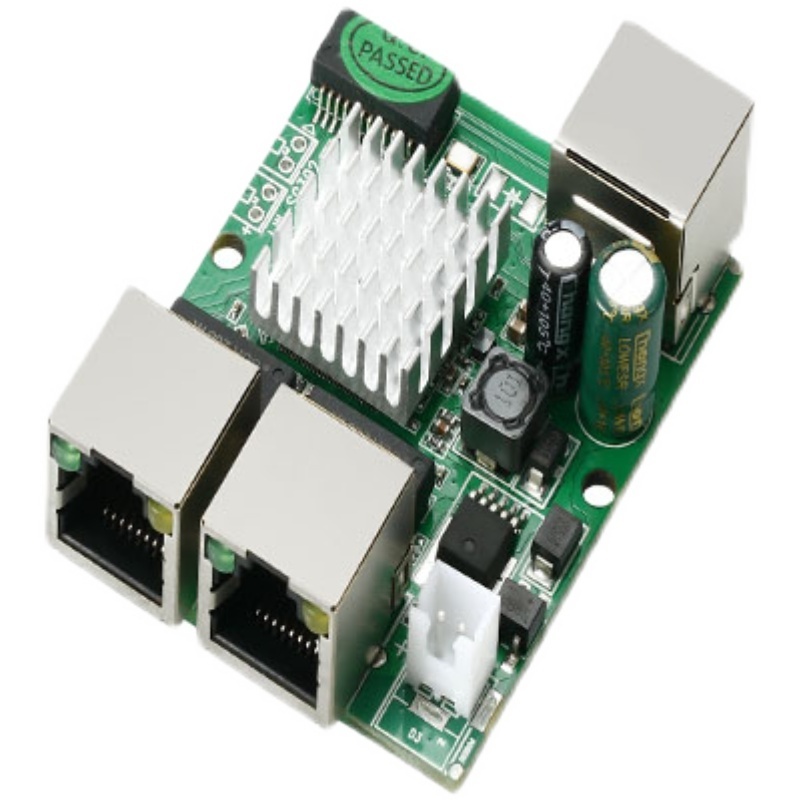

SG302 POE is a high quality reliable design mini 2 ports gigabit poe switch board.Support DC voltage 9-60v wide range input or POE 9-62V. It provides 3 10/100/1000mbps auto-sensing rj45 port,one port back two ports front,easy for closet wiring layout.Mini compact size 59*50mm.
It's widely used for soho/factory/hotel/school/campus/building etc network deployment engineering project.
It's widely used for soho/factory/hotel/school/campus/building etc network deployment engineering project.
Features
1,All 3 10/100/1000mbps rj45(90degree)
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
4,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
5,Auto MDI/MDIX.
6,Unmanaged,plug n play,no need configuration
7,Store-and-forward.
8,All ports support wire speed store-and-forward, jumbo frame transmission.
9,LED indicators monitor working status,supporting simple trouble shooting
11,9-62v DC in or 5-60V POE in,2 ports poe out,or 1 port poe out,dc out(can be used as poe switch or poe repeater)
12,size 59*50*18mm
1,All 3 10/100/1000mbps rj45(90degree)
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
4,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
5,Auto MDI/MDIX.
6,Unmanaged,plug n play,no need configuration
7,Store-and-forward.
8,All ports support wire speed store-and-forward, jumbo frame transmission.
9,LED indicators monitor working status,supporting simple trouble shooting
11,9-62v DC in or 5-60V POE in,2 ports poe out,or 1 port poe out,dc out(can be used as poe switch or poe repeater)
12,size 59*50*18mm
Specification
|
Standard: IEEE 802.3 10base-T Network
IEEE 802.3U 100BASE-T FASCT Network IEEE 802.3X flow control Protocol: the CSMA/CD Forwarding rate Ethernet :10Mbps (half-duplex)20Mbps (full dual I),10Mbps:14,880 PPS Fast Ethernet 100Mbps(half-duplex), 200Mbps (full dual I).100Mbps :148800pps Topological structure: star shape Network media: 10BASE-T: Class 3 or more UTP(< 100 m) 100 base - TX: five types of UTP (S100m) Number of ports: Three 10/100/1000M in-state interfaces Cascading: All ports can be used as up-link ports Forwarding mode: store and forward Temperature: Operating temperature :-35C~ 90C Humidity Storage temperature: -40C-70C (-40 F-158F) Working humidity :10%-90% no condensation Storage humidity :5% to 95% without condensation LED indicator: 1 power light (power light: red light) 3 data lights (Link/Act green light) Product size (WxH X D) : 59*50*18 Application power supply: external power supply DC 5V1A-60V Shell material: None Certification: ce, rohs |
