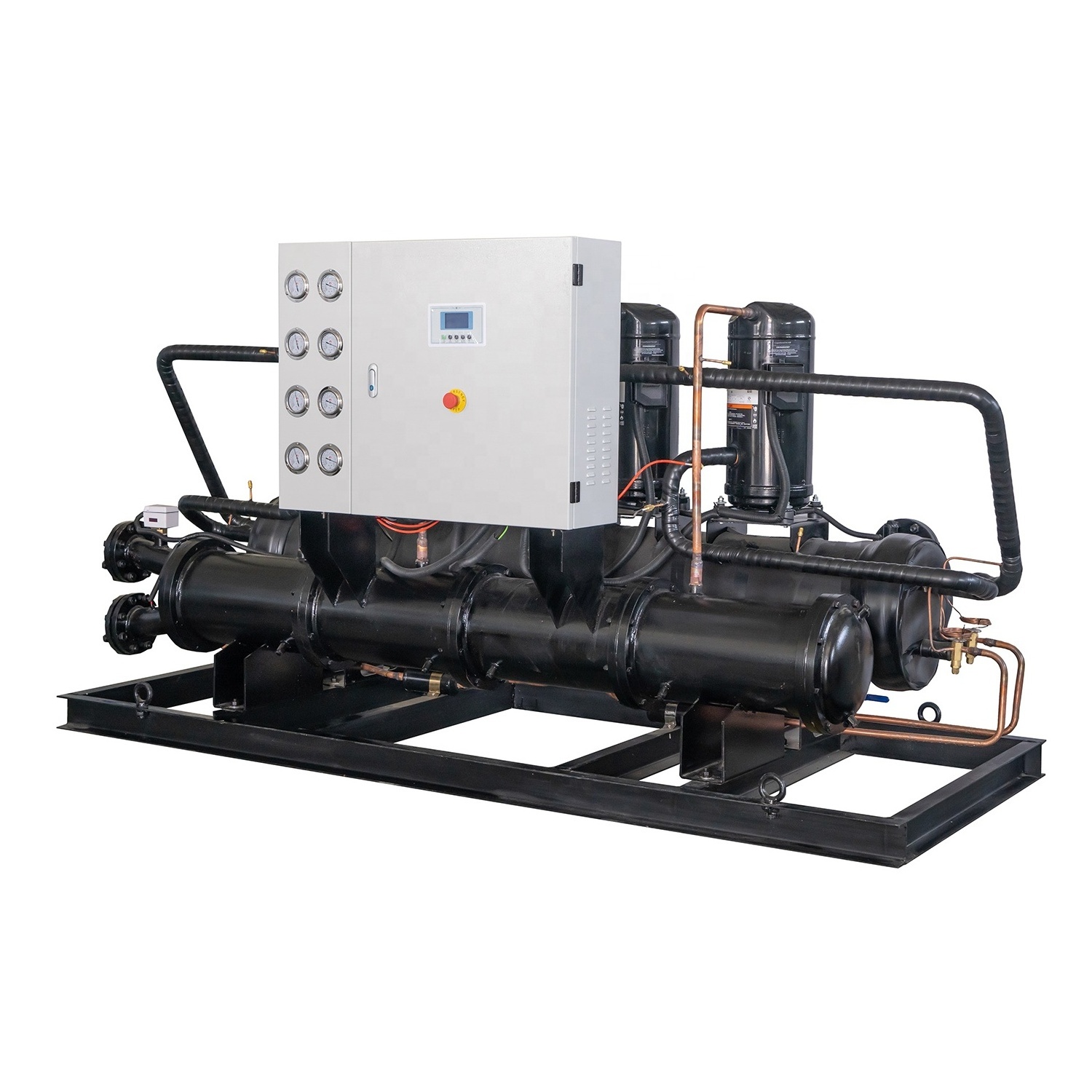

30 tons 40Tons 50TR Scroll type Emerson Copeland Industrial Water Cooled Chiller

1.Higher COP due to its water cooled condenser,  that will be cooled by cooling tower

2. low noise, without air fans

3. can be installed both indoor and outdoor

4. prie is much cheaper

5. Both open type and packed type available

Design features
-Water temperature range 5ºC to 35ºC.
-Danfoss/Copeland scroll compressor, 2-4 units compressors design to save energy and power.
- Shell and tube type evaporator, high efficient and easy installation(plate type, tank with coil type available on request).
-Shell and tube condenser, which to connect with cooling tower and release the heat.
-Microcomputer control system offering accurate temperature stability within ±1ºC.
-Large flow volume centrifugal pump, higher pressure available on request.
-Multi-protection devices to make sure the chiller and the equipment running safety.
-Schneider electrical components.
-Danfoss/Emerson thermal components.

Unit Safety Protection
-Compressor inner protection
-Over current protection
-High/low pressure protection
-Over temperature protection
-Flow switch
-Phase sequence/phase missing protection
-Low coolant level protection
-Anti freezing protection
-Exhaust overheat protection

Brand: Copeland/ Danfoss/ Panasonic

4 units or 2 units available for water cooled chiller

Refrigerant R22/ R407C/ R404A/ R410A

Evaporator: shell and tube, to connect with water tank and take away the heat from process

Condenser: shell and tube, cooled by cooling tower, high efficiency

Cold water circulation water pumps, 2 units installed inside the chiller, one use and one standby

Microcomputer controller, each working status can be checked; Adopt Schneider electric elements

Outlet water temeprature : 5C to 30C

Electric power supply options: 3phase-220v/380v/415v/460v-50hz/60hz

2-4 units compressors to save power and work indepently

High COP due to lower condensing water temperature for cooling tower

Cooling capacity: 2 ton ~ 80ton in production

Open type water cooled chiller above available

Less installation space required, easy for operation, installation indoor

Package type water cooled chiller available

Installation outdoor and indoor, safety move

1-  water cooled chiller

2- Cooling tower

3- Cooling pumps

4- Chilled water pumps

5- Water tank

Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc.
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc

1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry---provide us all clear requirements.
.Quotation---quotation form with all clear specifications.
.Contract confirmation---provide correct contract details.
.Payment terms--- T/T 30% in advanced, balanced before shipment.
.Production---mass production
.Testing: to ensure the quality of the machine
.Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

If you are looking for the most suitable Water Chiller, MGREENBELT Chiller is the right choice. Call our sales manager for further guidance on the models, sizes, and configurations, and place your order at a very reasonable price. Jinan Mgreenbelt Machinery Co.,Ltd. Contact: Miss Libra Email: libra(at)mgreenbelt.com Mobile: +86-17686681007 Whatsapp /Wechat: +86-17686681007 Product qualified with CE, Saber, UL, CRN certificate.
