- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Flexible pcb
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topfast
-
Copper Thickness:
-
2oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
3/3mil
-
Min. Line Spacing:
-
3/3mil
-
Surface Finishing:
-
Gold Finger,Immersion Silver,Immersion Tin
-
Product name:
-

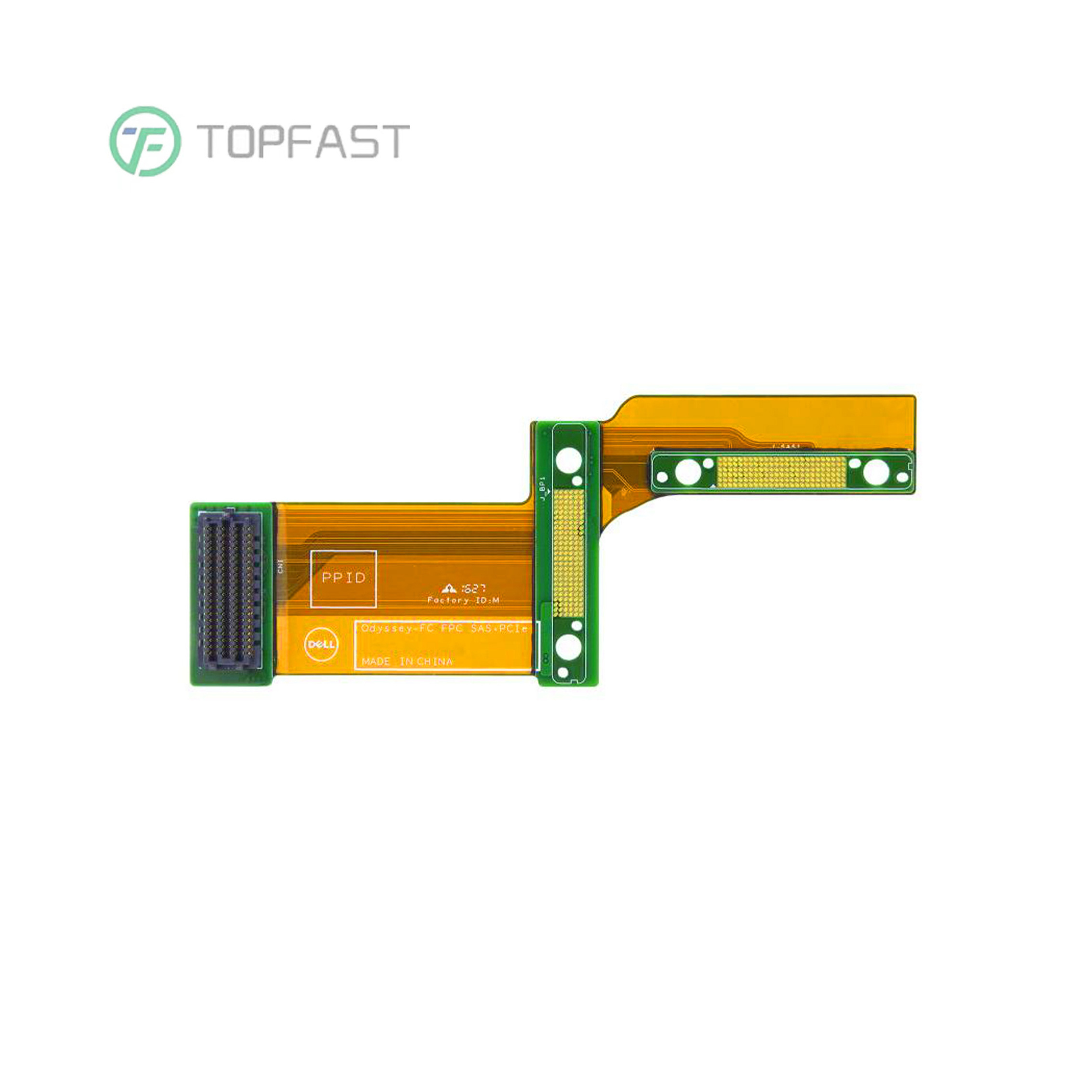

Flexible Printed Circuit Board
-
Solder mask color:
-
Yellow. Optional
-
Service:
-
One-stop Service
-
Application:
-
Consumer Electronics
-
Surface:
-
Pure Copper
-
PCB Standard:
-
IPC-A-610 D/IPC-III Standard
-
Keyword:
-
flexible pcb
-
MOQ:
-
1piece
-
Test:
-
100% Electrical
-
Certificate:
-
ISO/ROHS/CE
Quick Details
-
Base Material:
-
Copper or aluminum
-
Board Thickness:
-
0.1-0.5mm
-
Board Size:
-
9*14inch
-
Model Number:
-
Flexible pcb
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topfast
-
Copper Thickness:
-
2oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
3/3mil
-
Min. Line Spacing:
-
3/3mil
-
Surface Finishing:
-
Gold Finger,Immersion Silver,Immersion Tin
-
Product name:
-
Flexible Printed Circuit Board
-
Solder mask color:
-
Yellow. Optional
-
Service:
-
One-stop Service
-
Application:
-
Consumer Electronics
-
Surface:
-
Pure Copper
-
PCB Standard:
-
IPC-A-610 D/IPC-III Standard
-
Keyword:
-
flexible pcb
-
MOQ:
-
1piece
-
Test:
-
100% Electrical
-
Certificate:
-
ISO/ROHS/CE
|
Technical Capacity
|
|
|
|
|||
|
ltem
|
Rigid PCB
|
Flexible PCB
|
Rigid-Flex PCB
|
|||
|
Max Layer
|
60L
|
8L
|
36L
|
|||
|
Inner Layer Min Trace/Space
|
3/3mil
|
3/3mil
|
3/3mil
|
|||
|
Out Layer Min Trace/Space
|
3/3mil
|
3.5/4mil
|
3.5/4mil
|
|||
|
Inner Layer Max Copper
|
6oz
|
2oz
|
6oz
|
|||
|
Out Layer Max Copper
|
6oz
|
2oz
|
3oz
|
|||
|
Min Mechanical Driling
|
0.15mm
|
0.1mm
|
0.15mm
|
|||
|
Min Laser Drilling
|
0.1mm
|
0.1mm
|
0.1mm
|
|||
|
Max Aspect Ratio(Mechanical Driling)
|
20:1
|
10:1
|
12:1
|
|||
|
Max Aspect Ratio(Laser Drilling)
|
1:1
|
/
|
1:1
|
|||
|
Press Fit Hole Ttolerance
|
±0.05mm
|
±0.05mm
|
±0.05mm
|
|||
|
PTH Tolerance
|
±0.075mm
|
±0.075mm
|
±0.075mm
|
|||
|
NPTH Tolerance
|
±0.05mm
|
±0.05mm
|
±0.05mm
|
|||
|
Countersink Tolerance
|
±0.15mm
|
±0.15mm
|
±0.15mm
|
|||
|
Board Thickness
|
0.4-8mm
|
0.1-0.5mm
|
0.4-3mm
|
|||
|
Board Thickness Tolerance(<1.0mm)
|
±0.1mm
|
±0.05mm
|
±0.1mm
|
|||
|
Board Thickness Tolerance(≥1.0mm)
|
±10%
|
/
|
±10%
|
|||
|
Min Board Size
|
10*10mm
|
5*10mm
|
10*10mm
|
|||
|
Max Board Size
|
22.5*30inch
|
9*14inch
|
22.5*30inch
|
|||
|
Contour Tolerance
|
±0.1mm
|
±0.05mm
|
±0.1mm
|
|||
|
Min BGA
|
7mil
|
7mil
|
7mil
|
|||
|
Min SMT
|
7*10mil
|
7*10mil
|
7*10mil
|
|||
|
Min Solder Mask Clearance
|
1.5mil
|
3mil
|
1.5mil
|
|||
|
Min Solder Mask Dam
|
3mil
|
8mil
|
3mil
|
|||
|
Min Legend Width/Height
|
4/23mil
|
4/23mil
|
4/23mil
|
|||
|
Strain Fillet Width
|
/
|
1.5±0.5mm
|
1.5±0.5mm
|
|||
|
Bow &Twist
|
0.30%
|
/
|
0.05%
|
|||
