Quick Details
-
Model Number:
-
KW4-Z1
-
Max. Current:
-
10A
-
Operating Temperature:
-
-25°C~+85°C
-
Protection Level:
-
IP40
-
Rating:
-
5~10A 125/250VAC
-
Electrical life:
-
≥10,000 Cycles
-
Mechanical Life:
-
≥100,000 Cycles
-
Color:
-
Green/Black
-
Degree Of Temperature:
-
T85/ T125
-
Actuator Form:
-
No Lever
-
Circuit:
-
Z: SPDT/ T: SPST-NO/ D: SPST-NC
-
Terminal Type:
-
F: Solder/ P: PCB/ L: Left side PCB/ R: Right side PCB
-
Operating Force:
-
0.5N/ 1N/ 1.5N/ 2N/ 3N
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
ZHE
-
Brand Name:
-
Daier
-
Model Number:
-
KW4-Z1
-
Max. Current:
-
10A
-
Operating Temperature:
-
-25°C~+85°C
-
Protection Level:
-
IP40
-
Rating:
-
5~10A 125/250VAC
-
Electrical life:
-
≥10,000 Cycles
-
Mechanical Life:
-
≥100,000 Cycles
-
Color:
-
Green/Black
-
Degree Of Temperature:
-
T85/ T125
-
Actuator Form:
-
No Lever
-
Circuit:
-
Z: SPDT/ T: SPST-NO/ D: SPST-NC
-
Terminal Type:
-
F: Solder/ P: PCB/ L: Left side PCB/ R: Right side PCB
-
Operating Force:
-
0.5N/ 1N/ 1.5N/ 2N/ 3N
-
Certification:
-
CE
KW4 Micro Switch Series
* Nice appearance, tight configuration.
Characteristic: small contact gap, quick action, high sensitivity and small operation travel.
* Long life, high reliability.
* A variety of contact terminals.
* A variety of models with low operating force to high operating force are available.
* A variety of temperature degree.
* Adopt thermosetting plastic or thermoplastic.
* Avariety of levers.
* Widely used in home appliance, electronic equipment, automatic machine, communication equipment, car electron, apparatus and instrument electric motion tool etc.
Product Description
|
Item
|

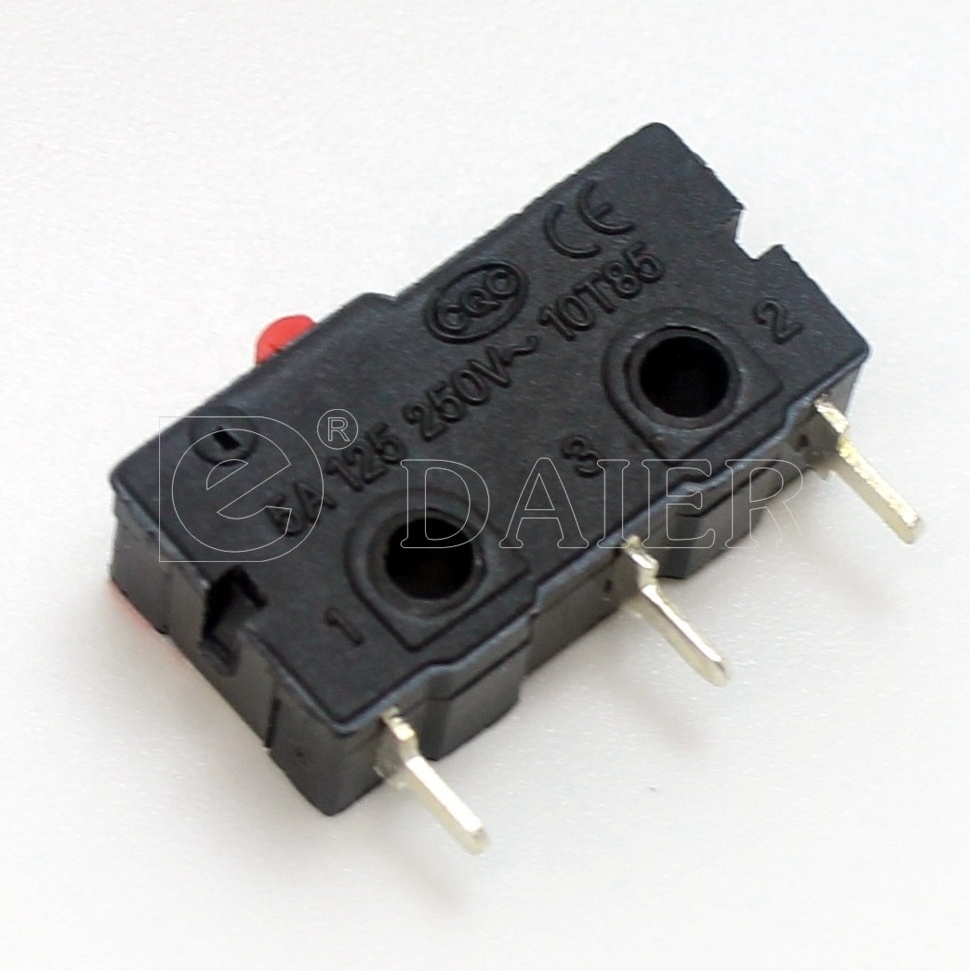

KW4-Z1 no lever micro switch
|
|
|
||
|
Color
|
Green/ Black
|
|
|
||
|
Degree of Temperature
|
T85/ T125
|
|
|
||
|
Circuit
|
Z: SPDT/ T: SPST-NO/ D: SPST-NC
|
|
|
||
|
Terminal Type
|
F: Solder/ P: PCB/ L: Left side PCB/ R: Right side PCB
|
|
|
||
|
Operating Force
|
0.5N/ 1N/ 1.5N/ 2N/ 3N
|
|
|
||
|
OEM or ODM
|
Available
|
|
|
||
Product Show
KW4-Z1F
KW4-Z1P
KW4-Z1R
Workshop
埋词处
Exhibition
Product Certified
Our team
FAQ
1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.
2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
A: Of course, you can send us your design, we'll follow your design.
3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.
A: Yes. we can send you some free samples for your test before your order.
4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.
5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.
8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
A: Yes. we have a research & development dept.
