Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MUP
-
Model Number:
-
M614
-
Plastic:
-
LCP
-
plating:
-
tin,nickel,gold
-
Cover:
-
stainless steel
-
terminal pin:
-
phosphor bronze
-
Switch:
-
Blade switch
-
used for:
-
mobile phone,MP3
-
Durability:
-
5000 cycles Min
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MUP
-
Model Number:
-
M614
-
Plastic:
-
LCP
-
plating:
-
tin,nickel,gold
-
Cover:
-
stainless steel
-
terminal pin:
-
phosphor bronze
-
Switch:
-
Blade switch
-
used for:
-
mobile phone,MP3
-
Durability:
-
5000 cycles Min

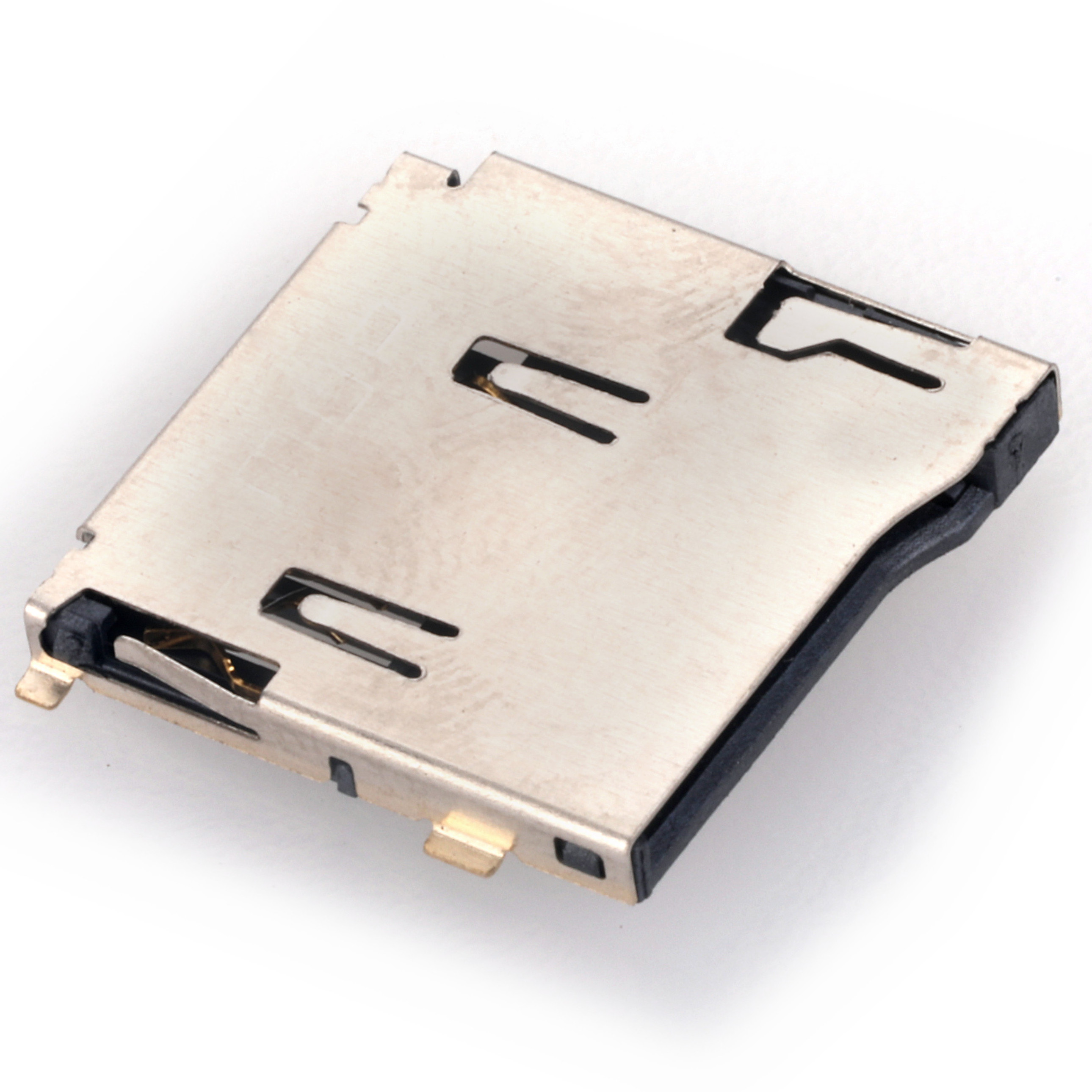

MUP-M614 Memory card Connector
1) 8 Pin
2) SMT Type (Without Post)
3) DIM: 14.50L * 14.75W * 1.85H mm
Product description
1.General characteristics
Dimensions:14.50L*14.75W*1.85H mm
Weight:Approx 0.70g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(without post)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic
3.Electrical characteristics
Number of contact:8pin
Contact resistance:100MΩ max
Insulation resistance:100 MΩ min
4.Solderability
Vaporphase:215 o C,30sec Max
IR reflow:250 o C,5sec Max
Manual soldering:370 o C,3sec Max
5.characteristics
Operating humidity:10% − +95%RH
temperature:-40 o C − +85 o C
Storage humidity:10% − +95%RH
Thermal shock: -40 o C+85 o C,5cycles
Damp Heat:40 o C,90%RH,500H
Salt-mist:35 o C,5%Nacl,48H
Drawing
Certifications
Brief Introduction
|
MOQ |
♦ 2000 pcs |
|
Price Term |
♦ FOB Shenzhen |
|
Payment Terms |
♦ T/T, Paypal |
|
Delivery |
♦ UPS, DHL, FEDEX,TNT ♦ Select the most economic and efficient way. ♦ Sent the tracking number to u after delivery. |
|
Samples |
♦ Free samples will be sent on request. ♦ The samples lead time is within 3-5 days after u confirmed. |
|
Packing |
♦ Inside: reel packing ♦ Outside: carton |
