Quick Details
-
Power:
-
manual
-
Min. Lifting Height:
-
635mm
-
Table Size:
-
980x630x800mm
-
Overall Dimensions:
-
610x915mm
-
Weight:
-
116kg
-
Product Type:
-
Lifting Table
-
Parts List:
-
Yes
-
Manual Operation:
-
Yes
-
ODM/OEM:
-
Yes
-
Option:
-
DC electric motor
-
Component:
-
casters, two rigid and tow swivel with wheel brakes
-
Color:
-
Red
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINOLIFT
-
Power:
-
manual
-
Min. Lifting Height:
-
635mm
-
Table Size:
-
980x630x800mm
-
Overall Dimensions:
-
610x915mm
-
Weight:
-
116kg
-
Product Type:
-
Lifting Table
-
Parts List:
-
Yes
-
Manual Operation:
-
Yes
-
ODM/OEM:
-
Yes
-
Option:
-
DC electric motor
-
Component:
-
casters, two rigid and tow swivel with wheel brakes
-
Color:
-
Red
-
Certification:
-
CE

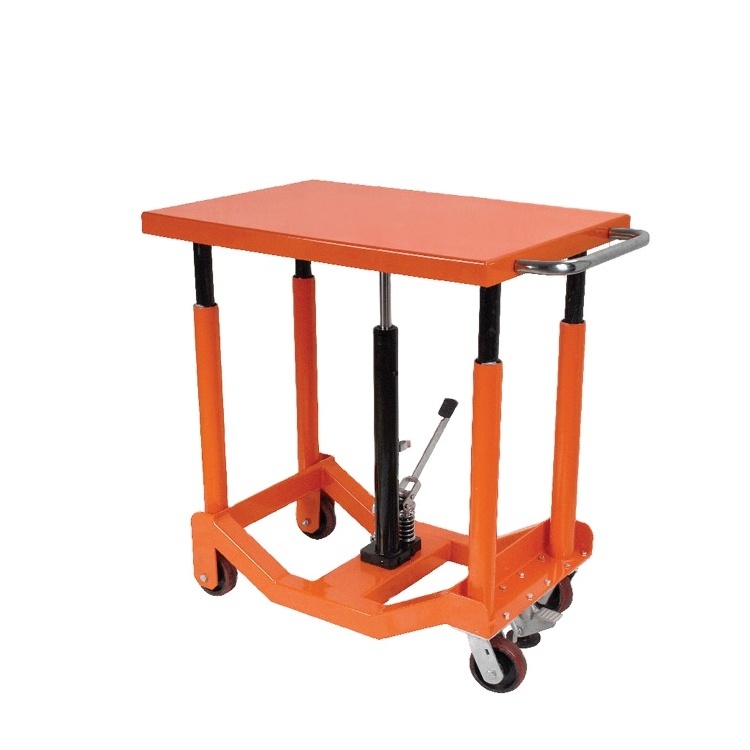

PT18 Manual Post Lift Table
1) Features
Built for fast and efficient lifting, transporting and positioning of equipment and materials. Long lasting hydraulic pump is foot operated providing flexibility and portability .
- Foot-operated hydraulic lift tables for heavy duty shop.
- Auto two speed manual hydraulic foot pump for maximum operation comfort and producting.
- DC electric motor to automatically raise and lower the platform is available.
- All models includes:casters, two rigid and tow swivel with wheel brakes.
2) Specification Data
|
Model |
PT18-10 |
PT18-20 |
PT18-40 |
|
|
Load Capacity |
kg |
455 |
910 |
1820 |
|
Lowest Height |
mm |
635 |
635 |
635 |
|
Lift Height |
mm |
940 |
940 |
940 |
|
Table Dimensions |
mm |
508x762 |
610x915 |
610x915 |
|
Net Weight |
mm |
78 |
101 |
116 |
|
Packing Dimensions |
mm |
810x520x800 |
980x630x800 |
980x630x800 |
|
Qty/1x20" FCL |
pcs |
58 |
36 |
36 |
3) Photos
4) workshop:
5) terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
