Quick Details
-
Model Number:
-
SP-R10
-
Features:
-
Pneumatic rotary stripping
-
Available Wire Dia:
-
10-25mm
-
Stripping Length:
-
1-100mm
-
Stripping Tolerance:
-
±0.2mm
-
Stroke:
-
0-100mm
-
Production Rate:
-
20-40 pcs/min
-
Weight:
-
80kg
-
Dimensions:
-
100*33*43cm
-
Conduit Diameter *:
-
32mm
-
Power:
-
6900W
Quick Details
-
Usage:
-
Stripping
-
Place of Origin:
-
China
-
Brand Name:
-
WIREPRO AUTOMATION
-
Model Number:
-
SP-R10
-
Features:
-
Pneumatic rotary stripping
-
Available Wire Dia:
-
10-25mm
-
Stripping Length:
-
1-100mm
-
Stripping Tolerance:
-
±0.2mm
-
Stroke:
-
0-100mm
-
Production Rate:
-
20-40 pcs/min
-
Weight:
-
80kg
-
Dimensions:
-
100*33*43cm
-
Conduit Diameter *:
-
32mm
-
Power:
-
6900W
|
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |

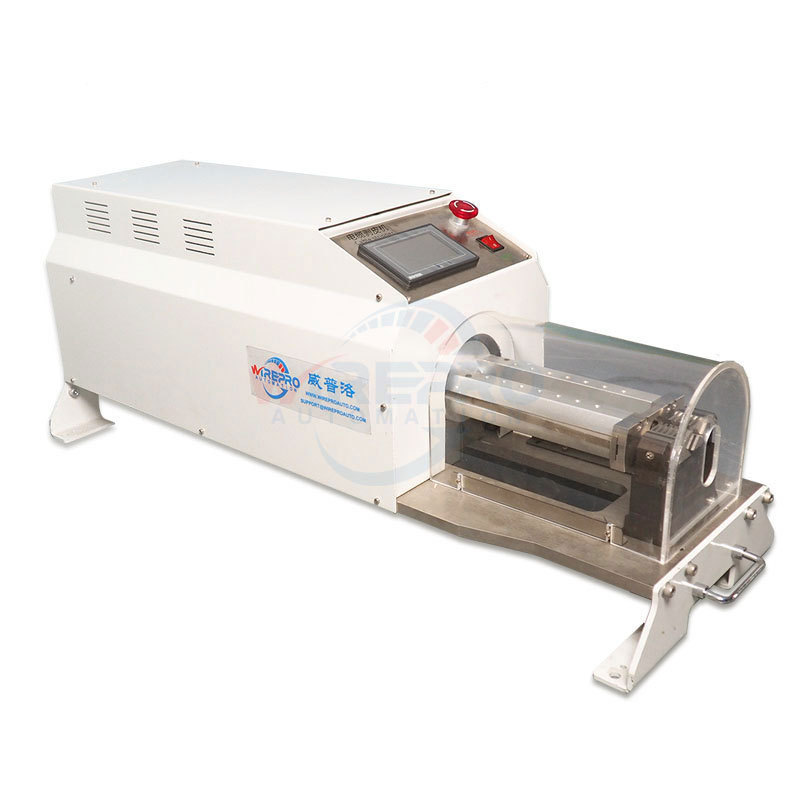

Pneumatic 25mm 35mm 50mm armored armoured cable braided thick cable stripping stripper machine
Machine features:
This series of semi-automatic rotary knife stripping machines are designed for extremely difficult processing big size cables. Widely used in single-strand soft wire, multi-strand soft wire, hard wire, sheath wire, flat wire stripping, etc.
1. Large diameter cable is available
2. Strong stripping ability
3. With special axial positioning and double-rotating blade cutter tools,high-precision rotation
4. Good performance and cost-effective
| Model | SP-R10 | SP-R20 | SP-R30 |
| Features | Pneumatic rotary stripping | ||
| Available Wire Dia | 10-25mm | 10-25mm | 10-50mm |
| Stripping Length | 1-100mm | 1-200mm | 1-300mm |
| Stripping Tolerance | ±0.2mm | ±0.2mm | ±0.2mm |
| Production Rate | 20-40 pcs/min | 20-40 pcs/min | 10-30 pcs/min |
| Stroke | 0-100mm | 0-200mm | 0-280mm |
| Control System | Dedicated controller | ||
| Air Connection | 0.5-0.7 Mpa | ||
| Power Supply | 110/220VAC, 50/60Hz | ||
| Power | 100W | 100W | 300W |
| Weight | 80kg | 80kg | 110kg |
| Dimensions | 100*33*43cm | 100*45*35cm | 140*35*43cm |
Stripping wire samples:
More machine please click here!
A. Small Wire Gauge Wire Cutting and Stripping Machines
B. Multi-cores Cable Cutting and Stripping Machine
C. Coax Cable Cutting and Stripping Machine
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
