Quick Details
-
Rated Lifting Moment:
-
200kn
-
Max. Lifting Height:
-
30m
-
Span:
-
360 degree
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHENGHUA
-
Weight (KG):
-
10000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Painting color:
-
According to your demand
-
Lifting mechanism:
-
Electric hoist
-
Main electrical parts:
-
Siemens/Schneider
-
Power Source:
-
3 Phase 380V 50hz
-
Crane feature:
-
Popular Fixed Pillar Rotatory
-
Limit switch:
-
Included
-
Type:
-
JIB Arm Crane
-
Capacity:
-
20 T
-
Control Method:
-
remote control
Quick Details
-
Marketing Type:
-
New Product
-
Application:
-
workshop, factory, port, etc.
-
Rated Loading Capacity:
-
20ton
-
Rated Lifting Moment:
-
200kn
-
Max. Lifting Height:
-
30m
-
Span:
-
360 degree
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SHENGHUA
-
Weight (KG):
-
10000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Painting color:
-
According to your demand
-
Lifting mechanism:
-
Electric hoist
-
Main electrical parts:
-
Siemens/Schneider
-
Power Source:
-
3 Phase 380V 50hz
-
Crane feature:
-
Popular Fixed Pillar Rotatory
-
Limit switch:
-
Included
-
Type:
-
JIB Arm Crane
-
Capacity:
-
20 T
-
Control Method:
-
remote control
Product Description

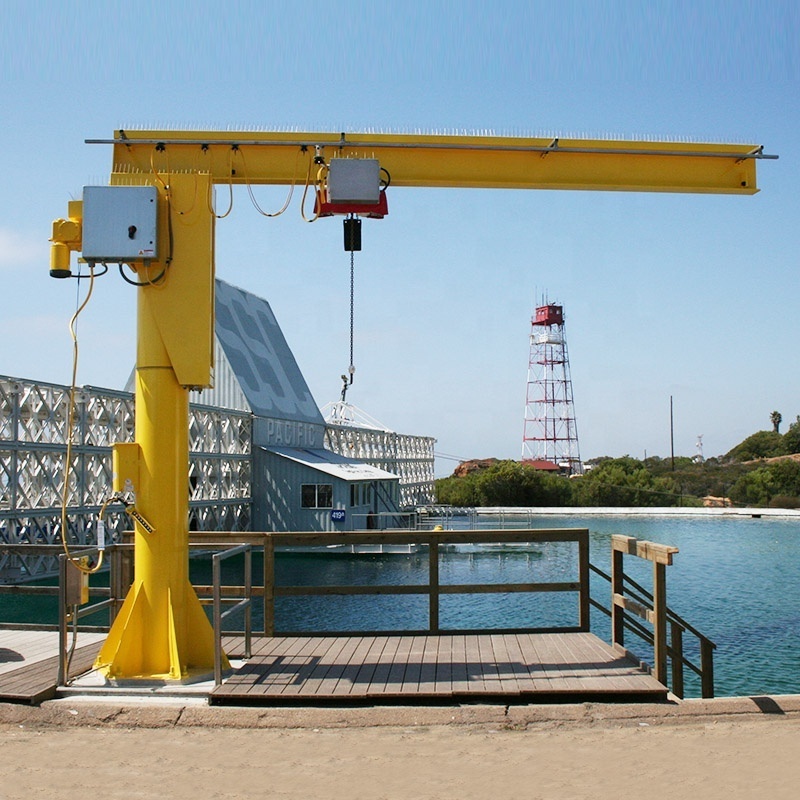

Custom Design 2 Ton 3 Ton 5 Ton Cantilever Swing Arm Slewing Jib Crane for Sale
A jib crane, also known as a "swing jib crane", is a type of crane that utilizes a horizontal arm (known as a jib or boom) to lift and move heavy loads. The jib is attached to a vertical mast or column, which provides support and stability for the crane. Jib cranes are commonly used in industrial settings such as factories, warehouses, and shipyards, as well as in construction sites. They are ideal for lifting and moving materials and equipment in a confined space.
Jib cranes come in a variety of sizes and configurations, from small wall-mounted units to large freestanding cranes that can lift several tons of weight. They are also available with various attachments, such as hooks, grabs, and magnets, to suit different lifting requirements.
Product Paramenters
1. Customized Drawing:
Jib Crane can be customized according to your actual need.
2. Customized Specifications:
Jib Crane
can be customized based on your actual needs, such as capacity, lifting height.
|
Capacity (t)
|
Capacity
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
8
|
10
|
||||||||
|
Max Lifting Height (m)
|
Max Lifting Height
|
3
|
3
|
3
|
3
|
4
|
4
|
6
|
8
|
||||||||
|
Slewing Angel
|
Slewing Angle
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
360°
|
||||||||
|
Lifting Speed
(m/min)
|
Normal
|
4;10;8
|
5;10;8
|
8
|
8
|
8
|
8
|
8
|
8
|
||||||||
|
|
Slow
|
1;2.5;0.8
|
1.25;2.5
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
||||||||
|
Level Travelling Speed (m/min)
|
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||||
|
Slewing Speed
(r/min)
|
|
0.7
|
0.7
|
0.7
|
0.7
|
0.6
|
0.6
|
0.6
|
0.6
|
||||||||
|
Lifting Mechanism
|
|
electric wire rope hoist or electric chain hoist
|
|
|
|
|
|
|
|
||||||||
|
Control Mode
|
|
pendent pushbutton control or remote control
|
|
|
|
|
|
|
|
||||||||
Product Features
Jib Crane Features:
1. Flexibility : configured to meet specific lifting requirements, designed to fit the space available, mounted on walls, floors or ceilings to fit a wide range of applications.
2. Easy to Operate : with simple controls that allow for precise positioning and movement of loads.
3. Compact Size: take up less space, making them ideal for use in confined spaces.
4. Low Maintenance: require minimal maintenance, which helps to reduce downtime and maintenance costs.
5. Customizable: customized with various attachments, such as hooks, grabs, and magnets, to suit different lifting requirements.
Application
Jib cranes have various applications across different industries and sectors. Some common applications of jib cranes include:
♦
Ports and Shipyards
(loading and unloading cargo from ships)
♦
Manufacturing
(assembling heavy machinery, positioning parts during production processes, etc.)
♦
Warehousing and Logistics
(load and unload trucks, stack pallets, and move heavy items)
