Quick Details
-
Certification:
-
UN
-
Model Number:
-
INR 25.2V 50Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
10kg
-
Type:
-
Li-Ion
-
Battery type:
-
Lithium Battery
-
Cycle life:
-
1000 Times
-
Voltage:
-
25.2V
-
Capacity:
-
50ah/70ah
-
Keyword:
-
24v 70ah
-
Product name:
-

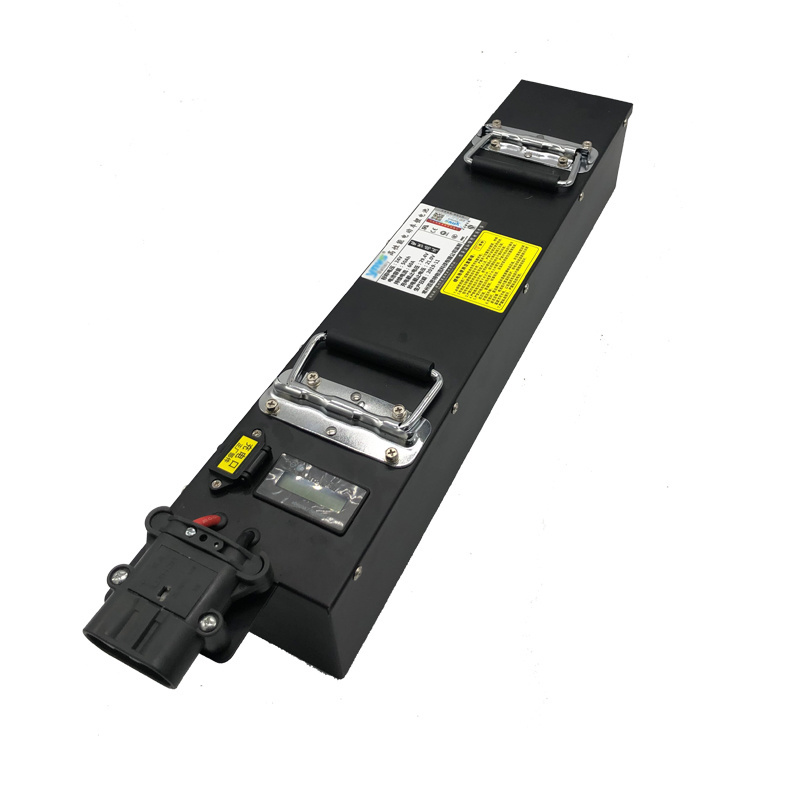

Lithium Ion Battery Pack
-
Usage:
-
AGV
-
Nominal Voltage:
-
25.2V
Quick Details
-
Warranty:
-
1 year, 12 Months
-
Battery Size:
-
25.2v 50ah /70ah
-
Brand Name:
-
idc
-
Certification:
-
UN
-
Model Number:
-
INR 25.2V 50Ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
10kg
-
Type:
-
Li-Ion
-
Battery type:
-
Lithium Battery
-
Cycle life:
-
1000 Times
-
Voltage:
-
25.2V
-
Capacity:
-
50ah/70ah
-
Keyword:
-
24v 70ah
-
Product name:
-
Lithium Ion Battery Pack
-
Usage:
-
AGV
-
Nominal Voltage:
-
25.2V
|
ITEM |
SPECIFICATION |
|
Normal capacity |
|
|
Minimum capacity |
|
|
Normal voltage |
25.2 V |
|
Charge voltage |
29.4 ±0.05 V |
|
Discharge end voltage |
19.25 ±0.05 V |
|
Standard charge current |
10A |
|
Standard discharge current |
25A |
|
Max charge current |
0.5C(T>10℃) 0.2C(0℃-10℃) |
|
Max continous discharge current |
continous 3C,Max5C |
|
Surface charge and discharge batteries maximum temperature |
Charge:0℃-55℃; Discharge:-20℃-60℃ |
|
Working Temperature |
Charge: 0°C ~ 45°C Discharge: -20°C ~ 55°C |
|
Recommended Storage temperature |
15°C ~ 35°C |
|
Internal resistance |
≤28mΩ(AC Impedance, 1000 Hz) |
|
Cell dimension |
Height : 65.5 mm Max Diameter :18.6mm Max |
|
Weight |
≤ 13kg |
|
Cycle life
|
≥800cycle Under room temprature, the cell is charged to 4.2V using 0.5C current and then store it for 10 min. Then it is discharged to 2.75V using 0.5C current. Recycle it continuously till the residual capacity is less than 80% of the rated capacity.
|
Q1:Are you factory?
A1:Yes,we are factory for more than 15years battery experience with superior quality and best price.
Q2:Can I have a sample order?
A2:Yes,we accept sample order to test and check quality firstly.Batteries can be made as your request.
Q3:Do you have MOQ?
A3:No MOQ,but the more you order,the better price you get.All products are always in stocks.
Q4:What's your delivery date?
A4:Usually about 5days for samples,15days for mass orders after payment confirmed.
Q5:What's your terms of payment?
A5:T/T,Paypal,Western Union
Q6:Which shipping method you usually take?
A6:Generally,battery will be shipped via express,UPS,DHL and so on.We can also ship with your own shipping forwarder.
Q7:What kind packing you provide for your products?
A7:We pack the batteries by PE bag/cartons/boxes.Also if you ship with your own agents,we can pack as your agents requested.
Q8:Can you accept Trade Assurance Order or deposit for order?
A8:Yes,welcome to send us trade assurance order anytime.also we can accept 30% deposit just make sure full payment before dispatch.
Q9:What about after-sale service?
A9:We will offer you 1year guarantee.If there are any problems,pls inform us,we'll give the most perfect solutions.
