- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TDER
-
Fork Length:
-
1200mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
1970*1050*2100mm
-
Weight (KG):
-
2230 kg
-
Name:
-

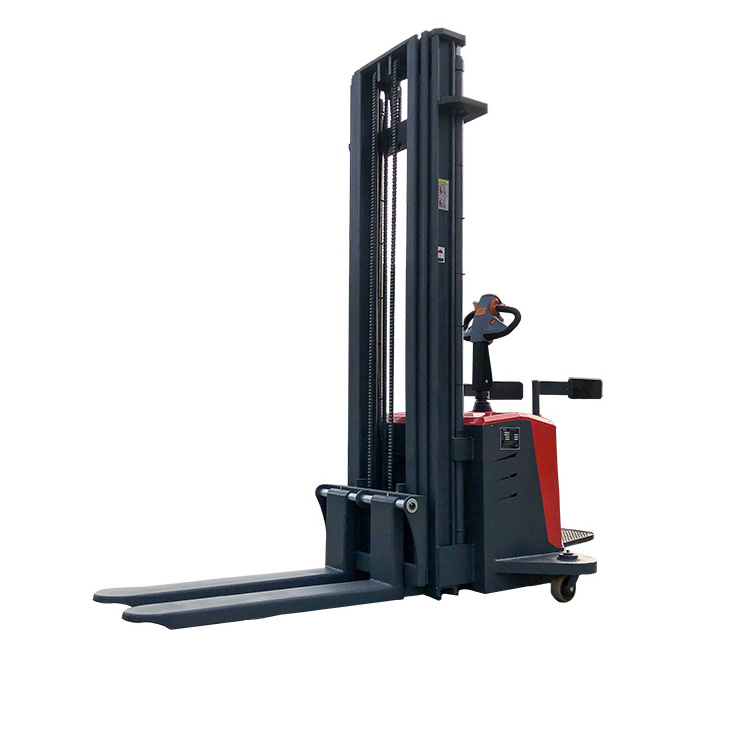

Battery operated stacker forklift 1500kg electric pallet stacker
-
Feature:
-
pallet stacker
-
Power type:
-
AC & DC motor
-
Load center:
-
600mm
-
Service weight with battery:
-
945kg
-
Controller:
-
CURTIS
-
Type:
-
electric stacker
-
Battery capacity:
-
165/24
-
Min. steering radius:
-
1540mm
-
Color:
-
Customized Color
Quick Details
-
Min. Lifting Height:
-
86mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TDER
-
Fork Length:
-
1200mm
-
Fork Width:
-
180mm
-
Overall Dimensions:
-
1970*1050*2100mm
-
Weight (KG):
-
2230 kg
-
Name:
-
Battery operated stacker forklift 1500kg electric pallet stacker
-
Feature:
-
pallet stacker
-
Power type:
-
AC & DC motor
-
Load center:
-
600mm
-
Service weight with battery:
-
945kg
-
Controller:
-
CURTIS
-
Type:
-
electric stacker
-
Battery capacity:
-
165/24
-
Min. steering radius:
-
1540mm
-
Color:
-
Customized Color
Details
|
Model
|
unit
|
TES10
|
TES15
|
TES20
|
||
|
Capacity
|
kg
|
1000
|
1500
|
2000
|
||
|
Lifting height
|
mm
|
1600/2000/2500/3000/3500
|
|
|
||
|
Self height(fork is lowest)
|
mm
|
2050/1580/1830/2080/2330
|
|
|
||
|
Self height(fork is highest)
|
mm
|
2050/2500/3000/3500/4000
|
|
|
||
|
Min fork height
|
mm
|
90
|
90
|
90
|
||
|
Overall length(Pedal opened)
|
mm
|
2330
|
2330
|
2330
|
||
|
Overall length(Pedal closed)
|
mm
|
1830
|
1830
|
1830
|
||
|
Overall width
|
mm
|
850
|
850
|
850
|
||
|
Fork length
|
mm
|
1000
|
1000
|
1000
|
||
|
Load center
|
mm
|
500
|
500
|
500
|
||
|
Material of wheel
|
/
|
Polyurethane
|
Polyurethane
|
Polyurethane
|
||
|
Driving motor
|
w
|
1200
|
1200
|
1200
|
||
|
Lifting motor
|
w
|
2200
|
2200
|
2200
|
||
|
Maximum adjustable outside width
|
mm
|
680
|
680
|
680
|
||
|
Turning radius
|
mm
|
1530
|
1530
|
1530
|
||
|
Battery capacity(oridinary battery)
|
v/ah
|
24v/120ah*2
|
24v/120ah*2
|
24v/120ah*2
|
||
|
Battery capacity(assembled battery)
|
v/ah
|
24v/210ah
|
24v/210ah
|
24v/210ah
|
||
|
Driving speed(full load)
|
km/h
|
4
|
4
|
4
|
||
|
Driving speed(no load)
|
km/h
|
6
|
6
|
6
|
||
|
Lifitng speed(full load)
|
mm/s
|
80
|
80
|
80
|
||
|
Lifitng speed(no load)
|
mm/s
|
130
|
130
|
130
|
||
|
Drop speed(full load)
|
mm/s
|
110
|
110
|
110
|
||
|
Drop speed(no load)
|
mm/s
|
90
|
90
|
90
|
||
|
Driving wheel size
|
mm
|
250*80
|
250*80
|
250*80
|
||
|
Load wheel size
|
mm
|
80*70
|
80*70
|
80*70
|
||
|
Steering wheel size
|
mm
|
100*50
|
100*50
|
100*50
|
||
|
Gradability(full load)
|
%
|
5
|
5
|
5
|
||
|
Gradability(no load)
|
%
|
8
|
8
|
8
|
||
|
Braking way
|
/
|
electromagnetic brake
|
electromagnetic brake
|
electromagnetic brake
|
||
|
Noise level
|
fb
|
75
|
75
|
75
|
||
|
Way to adjust the speed
|
/
|
MOS
|
MOS
|
MOS
|
||
TDER 1.5ton electric stacker 2ton walkie counterbalance pallet stacker
FAQ
1. What Certificate do you have?
TDER
workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
