Quick Details
-
Place of Origin:
-
Sichuan, China
-
Condition:
-
Aftermarket 100% Brand New
-
Piston Material:
-
Forged Aluminum
-
Actual Displacement:
-
799 cc
-
Bore size:
-
STD 91 mm
-
Piston diameter:
-
90.6 mm
-
Piston height:
-
50 mm
-
Stroke:
-
62 mm
Quick Details
-
Material:
-
Aluminium
-
Brand Name:
-
NP NEW PULSATION
-
Model Number:
-
Can Am 1000
-
Place of Origin:
-
Sichuan, China
-
Condition:
-
Aftermarket 100% Brand New
-
Piston Material:
-
Forged Aluminum
-
Actual Displacement:
-
799 cc
-
Bore size:
-
STD 91 mm
-
Piston diameter:
-
90.6 mm
-
Piston height:
-
50 mm
-
Stroke:
-
62 mm
Front N Rear Cylinder w/ Piston Kit for Can Am 1000 Commander Outlander Renegade
Features:
Kit includes cylinder(front + rear) piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 91 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Details Images
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Bore Type: Stanard Bore
Bore Size: STD 91 mm
Placement on Vehicle: Front, Rear
Fit for
Fit for Can-Am BRP Commander 1000 2011-2017
Fit for Can-Am BRP Commander Max 1000 2014-2017
Fit for Can-Am BRP Outlander 1000 4x4 EFI 2012-2015
Fit for Can-Am BRP Outlander Max 1000 4x4 EFI 2013-2015
Fit for Can-Am BRP Outlander 1000 4x4 EFI 2016-2017 Except 1000(R)
Fit for Can-Am BRP Outlander Max 1000 4x4 EFI 2016-2017 Except 1000(R)
Fit for Can-Am BRP Outlander 1000 4x4 T3 2018-2020 (Only T3 Models)
Fit for Can-Am BRP Outlander Max 1000 4x4 T3 2018-2020 (Only T3 Models)
Fit for Can-Am BRP Outlander 1000 6X6 EFI 2014-2020
Fit for Can-Am BRP Outlander Max 1000 6X6 EFI 2014-2020
Fit for Can-Am BRP Renegade 1000 4x4 2012-2015
Fit for Can-Am BRP Renegade 1000 T3 2018-2020 (Only T3 models)
Fit for Can-Am BRP Renegade 1000R 2016-2019
Fit for Can-Am BRP Defender HD10 2016-2021
Fit for Can-Am BRP Defender Max HD10 2017-2021
Fit for Can-Am BRP Defender Pro HD10 2020-2021
Fit for Can-Am BRP Maverick 1000 2013-2018
Fit for Can-Am BRP Maverick 1000R 2013-2018
Fit for Can-Am BRP Maverick Max 1000R 2013-2017
Fit for Can-Am BRP Maverick Sport 1000 2019-2021
Fit for Can-Am BRP Maverick Sport 1000R 2019-2021
Fit for Can-Am BRP Maverick Sport Max 1000R 2019-2021
Fit for Can-Am BRP Maverick Trail 1000 2019-2021
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Packing & Delivery

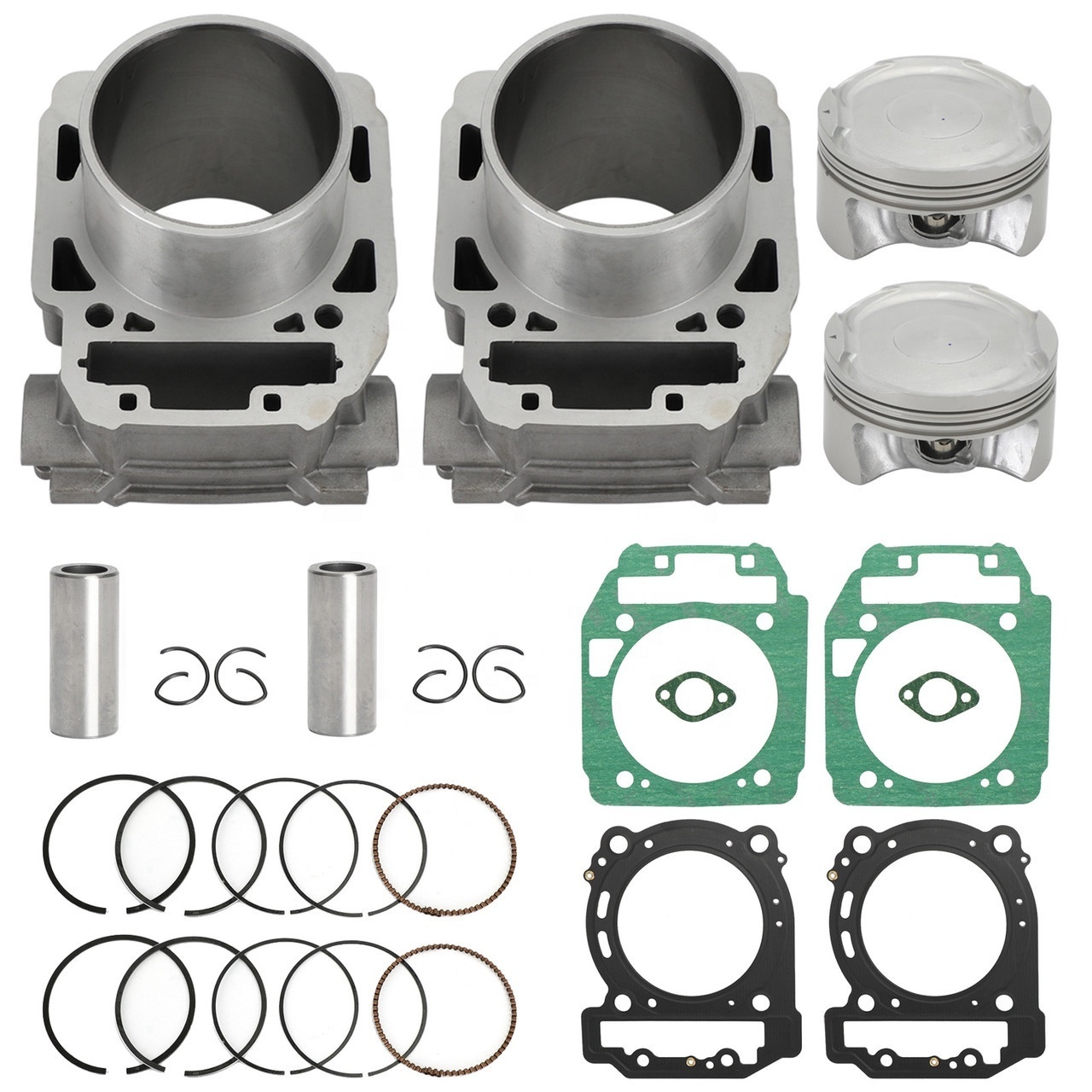

2 x 91mm Cylinders (Front and Rear)
2 x Pistons
2 set x Piston rings
2 x Wristpins
4 x Circlips
2 set x Cylinder Head Gaskets
2 set x Cylinder Base Gaskets
2 set x Chain Tensioner Gaskets
Note:
Front cylinder and rear cylinder cannot be exchanged, the tensioner holes are opposites.
There's two cylinder head gasket type, please check out the pictures to make sure our is what you want.
