2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply

2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply

FOB Reference Price: Get Latest Price
≥1 Pieces
US $200000
≥3 Pieces
US $185000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Overall Dimensions:
11340*(6053-12185)*4770mm
Weight (KG):
72000 kg
Application:
Lifting Heavy Items
Driving type:
Walkie Electric Pallet Lifter

Quick Details

Warranty:
1 Year
Place of Origin:
Jiangsu, China
Brand Name:
Chinese Famous Brand
Overall Dimensions:
11340*(6053-12185)*4770mm
Weight (KG):
72000 kg
Application:
Lifting Heavy Items
Driving type:
Walkie Electric Pallet Lifter
Product Description
2024 China 45 ton Loaded Container Handler Sale Port Empty Container Handler SRSC45H1With Factory Supply

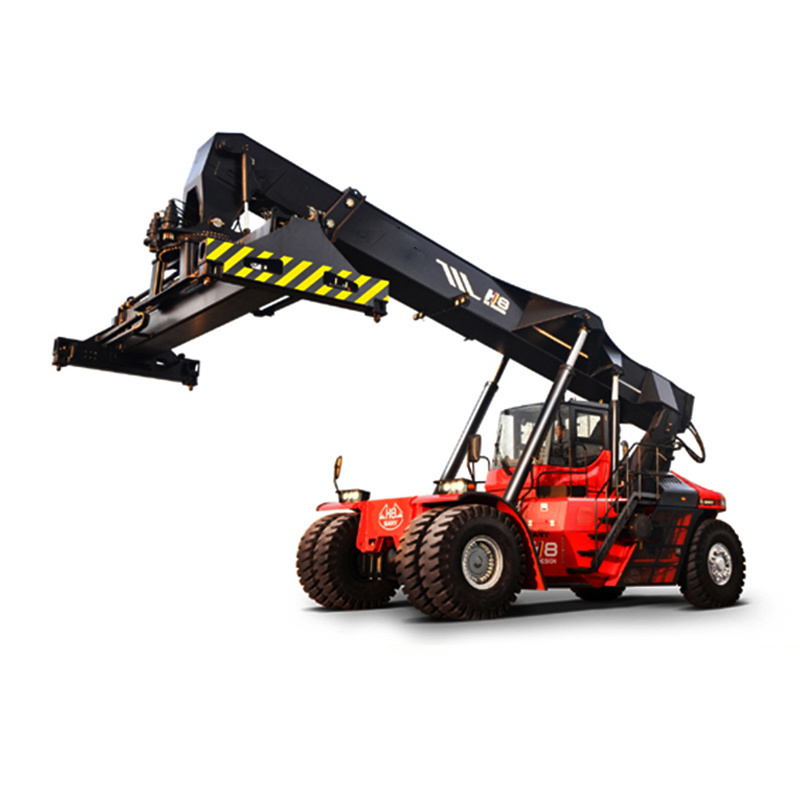

Reach stacker SRSC45H1 is mainly used in ports, wharfs and storage yards to handle, transfer and stack various containers and other materials. With many product series such as heavy, overweight hurdling, light, empty container and off-road reach stackers,
reach stacker SRSC45H1 can accommodate various industries, bringing you the maximum economic benefit.

Safe and Reliable:
Dynamic Anti-rollover Protection
Uses intelligent control technology to detect equipment's real-time working parameters and automatically adjust the operating status under dangerous conditions to prevent rollover, keeping you safe on the job.

Anti-collision Technology
By using intelligent control to regulate the positions of spreaders and booms, the reach stacker can effectively prevent collision among the spreader, frame and boom. This technology helps eliminate accidents by faulty operation.

Specification
arameter
Unit
SRSC45H1
SRSC45H2
SRSC45H3


engine
model
-
TAD1151
QSM11
TAD1171VE
rated capacity
kW/rpm
265/2100
250/2100
265/2100
max torque
Nm/rpm
1780/1260
1674/1400
1785/1260
emission standard
-
III
III
IV
gearbox model
-
15.5HR36000
15.5HR36000
15.5HR36000
axle model
-
D102 PL341
D102 PL341
D102 PL341


spreader
model
-
SDJ450FA
SDJ450FA
SDJ450FA
shift distance
mm
±800
±800
±800
slewing angle
deg
+105/-195
+105/-195
+105/-195
inclination angle
deg
-
-
-
weight
t
7.8
7.8
7.8
application
-
ISO20'/40'/45'
ISO20'/40'/45'
ISO20'/40'/45'
boom
max hoisting height
mm
15100
15100
15100
inclination angle
deg
0~60
0~60
0~60
tyre
-
18.00-25 40PR
18.00-25 40PR
18.00-25 40PR
max hoisting speed(unloaded/loaded)
mm/s
420/250
420/250
420/250
max descending speed(unloaded/loaded)
mm/s
360/300
360/300
360/300
max travelling speed(unloaded/loaded)
km/h
25/21
25/21
25/21
gradeability(unloaded/loaded)
%
39/32
39/32
39/32
hydraulic system pressure
bar
260
260
260
overall weight
t
72
72
72
rated capacity
t
45
45
45
No. of stack
-
5 (9'6"/8'6")
5 (9'6"/8'6")
5 (9'6"/8'6")
overall length
mm
11340
11340
11340
wheel base
mm
6000
6000
6000
overall height
mm
4770
4770
4770
min ground clearance
mm
350
350
350
overall width
mm
6053-12185
6053-12185
6053-12185
balance weight movable distance
mm
-
-
-
front tyre distance
mm
3033
3033
3033
rear tyre distance
mm
2790
2790
2790
min turing radius
mm
8000
8000
8000
20' container aile width
mm
11300
11300
11300
