Quick Details
-
Material:
-
Copper
-
Product name:
-
Fully insulated butt splice
-
Color:
-
Color
-
Certificate:
-
UL
-
Packing:
-
1000pcs/bag
-
A.W.G:
-
22-16 16-14 12-10
-
Sample:
-
Available
-
Rated Current:
-
48A
-
Brand:
-
HUASU
-
Standard:
-
International
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUASU
-
Model Number:
-
BV
-
Material:
-
Copper
-
Product name:
-
Fully insulated butt splice
-
Color:
-
Color
-
Certificate:
-
UL
-
Packing:
-
1000pcs/bag
-
A.W.G:
-
22-16 16-14 12-10
-
Sample:
-
Available
-
Rated Current:
-
48A
-
Brand:
-
HUASU
-
Standard:
-
International
Product Description

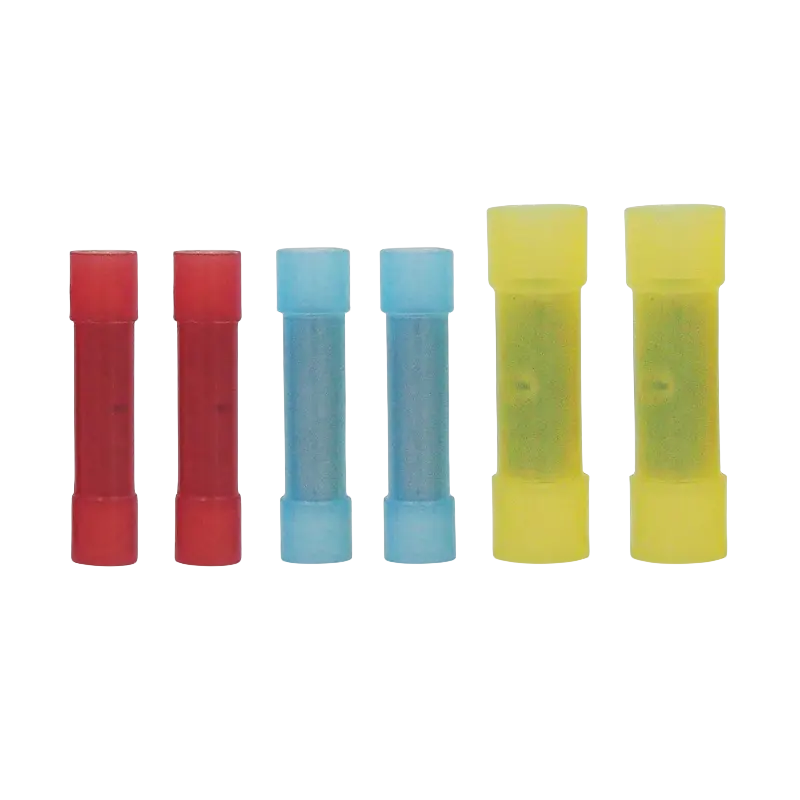

Nylon Fully Insulated Butt Splice
Electrolytic Copper Tube
Tin Plated
P.V.C.Insulation
Made by high quality copper.
Insulated,safe and easy to use.
| Type | Dwire Range | L | E | ΦD | Φd | Color | MAX current | |
| AWG/MCM | mm² | 2.4 | ||||||
| BV1.25N | 22-16 | 0.25-1.65 | 23.7 | 15 | 4 | Red | 19 | |
| BV2N | 16-14 | 1.04-2.63 | 23.7 | 15 | 4.5 | Blue | 27 | |
| BV5.5N | 12-10 | 2.63-6.64 | 23.7 | 15 | 4 | Yellow | 48 | |
