Quick Details
-
Voltage:
-
factory voltage
-
Power:
-
50-60Hz
-
Dimension(L*W*H):
-
L2000 X W1200 X H840mm
-
Applicable Industries:
-
Coating field
-
Weight (KG):
-
600
-
Kinds of coating:
-
Rotating Automatic Spraying and drying machine
-
Usage:
-
spray painting line
-
Install location:
-
Spraying Room
-
Spraying method:
-
Automatic Gun Fixed Spraying
-
Coating color:
-
Multi Color
-
After-sales Service Provided:
-
Video Technical Support
-
Conveyor chain:
-
Special Chain
-
Spraying Guns:
-
Japan ANEST IWATA Brand WA-101
-
Coating Technology:
-
Fully Automatic Spraying
-
Application:
-
Plastic Product,Round product,Irregualar product etc
Quick Details
-
Machine Type:
-
automatic spray painting machine, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Pre-treatment Equipment, Conveying Equipment, Drying Oven, Curing oven, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINQINFENG
-
Voltage:
-
factory voltage
-
Power:
-
50-60Hz
-
Dimension(L*W*H):
-
L2000 X W1200 X H840mm
-
Applicable Industries:
-
Coating field
-
Weight (KG):
-
600
-
Kinds of coating:
-
Rotating Automatic Spraying and drying machine
-
Usage:
-
spray painting line
-
Install location:
-
Spraying Room
-
Spraying method:
-
Automatic Gun Fixed Spraying
-
Coating color:
-
Multi Color
-
After-sales Service Provided:
-
Video Technical Support
-
Conveyor chain:
-
Special Chain
-
Spraying Guns:
-
Japan ANEST IWATA Brand WA-101
-
Coating Technology:
-
Fully Automatic Spraying
-
Application:
-
Plastic Product,Round product,Irregualar product etc
Glass cup bottle coating production line of automatic spray painting machine
Production Features:
- Operate easy and simple,single person can operate it
- Mini type,Occupy small area
- Automatic spraying,high efficiency, Save labor cost
- Factory Price,Competitive price
- High quality,One year Warranty
Product Specification:
|
No. |
Item |
Specification |
|
1 |
The external dimension of the Rack |
The dimension: L2900mm x D1100mm x H850mm (1 set) |
|
2 |
The rack |
The rack is made of welding 50# square box section. The bottom of rack has the truckle and foot cup. The height is adjustable. The rack is sealed by the plate , The structure is compact and generous. |
|
3 |
The Conveyor Chain |
The conveyor chain use special chain of automatic line. the pitch is 50.8mm, the total length is 6.4m. Each two pitch distance use one special fixture for the product. |
|
4 |
The Motor |
The motor use Taiwan imported 0.5HP gear reducer motor to transmission. The speed of chain is adjusted by adopting 1HP ZONCN frequency transformer. The chain speed is adjustable within 0.1m/min- 5m/min. The frequency control of the motor speed is energy saving. |
|
5 |
The Friction Rotation Devise |
It has two sets of special friction system, The motor adopts 200W electronic speed regulating motor. It can positive and negative rotation. |
|
6 |
The Electronic Control |
The electronic control is mainly use China famous brand CHINT brand.The indicator light, the switch,relay and contacts are equipped with the overload protection.The parts of Electronic Control is placed in the below of racks. |
|
7 |
The surface treatment |
Computer white electrostatic powder coating |
|
8 |
Paint and Oil Feeding System |
1. The automatic spray-gun use Japan ANEST IWATA WA-101 automatic spray gun. The caliber is 1.0mm. The qty of the guns is six. A set of adjustable support brackets is equipped. 2. Two sets of trisection diaphragm pumps are equipped. 3. It is equipped with relative oil pipe, Air pipe, pressure regulating valve,oil-water separator and a set of electric magnetic Valve. |

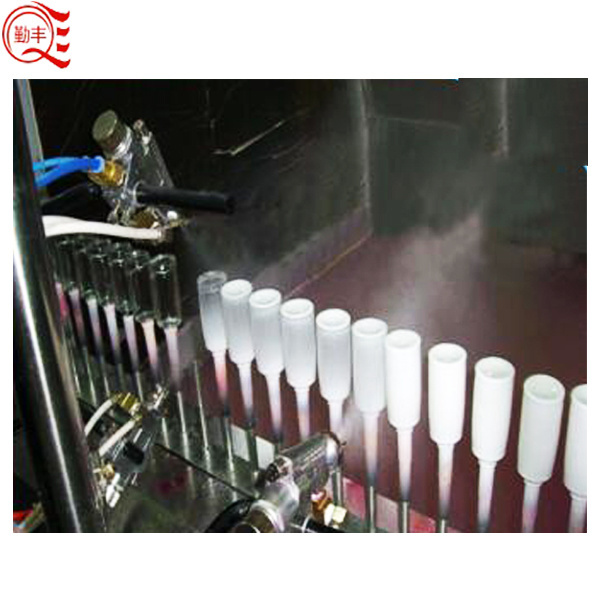

Product Pictures:
Application:
The Mini automatic spraying machine or Mini automatic spraying painting Line is wildly used in the field of plastic,Metal,stainless,glass,wood etc round,cylindrical,conical shapes or other irregular ,small type shapes' furface spraying,such as cellphone shell,glass cup, lamp shell,helmet,bottles,holder,cosmetics lid etc project.
