Quick Details
-
Power (kW):
-
1.5
-
Range of Spindle Speed(r.p.m):
-
5 - 320 r.p.m
-
Place of Origin:
-
China (Mainland)
-
Brand Name:
-
MITR
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
80*60*75
-
Weight (KG):
-
290 KG
-
Item Name:
-
Super fine powder grinding Grinding Grinder Dry Grind Ball Mill
-
Patent1:
-
Safety arc sleeve and safety lock ball mill jar device
-
Patent2:
-
Noise <50db
-
Patent3:
-
Variable frequency
-
Revolution:
-
5-320
-
Rotation:
-
10-640
-
Motor Power:
-
1.5kw
-
Jar material:
-
SS,tungsten carbide,corundum, zirconia,agate,nylon,PTFE,polyurethane
-
product name:
-
Chemicals Ceramic Cocoa Beans Grinding Grinder Dry Grind Ball Mill
-
Capacity:
-
1L-5L
Quick Details
-
Output (kg/h):
-
0.3 - 10 kg/h
-
Feeding Size (mm):
-
3 - 5 mm
-
Output Size (mesh):
-
1000 - 10000 mesh
-
Power (kW):
-
1.5
-
Range of Spindle Speed(r.p.m):
-
5 - 320 r.p.m
-
Place of Origin:
-
China (Mainland)
-
Brand Name:
-
MITR
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
80*60*75
-
Weight (KG):
-
290 KG
-
Item Name:
-
Super fine powder grinding Grinding Grinder Dry Grind Ball Mill
-
Patent1:
-
Safety arc sleeve and safety lock ball mill jar device
-
Patent2:
-
Noise <50db
-
Patent3:
-
Variable frequency
-
Revolution:
-
5-320
-
Rotation:
-
10-640
-
Motor Power:
-
1.5kw
-
Jar material:
-
SS,tungsten carbide,corundum, zirconia,agate,nylon,PTFE,polyurethane
-
product name:
-
Chemicals Ceramic Cocoa Beans Grinding Grinder Dry Grind Ball Mill
-
Capacity:
-
1L-5L
Laboratory Ore Lab Herbal Glass Fine Dry&wet And Wet & Coal Chemicals Ceramic Cocoa Beans Grinding Grinder Dry Grind Ball Mill
Laboratory Ore Lab Herbal Glass Fine Dry&wet And Wet & Coal Chemicals Ceramic Cocoa Beans Grinding Grinder Dry Grind Ball Mill

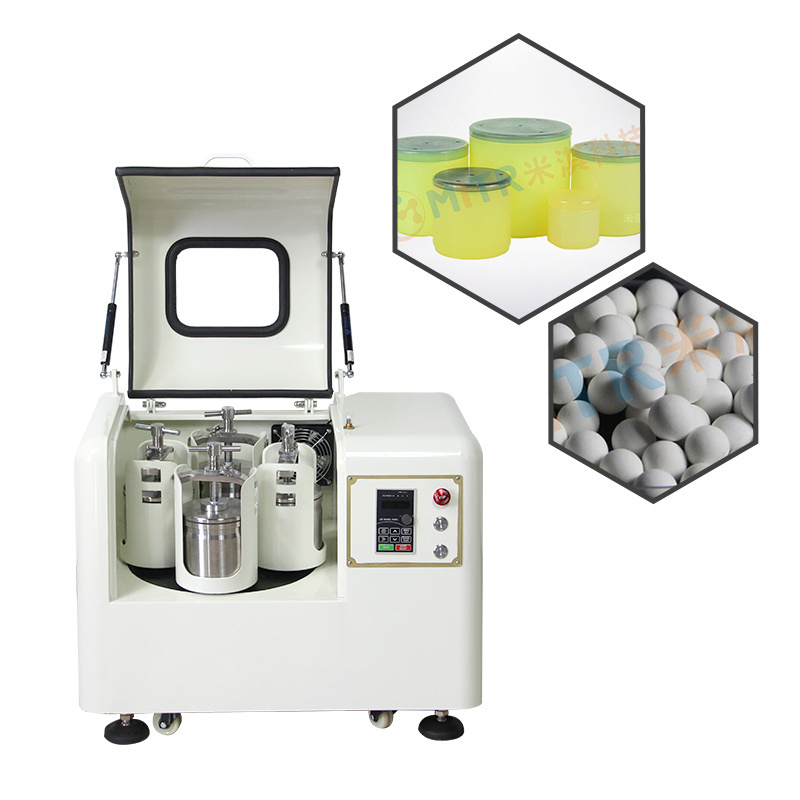

Lab planetary ball mill for super fine powder grinding
Application
Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Instruction:
MITR Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,enterprise laboratory(Four samples can be obtained at the same time in each experiment). The samples could be ground under vacuum state with using the vacuum ball mill jars.
Technical parameter
| Brand | MITR |
| Name | planetary ball mill |
| Model | YXQM-0.4l/1L-Oil seal mute(2L/4L/8L/12L......) |
| application area | Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on. |
| Maximum feeding size | <5mm soil <10mm |
| Discharge granularity | <100nm |
| Minimum capacity | 100ml/250ml jar |
| Maximum capacity | 4*250ml 4*100ml |
| Jar volume selection | 50ml / 100ml/250ML |
| Atmosphere Protection Ball Mill Jar | 100ml |
| Max feeding material per jar | 33ml/83ml |
| Maximum feeding balls per jar | 33ml/83ml |
| Main disk speed | 10-450r/min |
| Ball mill jar speed | 20-900r/min |
| Total grinding speed | 1350/min |
| Transmission ratio | 1:02 |
| Ball mill jar material | Stainless steel /agate/zirconia/ corundum/ tungsten carbide/ nylon/polyurethane/PTFE/ silicon carbide, etc. |
| Ball mill balls material | Stainless steel agate zirconia corundum nylon PTFE optional |
| balls diameter | 1/2/3/5/8/10/15/20/25/30mm |
| balls quality | According to medium material |
| Samples ground at the same time | 4 |
| Jar quantity | 2 or 4 |
| Mode | Vertical planetary |
| size | Semicircle:55*35*40cm vertical:60*40*50cm |
| levels of protection | IP60 |
| Net weight | 70kg |
| grinding mode | dry/wet |
| Electrical description | 100-120V/220-240V AC 50-60Hz 550W (380V) |
| standard: | CE |
| Patent 1:Arc sleeve and safety lock ball mill jar device | Level 5 Safety Protection of U integrated tank sleeve with protection patent-NO. ZL 2015 2 0836150.6 |
| Patent 2:Oil-sealed mute | Planetary gear invading oil seal patent-NO.ZL 2014 2 0375569.1 |
| Patent 3:Variable frequency | frequency control-ZL 2016 2 0288855.3 |
