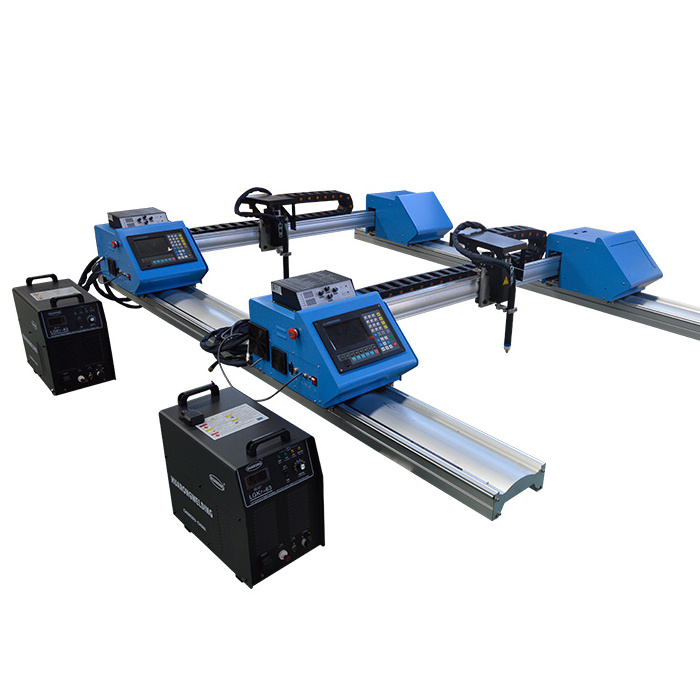

21% discount 2024 Gantry factory price professional CNC laser portable plasma cutting machine for metal

21% discount 2024 Gantry factory price professional CNC laser portable plasma cutting machine for metal

FOB Reference Price: Get Latest Price

≥5 Sets

US $800

≥6 Sets

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: FS1325P

Voltage:: AC380V/50Hz

Rated Power:: 100A

Dimension(L*W*H):: 1850*1450*1650mm

Weight (KG):: 500 KG

Year:: 2024

Marketing Type:: New Product 2024, New Product 2024

Working area:: 1300*2500mm*200mm

Product name:: Plasma Cutting Machine

Working voltage:: AC380V/50HZ

Control System:: START control system

Motor and drive:: Stepping drive and motor

Machine body:: Thicken cast steel structure

Application Material:: steel,aluminum,ect.

Arc pressure:: automatic arc pressure adjustable

Quick Details

Dimensions:: 1300x2500mm

Place of Origin:: Shandong, China

Brand Name:: FS1325P

Model Number:: FS1325P

Voltage:: AC380V/50Hz

Rated Power:: 100A

Dimension(L*W*H):: 1850*1450*1650mm

Weight (KG):: 500 KG

Year:: 2024

Marketing Type:: New Product 2024, New Product 2024

Working area:: 1300*2500mm*200mm

Product name:: Plasma Cutting Machine

Working voltage:: AC380V/50HZ

Control System:: START control system

Motor and drive:: Stepping drive and motor

Machine body:: Thicken cast steel structure

Application Material:: steel,aluminum,ect.

Arc pressure:: automatic arc pressure adjustable

21% discount 2024 Gantry factory price professional CNC laser portable plasma cutting machine for metal

Feature

What's the feature of our Plasma Cutting Machine?

♦ working area: 1300*2500mm

♦ Heavy duty thicken machine body

♦ 100A plasma power

♦ Stepper motor and Leadshine Driver

♦ Start Controller system from Beijing

♦ Automatic Arc Pressure adjustable

♦ HIWIN Linear Guide Rail

♦ Helical Rack and Pinion

♦ Fast Cam software

♦ Plywood package

♦ warranty : 1.5 years

What’s the Technical data of Forsun Plasma Cutting Machine ?

Name	Specification
Working Area(X*Y)	1300×2500mm
Machine Structure	Welded
X Y Guide Rail	Taiwan HIWIN Square Rail
X Y Transmission	Imported Rack gears
Drive Mode	Stepper Motor (Optional Servo )
Control System	START
Max thickness	0.3-22mm
Plasma Generator	100A Huanyuan plasma power
Cutting Speed	0-8000mm/min
Working Voltage	3-Phase 380V/2-phrase 220V
G.W.	1200KGS

Advantage

What's the advantage of Forsun Portable Plasma Cutting Machine?

1. Plasma power	Huayuan 100A power Famous brand made in china, low price, Cutting thickness 0.3-22mm
2. Controller system	Beijing Start control system, configured 7-inch high-resolution true color LCD display. can be dynamically cut graphics running track.
3. Motor	450B stepper motors With high quality & stronger power, ensure machine work very well.
4. Driver	Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time.
5. Automatic Arc Pressure adjustable	Beijing Start Adjust the torch height during cutting. Perforated height self-positioning
6. software	FastCam nesting software for machine. Using it, and finally export G code, then can be recognized by machine

Benefit

What's the Benefits of Forsun Plasma Cutting Machine ?

♦ Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc

♦ Application Industry: Sheet metal, kitchenware, components, decorations industry

Packaging & Shipping

Packaging of Fiber Laser Cutting Machine?

Our Services

Services of Forsun Plasma Cutting Machine?

Guarantee:
1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.

Customer visit

Customer visit of Fiber Laser Cutting Machine for flexible dies

FAQ

1) This is the first time I use this kind of machine, is it easy operate?

There are guide video that show how to use machine and english instruction book send to you with machine.

If there is still have any question, we will provide free professinal guide for you until you could use machine well.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

3) MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
