Quick Details
-
Type:
-
Digital
-
Tube chip color:
-
red
-
digital height available:
-
2.3", 3", 4", 5", 6"
-
Usage:
-
indoor/out door/semi-out door
Quick Details
-
Brand Name:
-
Tuoxing
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
TN2360
-
Type:
-
Digital
-
Tube chip color:
-
red
-
digital height available:
-
2.3", 3", 4", 5", 6"
-
Usage:
-
indoor/out door/semi-out door

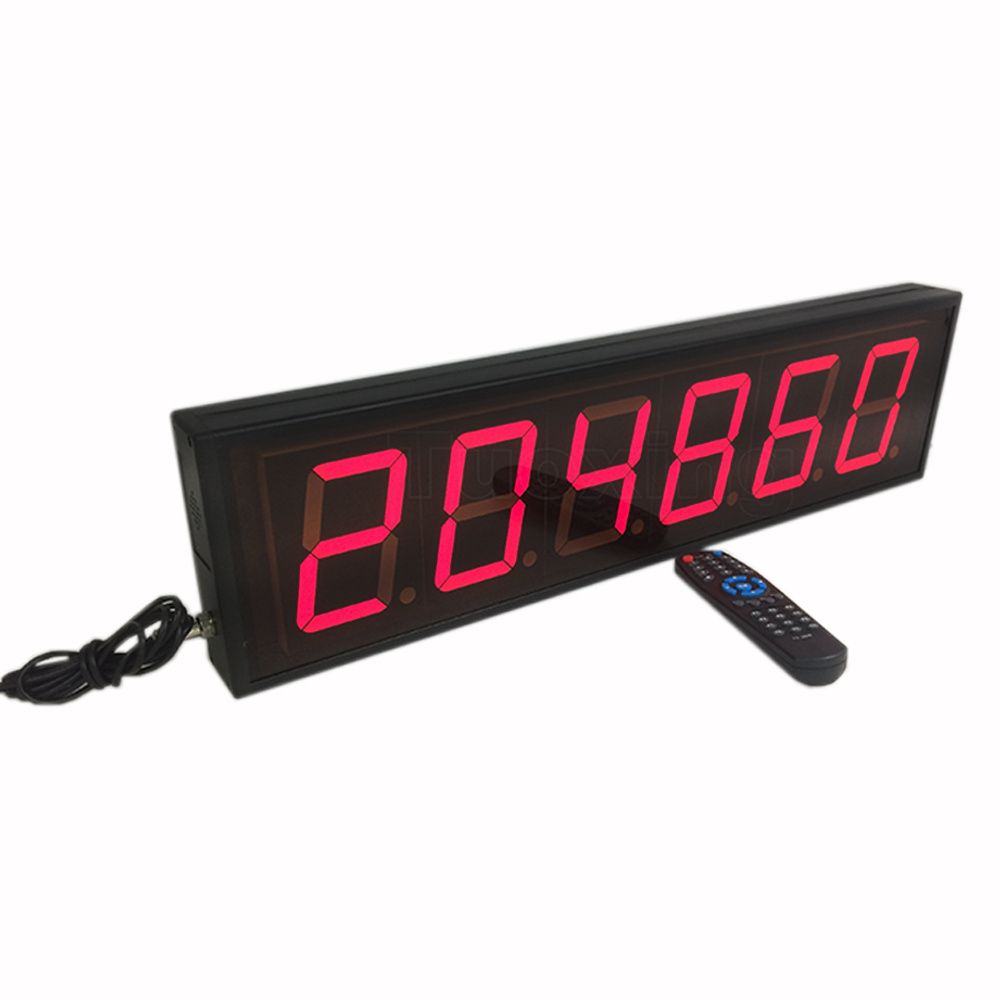

Red LED 6-digit Digital countdown timer
v Settable by either infrared remote or buttons on profile of housing
v An increment input port for sensor connection whose max input voltage is 5 volt and active voltage is 0V
v A reset input port for sensor or button connection, to zero out the readout of LED displays, whose max input voltage is 5 volt and active voltage is 0 V;
v Audio alarm activated when the readout of LED displays equals the preset value, the alarm can be closed by remote control or buttons on profile of housing;
v Lithium Battery backup, the real time data and preset value are able to be saved when power interruption, it will resume to what it was when power failure.
Specifications
v Power supply: UL listed Adapter in universal voltage range;
v Ambient temperature: -10~50 C; 0~95% RH;
v Installation: Wall mounting (with two holes in 8” spacing on rear board);
v Overall dimensions: 400*140*60mm;
v Packing dimensions: 510*180*100mm;
v Power: less than 4 watt
v Net weight: 1.7Kg.
other note: we could customize according to the clients requirements.
