We are the direct manufacturer and specified supplier of Briggs & Stratton, Generac, Loncin, Yamaha, Kohler, Greenworks, TTI, Senci,Ryobi and other famous customers. We are exporting the products to their plants directly.
We have about 27 years of experience in spares parts for general gasoline engines, inverter generator, battery powered equipments, such as ignition coil, AVR, voltage regulator, flywheel, inverter controller, alternator, blade motor, deck motor, driving controller, deck controller and etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
TJ848-3K5SC
-
Rated Voltage:
-
230V
-
Rated Current:
-
65A
-
Speed:
-
3000RPM
-
Frequency:
-
50HZ
-
Model number:
-
TJ848-3K5SC
-
Keywords:
-
Inverter
-
Type:
-
inverter controller
-
Color:
-
black
-
Output Power:
-
1kW 2kW 2.5kw 3kw 4kw
-
Generator Type:
-
AC
-
Voltage:
-
110V/220V/240V
-
Product name:
-
YP, Yuxin 3.5KW 230V 50HZ Controller Gas Generator Parts
-
Max. power:
-
12kw
-
MOQ:
-
1 Pcs
-
Certification:
-
others
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
YP, Yuxin
-
Model Number:
-
TJ848-3K5SC
-
Rated Voltage:
-
230V
-
Rated Current:
-
65A
-
Speed:
-
3000RPM
-
Frequency:
-
50HZ
-
Model number:
-
TJ848-3K5SC
-
Keywords:
-
Inverter
-
Type:
-
inverter controller
-
Color:
-
black
-
Output Power:
-
1kW 2kW 2.5kw 3kw 4kw
-
Generator Type:
-
AC
-
Voltage:
-
110V/220V/240V
-
Product name:
-
YP, Yuxin 3.5KW 230V 50HZ Controller Gas Generator Parts
-
Max. power:
-
12kw
-
MOQ:
-
1 Pcs
-
Certification:
-
others
Product name
YP, Yuxin factory customized inverter 2kw generator inverter 2kw for portable power petrol gasoline generators
Products Description

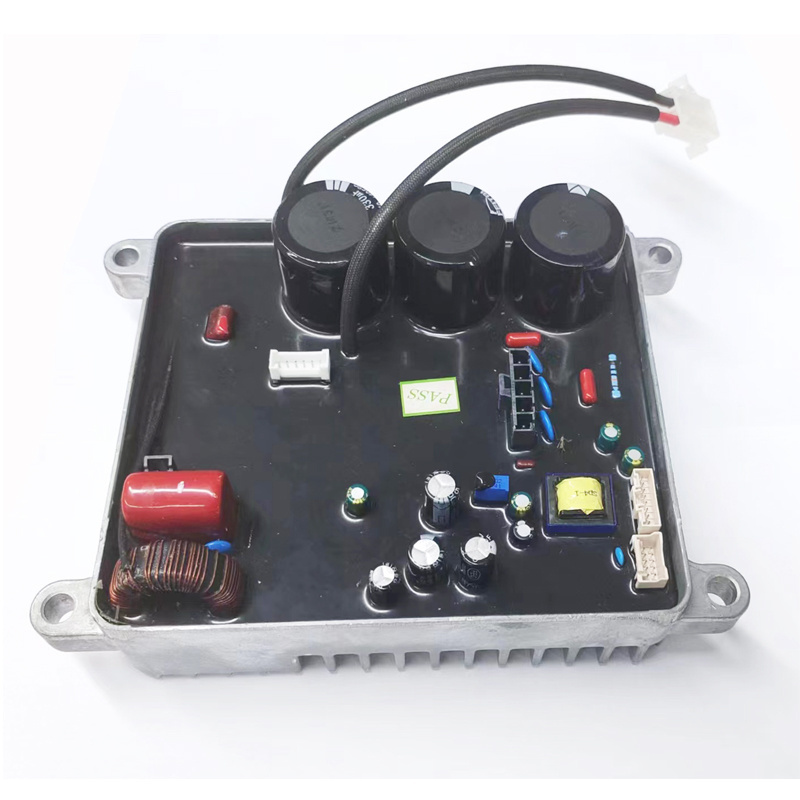

This product is an inverter for AC open frame inverter generator and portable digintal inverter generator. We have 1KW-14KW 110V-230V inverters for your options.
We are able to provide inverter controller, permanent magnet alternator(stator&rotor), smart starting module, co detection module, hour meter, blue tooth module for portable digital inverter generators.
Catalogue
|
Item
|
Description
|
Inverter controller
|
Item
|
Description
|
Inverter controller
|
|
|
1
|
1.6KW
|
1.6KW 50HZ 230V
|
18
|
3.5KW
|
3.5KW 60HZ 120V
|
|
|
2
|
1.6KW
|
1.6KW 60HZ 120V
|
19
|
3.5KW
|
3.5KW 50HZ 230V
|
|
|
3
|
1.6KW
|
1.6KW 50HZ/60HZ 100V
|
20
|
3.5KW
|
3.5KW 60HZ 120V
|
|
|
4
|
1.6KW
|
1.6KW 50HZ 220V
|
21
|
3.5KW
|
3.5KW 60HZ 120V
|
|
|
5
|
1.6KW
|
1.6KW 240V
|
22
|
3KW
|
3KW 50HZ 230V
|
|
|
6
|
1.8KW
|
1.8KW 60HZ 120V
|
23
|
3KW
|
3KW 50HZ 100V
|
|
|
7
|
2.3KW
|
2.3KW 60HZ 120V
|
24
|
3KW
|
3KW 50HZ 220V
|
|
|
8
|
2.3KW
|
2.3KW 50/60HZ 100V
|
25
|
3KW
|
3KW 60HZ 120V
|
|
|
9
|
2.5KW
|
2.5KW 50HZ 230V
|
26
|
5KW
|
5KW 60HZ 120V/240V
|
|
|
10
|
2.5KW
|
2.5KW 60HZ 120V
|
27
|
6KW
|
6KW 60HZ 120V/240V
|
|
|
11
|
2KW
|
2KW 60HZ 120V
|
28
|
6KW
|
6KW 50/60HZ 100V/200V
|
|
|
12
|
2KW
|
2KW 60HZ 110V
|
29
|
6KW
|
6KW 50HZ 230V
|
|
|
13
|
2KW
|
2KW 60HZ 220V
|
30
|
7KW
|
7KW 60HZ 120V/240V
|
|
|
14
|
2KW
|
2KW 60HZ 230V
|
|
|
|
|
|
15
|
2KW
|
2KW 50HZ 110V
|
|
|
|
|
|
16
|
2KW
|
2KW 60HZ 220V
|
|
|
|
|
|
17
|
2KW
|
2KW 120V
|
|
|
|
|
|
Item
|
Description
|
Stator Parameter
|
|
1
|
1.1KW 120V Stator
|
main winding output power: 1.1KW (4800rpm);
power supply winding:3200 to 4800rpm, voltage: 4V to 20V; ignition winding: peak voltage≥5V/650rpm; |
|
3
|
1.8KW 60V Stator
|
Ignition winding output:500rpm, UAC≥6V; 4800rpm, UAC≤99V
Stator temperature raise less than 100K |
|
4
|
2KW 230V 50HZ Stator
|
Main winding outpput power: P≥2KW (5000rpm), bulb load;
DC winding output power:5000rpm, 8A/12V±1V; Power supply winding output voltage: 3600 to 5000rpm, 12-17V |
|
5
|
2KW Stator
|
P=2 to 2.3KW 4800rpm
Insulation strength＞200MΩ, leakage current of winding to ground ≤ 2mA/1800V Stator temperature raise less than 100K |
|
6
|
2.2KW 230V Stator
|
Main winding output power: 5000rpm, P≥2.4KW;
DC winding output power: 5000rpm, 8A/12V±1V; Power supply winding output voltage: 3300 to 5000rpm, 10.5 - 20V |
|
7
|
3KW Stator
|
power:3kw
speed range:2600 to 3600rpm; using temperature range:-20 to +80℃； power winding AC voltage: 2600rpm＞10.5V， 3600rpm＜17V； ignition winding AC voltage:300rpm＞3V，3600rpm＜56V |
|
8
|
4.5kW 230V Stator
|
3600rpm
Main winding output power: UAC=430±15V; P1,P2≥2.8KW(3600rpm, UDC=400V), resistive load; Ignition winding AC voltage: 3600rpm, 75±5V |
|
9
|
5KW Stator
|
Main winding output power and voltage:3600rpm, U=400V, P≥7KW;
DC power supply winding: 3600rpm, DC voltage 12V±1; Insulation strength＞10MΩ, leakage current of winding to ground ≤ 2mA/1800V; Stator temperature raise less than 100℃ |
|
10
|
7KW/120V240V Stator
|
dual voltage
Main winding output voltage and power: 2600rpm,no load voltage UAC≥166V, 3600rpm, P1≥4.5KW, resistive load, P2≥4.5KW, resistive load; DC winding: 2600rpm, UAC＞14.5V; 3800rpm, UAC＜58V |
|
11
|
9.0kW 120V/240V Stator
|
3600rpm dual voltae
Main winding output power: speed range 2600rpm to 3600rpm, no-load voltage = 460±15V, with load UDC=400V; P1、P2≥5.2KW; Power supply winding AC voltage: 3600rpm, 35±2V, with load 60W, UDC=20-30V; DC winding AC voltage: 3600rpm, 35±2V; with load 60W, UDC=20-30V |
|
12
|
10KW 230V Stator
|
3200rpm
Main winding output voltage and power: 2600rpm, no-load voltage UAC≥300V, 3200rpm, P1≥3.5KW, resistive load, P2≥3.5KW, resistive load, P2≥3.5KW; DC winding output ower: after rectifiering, 3000rpm, no load UAC≤22V, with load I=8.3A, UDC=12±1V. |
Manufacturing Technique
silicone steel material from famous manufacturer
Automatic high stamping for stator lamination core
Automatic injection equipments
Automatic winding for stator
100% Stator testing
Automatic machining for rotor
Inverter controller 100% testing
Aging testing of controller
Withstand voltage testing
