Quick Details
Quick Details
-
Type:
-
Industrial Computer Accessories
-
Brand Name:
-
Kang Tai KTB
-
Place of Origin:
-
Beijing, China
Features:
●4U, 19" rackmount industrial computer, supports ATX/Micro ATX motherboard or PICMG passive bottom plane
●Support 3x 5.25" + 2x3.5" disk drive bay((1 external and 1 internal)
●
Intel B85 chipset, supports 4th Gen LGA1155 Intel Core i3/i5/i7/Pentium processor
●
The machine supports up to 32GB memory;Support SATAIII、mSATA
●
Support VGA+ HDMI display interface;2x LAN
●
Support 6 x COM，4x USB3.0，8x USB2.0
●
Support 1x PCIe 16X，1x PCIe 4X，1x PCIe 1X，4 x PCI expansion slots
●Lockable front door prevents unauthorized access; Front-accessible 2xUSB & PS/2 keyboard I/O interface
|
Product Specifications:
|
|
|
|
Model
|
IPC-510-B85V3(4th Gen)
|
|
|
Product Name
|

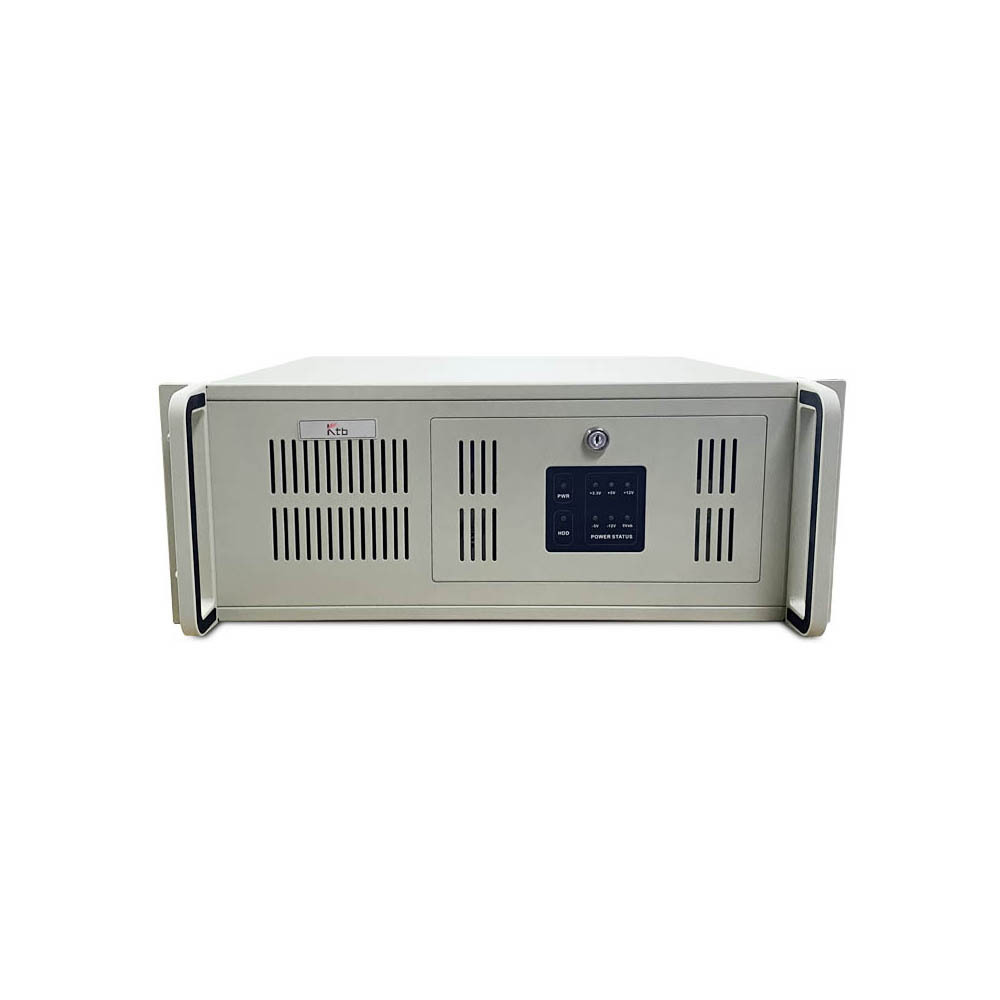

KTB 4U Rackmount Industrial Computer
|
|
|
Color
|
Beige
|
|
|
Material
|
High quality carbon high-strength structural steel,which compliant with FCC and CE standards, has characteristics like corrosion resistance, impact resistance, and wear resistance.
|
|
|
Processor System
|
Support 4th Gen LGA1150 Intel Core i3/i5/i7 processor
|
|
|
Chipset
|
Intel B85
|
|
|
Memory
|
4x DIMM memory slots supporting DDR3 , supports up to 32GB（Optional configuration）
|
|
|
Storage
|
Support 4xSTATIII，1x mSATA（Optional configuration）
|
|
|
BIOS
|
64Mb SPI FLASH
|
|
|
Display
|
Provide VGA+ HDMI display interface
VGA:1 standard DB15 VGA interface, supports resolution up to 1920x 1080 @ 60Hz HDMI:1 standard
HDMI interface,supports resolution up to 4096x 2304 @ 60Hz |
|
|
Network
|
Onboard 2 Intel 10/100/1000Mb adaptive network cards, using Intel I211 network card chip
|
|
|
Serial port
|
Provide 6 x COM RS232 Among them,
COM1 supports RS232/485/422,COM2 supports RS232/485，COM3~6 support RS232
|
|
|
USB
|
4xUSB3.0 ，8x USB2.0，2x USB2.0 on the front panel
|
|
|
DVD
|
DVD/DVDRW（optional）
|
|
|
AUDIO
|
Realtek ALC662; supports MIC-in,line-out, line-in
|
|
|
OTHERS I/O
|
1x PS/2，1x LPT
|
|
|
GPIO
|
Provide a 2x 5-pin 2.54mm GPIO pin interface, supporting 4 inputs and 4 outputs
|
|
|
Watchdog
|
Watchdog function, supports 1 to 255 seconds of system restart
|
|
|
Expansion Slot
|
1 PCIe 16X slot
1 PCIe 4X slot
1 PCIe 1X slot
4 PCI slots
|
|
|
Power Requirement
|
Standard ATX 24pin power supply,250W/300W(optional)
|
|
|
Operating environment
|
Operating Temperature:0 ~ 60 °C
Operating humidity: 5%~95%,
No condensation Non-Operating Temperature:-20 ~85℃
|
|
|
OS
|
Support Win XP,Win7/8/10 ，Linux
|
|
|
Dimensions
|
427mm x 450mm x 177 mm (WxDxH)
|
|
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 18 years of OEM/ODM experience. We are confident to provide you with better quality, better price satisfactory products.
Q2: Do you accept OEM/ODM orders?
A2: Of course, we have our own R&D team to support the customization of motherboard design and machine design, testing and production.
Q3: What terms of payment do you accept?
A3: We suggest you try Alibaba Trade Guarantee first. It will be more advantageous for you.
Q4: Do you provide sample service?
A4: Yes, we can provide samples on your request before mass production
Q5: How long is your product warranty?
A5: Under normal circumstances, we provide 2 years warranty for all products. If you want to extend the warranty period, we can negotiate according to the actual situation of your order.
Q6: What kind of packaging do you provide for the motherboard?
A6: We usually use bulk packing as the standard, but if you need retail packing, please let us know before placing your order and we will provide it for you.
