Rejia Semiconductor Photovoltaic Industry Stainless Steel GI Vacuum Manual Butterfly Valve

Rejia Semiconductor Photovoltaic Industry Stainless Steel GI Vacuum Manual Butterfly Valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $32.26

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: GI100

Brand Name:: No

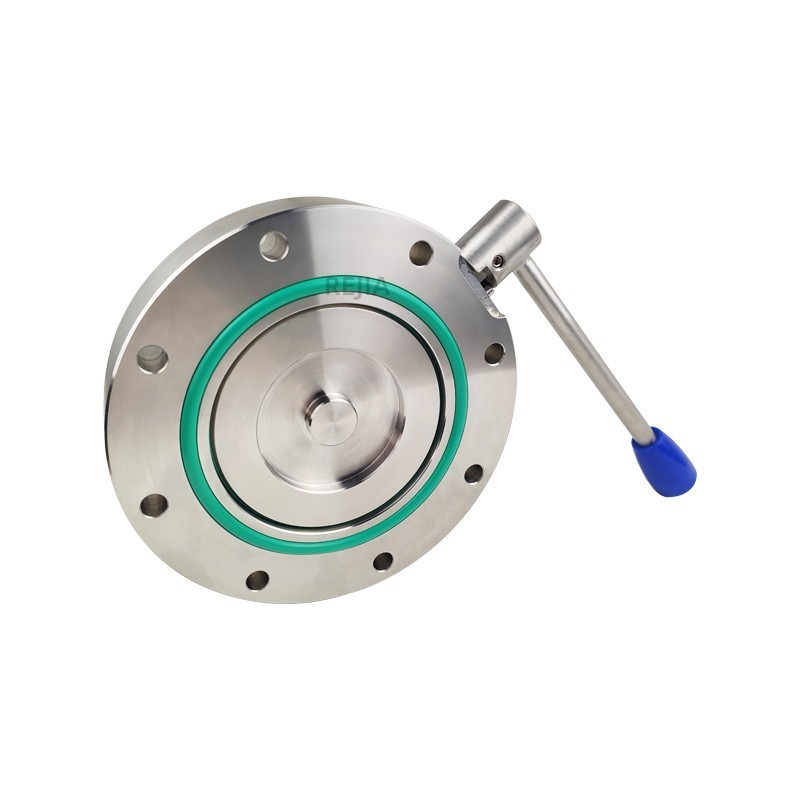

Product name:: GI Manual Vacuum Butterfly Valve

Connection:: GI Flange

Medium:: Gas

Seal Material:: FKM

Operation:: Manual, Pneumatic Actuator, Electric Actuator

Valve Body Material:: 304 SS/ 316L SS

Surface:: CNC Lathe

Helium Leak Detection:: 2 sets

Packing:: Plywood Case

Usage:: Semiconductor Photovoltaic Industry

Quick Details

Port Size:: GI25-GI400

Warranty:: 1 year

Place of Origin:: Zhejiang, China

Model Number:: GI100

Brand Name:: No

Product name:: GI Manual Vacuum Butterfly Valve

Connection:: GI Flange

Medium:: Gas

Seal Material:: FKM

Operation:: Manual, Pneumatic Actuator, Electric Actuator

Valve Body Material:: 304 SS/ 316L SS

Surface:: CNC Lathe

Helium Leak Detection:: 2 sets

Packing:: Plywood Case

Usage:: Semiconductor Photovoltaic Industry

Product Overview

Vacuum valves are divided into manual vacuum valves, pneumatic vacuum valves, electric vacuum valves. The difference of vacuum valves and ordinary valves, that vacuum valve is used to isolate (cut off) the flow of air, regulate the flow and distribution of air. All kinds of vacuum devices (also known as vacuum engineering equipment) are inseparable from the vacuum system. Vacuum valves play an important role in simple or complex vacuum systems.

FEATURES AT A GLANCE

Vacuum Butterfly Valve

Series: KF/ GI

Type: High Vacuum

Vacuum Rage: 105~1.3×10-7Pa

Helium leak detection: Yes

Temperature of Medium: -20°C to +140°C

Action: Manual/Pneumatic/Electric

Port Size: KF16-KF63/ GI25-GI400

Material: SS304(1.4301)/ SS316L(1.4404)

Seal: FKM

Laser Marking: Free

Sample Time: 5 working day(standard item)

Package: Carton Box/ Plywood wooden case

Left Angle

Back Angle

Right Angle

Dimension

Size	L	Dn	D1	D	H	h	F	S2	ISO5211
KF16	93	15.8	17.2	30	30	9.5	9*9	42	F04
KF25	110	22.1	26.2	40	45	9.5	9*9	42	F04
KF40	139	34.8	41.2	55	64	15	14*14	70	F05/F07
KF50	147	47.5	52.2	75	74	15	14*14	70	F05/F07

Hand Held Spectrometer

Test product material.

Helium Leak Detector

Test w hether leak after assemble.

Surface Finish Indicator

Test product surface after CNC lathe.

Packing

Plastic cover; Plastic bag;

Plastic cover; Bubble bag; Carton box;

Plywood wooden case.

Exhibitions

Exhibition in Germany

Exhibition in Shanghai

Our Company

WENZHOU REJIA VALVE CO., LTD.

* Factory Square Meter: 2000 m³

* Number of employees: 50 workers

* Helium Mass Spectrometer Leak Detector: 1 set

* Pressure Testing Machine: 2 sets

* Surface roughness device: 1 set

* Spectrometer Instrument Gun: 1 set

* CNC Lathe: 30 sets

* A utomatic CNC center: 1 set

* Polish Machine: 5 sets

* Laser Marking Machine: 2 sets

* Automatic Welding Machine: 1 set

* Sand Blasting Machine: 1set

Office

Sales Team

Workshop

CNC Workshop

Finished Products Warehouse

Semi-finished products Warehouse

Raw Material Warehouse

REJIA Samples

* Vacuum Ball Valve

* High Vacuum Ball Valve

* Manual Vacuum Ball Valve
* Pneumatic Vacuum Ball Valve
* Three-way Vacuum Ball Valve
* Pneumatic Three-way Vacuum Ball Valve

* Vacuum Fittings

* Vacuum Flange

* Double Ferrule Ball Valve

* Double Ferrule Check Valve

* 2PC Ball Valve

* 3PC Ball Valve

* Butterfly Valve

* Filter/ Strainer

* Pipe Fittings

* Double Ferrule Fittings

Successful Project

Colombia

Germany

Chile

Certificates

FAQ

Q: Why would I choose you?
A: Rejia Valve Co., Ltd. is professional manufacturer for valves and fittigns since 2019. Outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solving rate after sales.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock;
Or it is 20-25 working days if the goods are out of stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?
A: Payment<=$1000, 100% in advance.
Payment>=$1000 30% T/T in advance, balance before shipment.
