Quick Details
-
Brand Name:
-
MilkyWay
-
Model Number:
-
steel electric poles, electric pole
-
Type:
-
steel electric poles
-
Design:
-
Customiszed
-
Surface treatment:
-
hot dip galvanization
-
Dimenstion torlance:
-
+- 2%
-
Standard:
-
ISO
-
Welding standard:
-
AWS D 1.1
-
Gavanization standard:
-
ASTM A 123
-
Warranty:
-
15 years
-
Manufactury capacity:
-
300 pieces per day
Quick Details
-
Voltage:
-
10-220
-
Current:
-
10-200
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MilkyWay
-
Model Number:
-
steel electric poles, electric pole
-
Type:
-
steel electric poles
-
Design:
-
Customiszed
-
Surface treatment:
-
hot dip galvanization
-
Dimenstion torlance:
-
+- 2%
-
Standard:
-
ISO
-
Welding standard:
-
AWS D 1.1
-
Gavanization standard:
-
ASTM A 123
-
Warranty:
-
15 years
-
Manufactury capacity:
-
300 pieces per day
|
SPECOFOCATIONS FOR THE ELECTRIC POLE
|
|
|
|
|||
|
Type
|

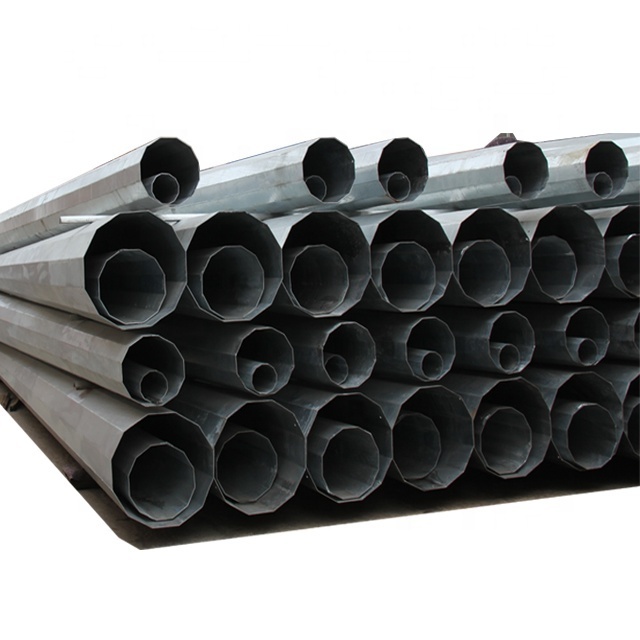

Octagonal NGCP 69KV Galvanized electric steel power pole supplier
|
|
|
|||
|
Suit for
|
Electricity distribution
|
|
|
|||
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
|
|
|||
|
Material
|
Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
|
|
|
|||
|
Torlance of the dimenstion
|
+- 2%
|
|
|
|||
|
Power
|
10 KV ~550 KV
|
|
|
|||
|
Safety Factor
|
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8 |
|
|
|||
|
Design Load in Kg
|
300~ 1000 Kg appliced to 50cm from the to pole
|
|
|
|||
|
Marks
|
Name palte through rivert or glue ,engrave ,emboss as per customer requirement
|
|
|
|||
|
Surface treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required
|
|
|
|||
|
Joint of Poles
|
Insert mode,innerflange mode,face to face joint mode
|
|
|
|||
|
Design of pole
|
Against earthquake of 8 grade
|
|
|
|||
|
Wind Speed
|
160 Km/Hour . 30 m /s
|
|
|
|||
|
Minimum yield strength
|
355 mpa
|
|
|
|||
|
Minimum ultimate tensile strength
|
490 mpa
|
|
|
|||
|
Max ultimate tensile strength
|
620 mpa
|
|
|
|||
|
Standard
|
ISO 9001
|
|
|
|||
|
Length of per section
|
Within 14m once forming without slip joint
|
|
|
|||
|
Welding
|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
|
|
|||
|
Thickness
|
1 mm to 30 mm
|
|
|
|||
|
Production Process
|
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
|
|
|
|||
|
Packages
|
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data
|
|
|
|||
Production process
As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .
Material
All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
1.
Price Term
: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2.
MOQ
: 1 sets for Customized
3.
Payment
:
Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4.
Delivery time
: goods can be ready for shipment within 10 workdays after receiving deposit.
5. Warranty : 30 years
6.
Surface treatment
:hot dip galvanization
Pre-Sales Service
* Inquiry and consulting support.
* Reply your inquiry in 24 working hours.
* View our Factory.
After-Sales Service
* Training how to instal the poles
* Provide the inspection report,the mill certificate and the tensil test.
|
Packaging
|
|
|
|
Type
|
40&45FT Electric poles
for Philippine Market
|
|
|
Quantity
|
26Tons
40HQ Containers
|
|
|
Packaging
|
|
|
|
Type
|
35FT Electric poles
for Philippine Market
|
|
|
|
|
|
|
Quantity
|
26Tons
40HQ Containers
|
|
|
|
|
|
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.
