Quick Details
-
Weight:
-
6700 KG, 6700 kg
-
Engine:
-
WEICHAI
-
Clutch:
-
LUK 15in Double Action clutch
-
Gear shift:
-
16F+16R Shuttle Creeper Shift
-
Wheelbase:
-
2828 mm
-
Wheel base (Front/Rear):
-
1960/1900
-
Tire:
-
16.9-28/18.4-42
-
PTO Speed:
-
540/1000
-
Color:
-
Customer Requirements
-
Application:
-
Ariculture
Quick Details
-
Rated Power (HP):
-
200HP
-
Brand Name:
-
Chalion
-
Place of Origin:
-
Henan, China
-
Weight:
-
6700 KG, 6700 kg
-
Engine:
-
WEICHAI
-
Clutch:
-
LUK 15in Double Action clutch
-
Gear shift:
-
16F+16R Shuttle Creeper Shift
-
Wheelbase:
-
2828 mm
-
Wheel base (Front/Rear):
-
1960/1900
-
Tire:
-
16.9-28/18.4-42
-
PTO Speed:
-
540/1000
-
Color:
-
Customer Requirements
-
Application:
-
Ariculture
Products Description

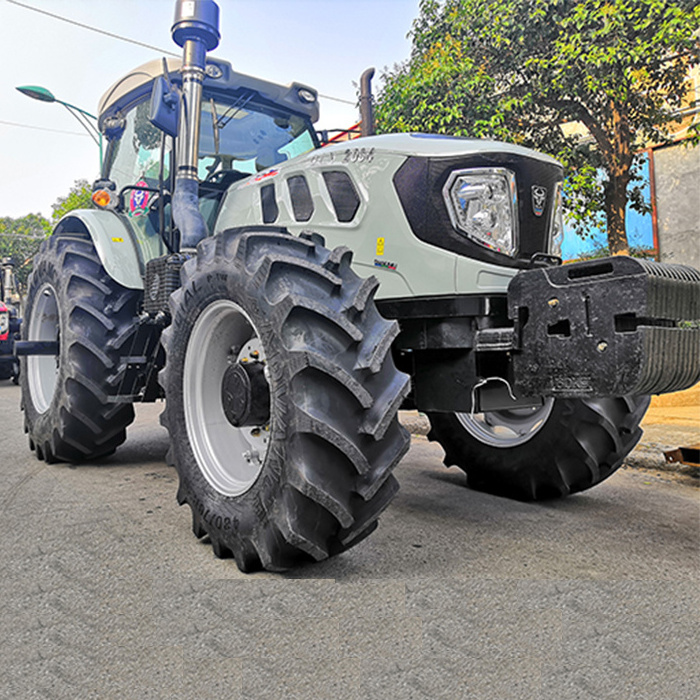

Chalion Large Farming Tractor Heavy Duty QLN-2004 4*4 Tractor Agricola 200HP Big Tractors With Wheat Planter In Tanzania
Product advantages:
2. The tractors adopt LUK 15in.,dual-function,independent,dry clutch .
3.Cheap farm tractor's wheel tread F/R (mm) use 1960/1900.
4.Our tractors use 260 L fuel tank.
5.The tractor's PTO speed is 540/1000 rpm.Linkage equipped III Rear Mount 3-point.
|
Model
|
QLN-2004
|
|
|
||
|
|
Length×Width×Height(mm)
|
5420*2490*3180
|
|
||
|
|
Wheel Tread(mm)
|
Front Wheel(mm)
|
1960
|
||
|
|
|
Rear Wheel(mm)
|
1900
|
||
|
|
Min.Ground Clearance(mm)
|
425
|
|
||
|
Dry Mass
|
With Cab(kg)
|
6700
|
|
||
|
Engine
|
Engine brand
|
WEICHAI
|
|
||
|
|
Engine Model
|
Direct-injection,water-cooled 6-cylinders diesel engine
|
|
||
|
|
Number of Cylinder
|
6
|
|
||
|
|
Cooling System Type
|
Water Cooled
|
|
||
|
|
Rated Power(kw)
|
147.5
|
|
||
|
|
Rated Speed(r/min)
|
2200
|
|
||
|
Fuel Tank
|
Volume(L)
|
260
|
|
||
|
|
Clutch
|
LUK 15in.,dual-function,independent,dry clutch
|
|
||
|
|
Gear Box
|
F16+R16 Shuttle Creeper Shift
|
|
||
|
Braking System
|
Static hydraulic pressure,double disc
|
|
|
||
|
|
|
Front tyre
|
16.9-28
|
||
|
|
|
Rear tyre
|
18.4-42
|
||
|
Steering System
|
Hydraulic Steering
|
|
|
||
Product pictures:
Product details:
The famous YTO/WEICHAI 6-cylinder diesel engine, strong power, turbocharging, low fuel consumption, high efficiency.
Germany ZF brand front axle, sealed front axle, good waterproof and dustproof performance, and high ground clearance, easy to operate, suitable for different farmland.
16F+16R shuttle shift, side control, multiple gear speeds to choose from, suitable for large farmland.
Rear-mounted three types of three-point suspension, strong lifting capacity, can match various heavy farm implements.
