Quick Details
-
Interface Standard:
-
type2
-
Output Current:
-
0 to 32A
-
Output Power:
-
22kW
-
Input Voltage:
-
400Vac +/-10%, 3-phase
-
Input Voltage Range:
-
400Vac +/-10%, 3-phase
-
Input Frequency Range:
-
50Hz/60Hz
-
Output Voltage Range:
-
400Vac +/-10%, 3-phase
-
Output Current Range:
-
0 to 32A
-
Rated Output Power:
-
22kW
-
Warranty:
-
12 Months
-
Working Humidity:
-
5%-95%
-
Working Temperature:
-
-30° C to +50° C
-
Efficiency:
-
>94%
-
Type:
-
wallbox 22kw
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AKEV22
-
Brand Name:
-
ARK or OEM
-
Interface Standard:
-
type2
-
Output Current:
-
0 to 32A
-
Output Power:
-
22kW
-
Input Voltage:
-
400Vac +/-10%, 3-phase
-
Input Voltage Range:
-
400Vac +/-10%, 3-phase
-
Input Frequency Range:
-
50Hz/60Hz
-
Output Voltage Range:
-
400Vac +/-10%, 3-phase
-
Output Current Range:
-
0 to 32A
-
Rated Output Power:
-
22kW
-
Warranty:
-
12 Months
-
Working Humidity:
-
5%-95%
-
Working Temperature:
-
-30° C to +50° C
-
Efficiency:
-
>94%
-
Type:
-
wallbox 22kw
Products Description
|
Product Highlights
|
|
|
|
Equipped with MID
|
Equipped with MID
|
|
|
Outlet connector
|
IEC 62196 Type-2
|
|
|
Display
|
4.3” LCD Display
|
|
|
RCCB
|
Type-A + 6mA DC or Type-B (optional)
|
|
-CUSTOMER REAL SHOT-
- PACKING -
Product Paramenters
|
Specification
|
Model
|
AKEV22
|
|
Structure
|
Application scenes
|
Commercial/Public charging station
|
|
|
Housing material
|
Metal enclosure
|
|
|
Dimension
|
300*450*160mm, 1200*450*160mm (pedestal mount)
|
|
|
Installation method
|

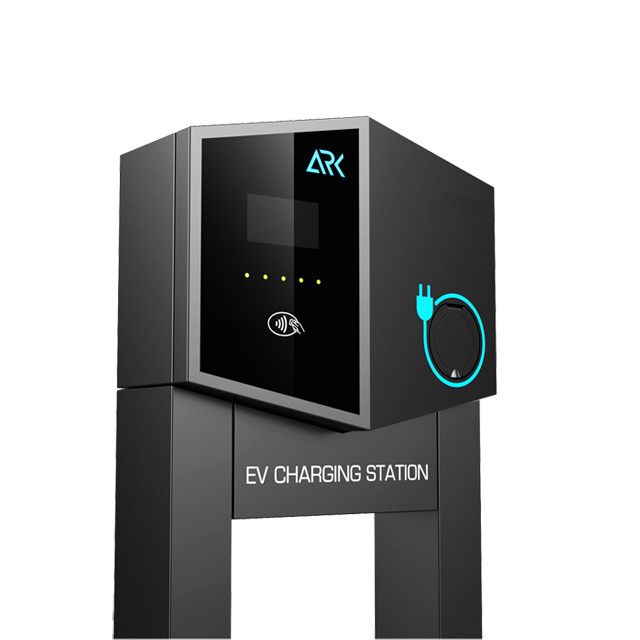

Wall mounting/Pedestal mounting(optional)
|
|
|
Cable routing
|
Bottom inlet wiring
|
|
|
Weight
|
N.W.: 11kg
|
|
|
Outlet type
|
Type-2 socket or connector
|
|
|
Cable outlets
|
1
|
|
Electrical specifications
|
input voltage
|
400Vac +/-10%, 3-phase
|
|
|
Input frequency
|
50Hz/60Hz
|
|
|
Rated power
|
22kW
|
|
|
Output voltage
|
400Vac +/-10%, 3-phase
|
|
|
Output current
|
32Adc
|
|
|
Efficiency
|
≥ 95%
|
|
|
Power factor
|
≥ 0.99
|
|
Function design
|
User interface
|
RFID, LCD Display
|
|
|
Charging standards
|
IEC 62196 Type-2
|
|
|
Communication
|
PWM, Ethernet, LTE, OCPP 1.6J
|
|
Environment condition
|
Application place
|
Indoor/Outdoor
|
|
|
Working temperature
|
-30 °C – +50 °C
|
|
|
Working humidity
|
5% – 95% non-condensation
|
|
|
Altitude
|
<2000m
|
|
|
Protection grade
|
IP55
|
|
|
Cooling
|
Natural cooliing
|
|
|
MTBF
|
100,000 hours
|
|
|
Safety standards
|
Compliant with CE, EN 61851-1-2001; EN 61851-21-2001; EN 61851-22-2001
|
|
|
Security design
|
Over/under voltage protection, overload protection, current leakage protection, grounding
protection, lightening surge protection |
