- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.5-1.5mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8000*1500*1000mm
-
Weight:
-
8000 kg
-
Marketing Type:
-
Hot Product 2024
-
Name:
-

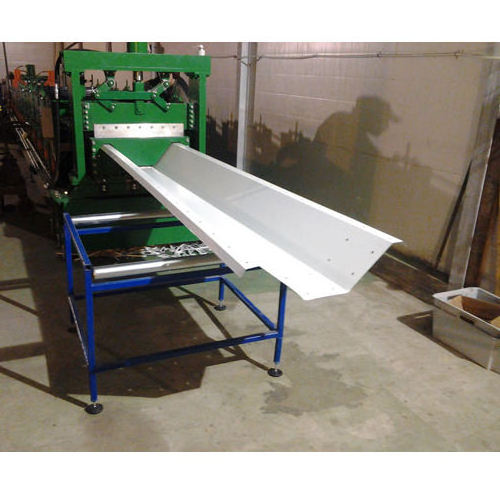

K Span Roof Panel Roll Forming Machine
-
Material:
-
Galvanized Steel Sheet
-
Thickness:
-
0.5-1.5mm Thickness
-
Forming Speed:
-
0-12m/min
-
Roller stations:
-
about 16 Stations
-
Control system:
-
PLC Control
-
Application:
-
Roof
-
Usage:
-
Building Roof
-
Control box language:
-
Add Customer Request Language
-
Cutting system:
-
Hydrulic Cutting
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
0-12m/min
-
Rolling thinckness:
-
0.5-1.5mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8000*1500*1000mm
-
Weight:
-
8000 kg
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
K Span Roof Panel Roll Forming Machine
-
Material:
-
Galvanized Steel Sheet
-
Thickness:
-
0.5-1.5mm Thickness
-
Forming Speed:
-
0-12m/min
-
Roller stations:
-
about 16 Stations
-
Control system:
-
PLC Control
-
Application:
-
Roof
-
Usage:
-
Building Roof
-
Control box language:
-
Add Customer Request Language
-
Cutting system:
-
Hydrulic Cutting
Product Description
Main Fetures & Components of the Machine
1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape steel structure and process as a whole after welding, it has the ability of strong loading and stable operation when running the machine.
2. All the components of the machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It's very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
2. All the components of the machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. It's very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
Machine List:
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
5 ton manual De-coiler |
1 set |
|
2 |
Leveing guiding devide |
1 set |
|
3 |
Servo feeding device |
1 set |
|
4 |
Main roll forming machine |
1 set |
|
5 |
Hydraulic station |
1 set |
|
6 |
Cutting device |
1 set |
|
7 |
Finished products tabel |
1 set |
|
8 |
PLC control system |
1 set |
|
9 |
Output table |
1 set |
|
10 |
Spare parts
|
1 set
|
Technical Parameter
|
Item NO. |
Description |
Offered Specification |
|
1 |
Product Line speed |
0-10 m per min |
|
2 |
Suitable material thickness |
0.5--1.5 mm |
|
3 |
Raw material |
Pre-paint Color Steel Coil yield strength≤G250MPa |
|
4 |
Dimension |
About 10400mm * 2250mm * 2300mm
|
|
5 |
Levelling device |
7 roller levelling |
|
6 |
Roller stations(stages) |
16 stations |
|
7 |
Roller material |
bearing steel, quenching treatment |
|
8 |
Shaft diameter |
Φ76mm ,material is 45# forge steel |
|
9 |
Transmission |
By chain 1.2 inch 20A double chain with longer shafts |
|
10 |
Material of chain |
45# forged steel with frequency quenching, 12A |
|
11 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
|
12 |
Main motor power |
7.5kw |
|
13 |
Motor power of hydraulic station |
5.5kw |
|
14 |
Hydraulic station pressure |
12Mpa |
|
15 |
Machihne Weight |
10 Ton |
|
15 |
Tolerance |
6m+-1.5mm |
|
16 |
Frame |
H Beam |
Un-coiler: 5 tons passive decoiler
Insider diameter of the un-coiler: 520-610mm
Weight:5 tons
Cutting way: Hydraulic following cut.
Oil pump station:1set.
Hydraulic power: 5.5kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm
Power supplier: 380V, 50 Hz, Three Phases (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Size:6000*1000*1000mm
Profile Drawing
Maintenance and the service of the machine
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
