Quick Details
-
Model Number:
-
HKD
-
Operating Temperature:
-
-10~ +80℃
-
Product name:
-
Rotary Paddle Level Switch
-
Working temperature:
-
-10~ +80℃
-
Torque:
-
1.0 kg * cm
-
Material specific gravity:
-
≥0.5g/cm3
-
Blade material:
-
304, 316L
-
Working power:
-
220VAC, 110VAC, 24VDC
-
Power consumption:
-
4W
-
Insulation resistance:
-
≥100MΩ
-
Contact capacity:
-
1*SPDT 250VAC/10A
-
Packing:
-
Wooden Case
Quick Details
-
Media Type:
-
Solid
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Vacorda
-
Model Number:
-
HKD
-
Operating Temperature:
-
-10~ +80℃
-
Product name:
-
Rotary Paddle Level Switch
-
Working temperature:
-
-10~ +80℃
-
Torque:
-
1.0 kg * cm
-
Material specific gravity:
-
≥0.5g/cm3
-
Blade material:
-
304, 316L
-
Working power:
-
220VAC, 110VAC, 24VDC
-
Power consumption:
-
4W
-
Insulation resistance:
-
≥100MΩ
-
Contact capacity:
-
1*SPDT 250VAC/10A
-
Packing:
-
Wooden Case

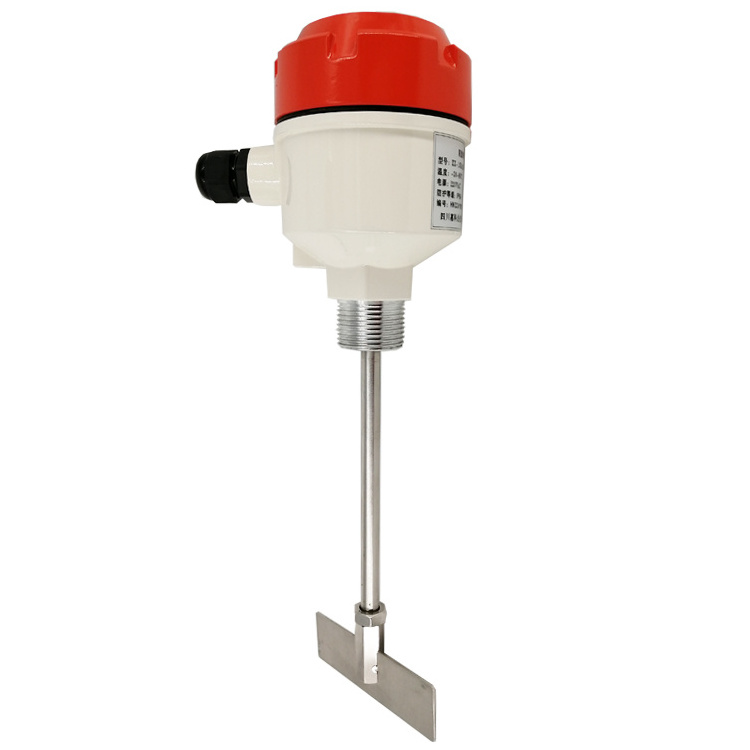

Vacorda Automatic China Factory Adjustable for Solid Rotary Paddle Level Switch
Features
1. W ith overload protection to prevent motor damage
2. Good sealing performance, strong overload capability and large output contact capacity.
3. The torque is stable and adjustable. According to the different specific gravity, the sensitivity of the switch can be adjusted by adjusting the tension of the spring.
4. S pecial design blades can be used for low density materials
Technical Parameters
Detection method: rotation blade resistance detection
Blade speed: 1RPM (rev / min)
Torque: 1.0 kg * cm
Contact capacity: 1 * SPDT 250VAC/10A
Material specific gravity: ≥0.5g/cm3
Insulation resistance: ≥100MΩ
Working temperature: -10~ +80 ℃ ( Max 400 ℃ )
Dielectric strength: 1500V/1min
Protection level: IP65
Blade material: 304, 316L
Working power: 220VAC, 110VAC, 24VDC
Power consumption: 4 W
Installation type as shown below:
