Quick Details
-
Lift Speed:
-
1.1m/min
-
Weight (KG):
-
72 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
HSY 25 ton Chain Hoist, Widely Used Electric Hoist
-
Chain:
-
FEC or Made in China
-
Brake System:
-
electromagnetic brake
-
Over Load Limit:
-
available
-
Wire Less Control:
-
YES
-
Double Speed:
-
available
-
Low headroom:
-
available
-
After Warranty Service:
-
No service
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HUGO
-
Lift Speed:
-
1.1m/min
-
Weight (KG):
-
72 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
HSY 25 ton Chain Hoist, Widely Used Electric Hoist
-
Chain:
-
FEC or Made in China
-
Brake System:
-
electromagnetic brake
-
Over Load Limit:
-
available
-
Wire Less Control:
-
YES
-
Double Speed:
-
available
-
Low headroom:
-
available
-
After Warranty Service:
-
No service
stainless steel 1 ton electric chain hoists made in japan with trolley

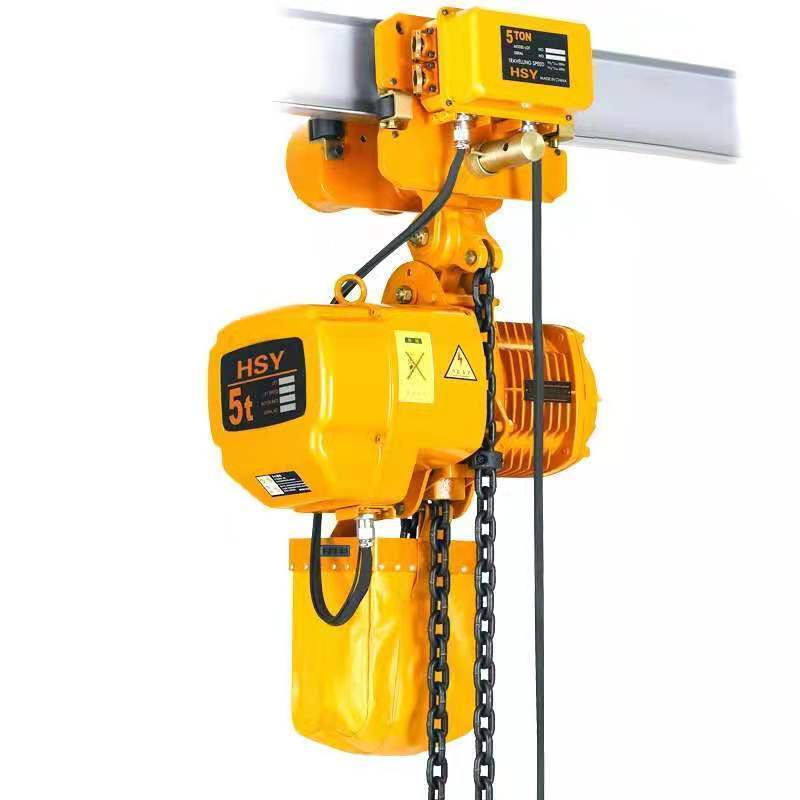

| Item | HSY Electric Chain Hoist With Electric Trolley | |||||
| 15-06S | 15-06D | 20-08S | 20-08D | 25-10S | 25-10D | |
| Capacity (Ton) | 15 | 15 | 20 | 20 | 25 | 25 |
| Lifting Speed (m/min) | 1.8 | 1.8/0.6 | 1.4 | 1.5/0.5 | 1.1 | 1.2/0.4 |
| Motor Power (kw) | 2*3.0 | 2*3.0/1.0 | 2*3.0 | 2*3.0/1.0 | 2*3.0 | 2*3.0/1.0 |
| Rotation speed (r/min) | 1440 | 2880/960 | 1440 | 2880/960 | 1440 | 2880/960 |
| Insulation grade | F Level | |||||
| Trolley travelling speed (m/min) | 11 slow, 21 fast | |||||
| Power supply | 3P-380V 50HZ | |||||
| Controller voltage | 24v/36v/48v | |||||
| No. of load chain | 6 | 6 | 8 | 8 | 10 | 10 |
| Diameter of chain (mm) | 11.2 | |||||
| N.W.(KG) | 382 | 455 | 482 | 545 | 530 | 579 |
| I Beam (mm) | 150-220 | |||||
