Quick Details
-
Model Number:
-
QDY70A
-
Measuring range:
-
≤20m
-
Output signal:
-
4-20mA;0-5V;0-10V;RS485
-
Power supply:
-
12-24V DC/220V AC
-
Accuracy:
-
0.25%FS
-
Display:
-
LED(LCD optional)
-
Working temperature:
-
-10℃~60℃
-
Protection grade:
-
IP65
-
Working humidity:
-
≤80%RH
-
Blind area:
-
≤0.3m
-
Certificate:
-
CE,RoHS,ISO,FCC
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Qidian
-
Model Number:
-
QDY70A
-
Measuring range:
-
≤20m
-
Output signal:
-
4-20mA;0-5V;0-10V;RS485
-
Power supply:
-
12-24V DC/220V AC
-
Accuracy:
-
0.25%FS
-
Display:
-
LED(LCD optional)
-
Working temperature:
-
-10℃~60℃
-
Protection grade:
-
IP65
-
Working humidity:
-
≤80%RH
-
Blind area:
-
≤0.3m
-
Certificate:
-
CE,RoHS,ISO,FCC

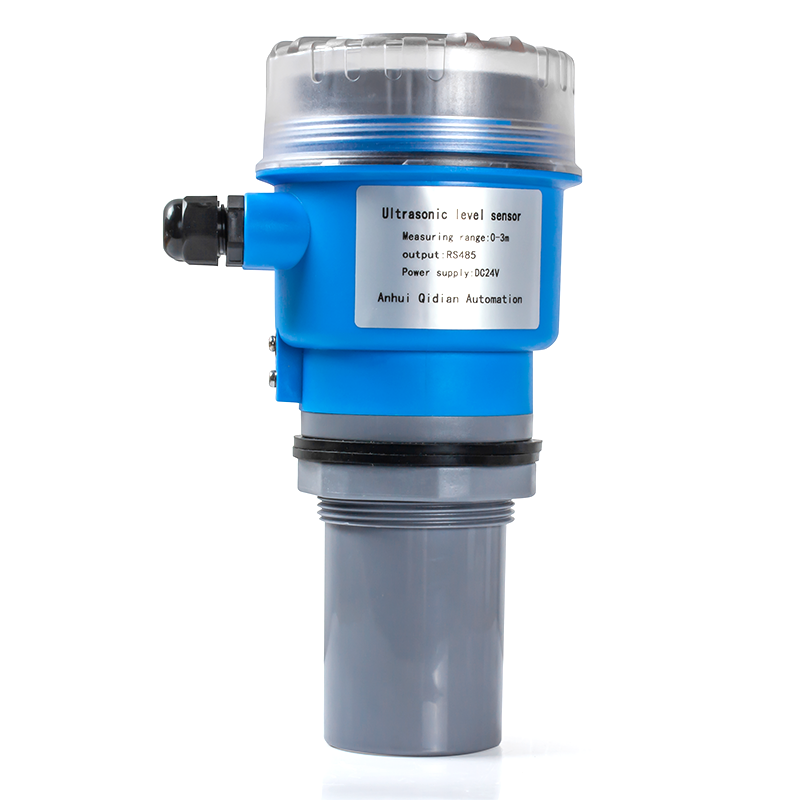

QDY70A ultrasonic level instrument, is a universal level instrument with full digital and humanized design, which has perfect level measurement and control, data transmission and man-machine communication functions. The instrument adopts modular circuitdesign, military quality multi-layer PCB board, with close hardware structure and reasonable layout. Other functions can be realized by adding modules according to customers' requirements, such as RS-485 module, current output module, etc., which can better match with PLC and other control instruments.
QDY70A ultrasonic level instrument, uses imported industrial chips, digital temperature compensation and other special integrated circuits. It has strong anti-interference, can set up upper and lower limit nodes and online output adjustment, and has field display. The shell is made of engineering plastic ABS waterproof shell, which is small and quite solid. This product can meet most of the requirements of liquid level and material level measurement without contacting with industrial medium. It completely solves the problems of winding, blocking, leakage, medium corrosion and inconvenient maintenance caused by traditional measurement methods such as pressure type, capacitance type and float type. Therefore, it can be widely used in various fields related to the measurement and control of material level and liquid level.
|
Model
|
QDY70A Ultrasonic level meter
|
|
Measuring range
|
0~20m
|
|
Blind area
|
0.35m~0.5m
|
|
Ranging accuracy
|
±0.25%F.S (Standard condition)
|
|
Ranging resolution
|
≤2mm (Built-in temperature compensation)
|
|
Operation temperature
|
-10~60℃ (Customization)
|
|
Display
|
LCD
|
|
Output signal
|
4~20mA; 0~5V; 0~10V; RS485;
3 ways NPN(PP pulse output optional); 2 ways Relay output,etc |
|
Power supply
|
DC12V, DC24V, AC220V
|
|
Electrical interface
|
PG9
|
|
Protection grade
|
IP65
|
|
Response time
|
1.5s
|
|
Shell material
|
ABS
|
|
Probe material
|
ABS/PE/PP/PC/PTFE
|
|
Installation interface
|
M59*2
|
|
Ex-proof class
|
Exia Ⅱ BT4Gb
|
|
Power requirements
|
>1A
|
Q1.
Are you manufacture ?
A:Yes,We are factory and exporter in china over 10 years experience，
with CE,ROHS,FCC ISO and 4 patents.
Q2. What is your delivery time?
A:It is in 3-5 working days since the payment confirmed.
If your order is over 2000pcs, we need 10 days
Q3. How is your quality assurance service?
A:All our products have 3 years warranty.
Q4. Could we make a visit to your factory?
A:We warmly welcome you to visit our factory and
make good cooperation with you.
